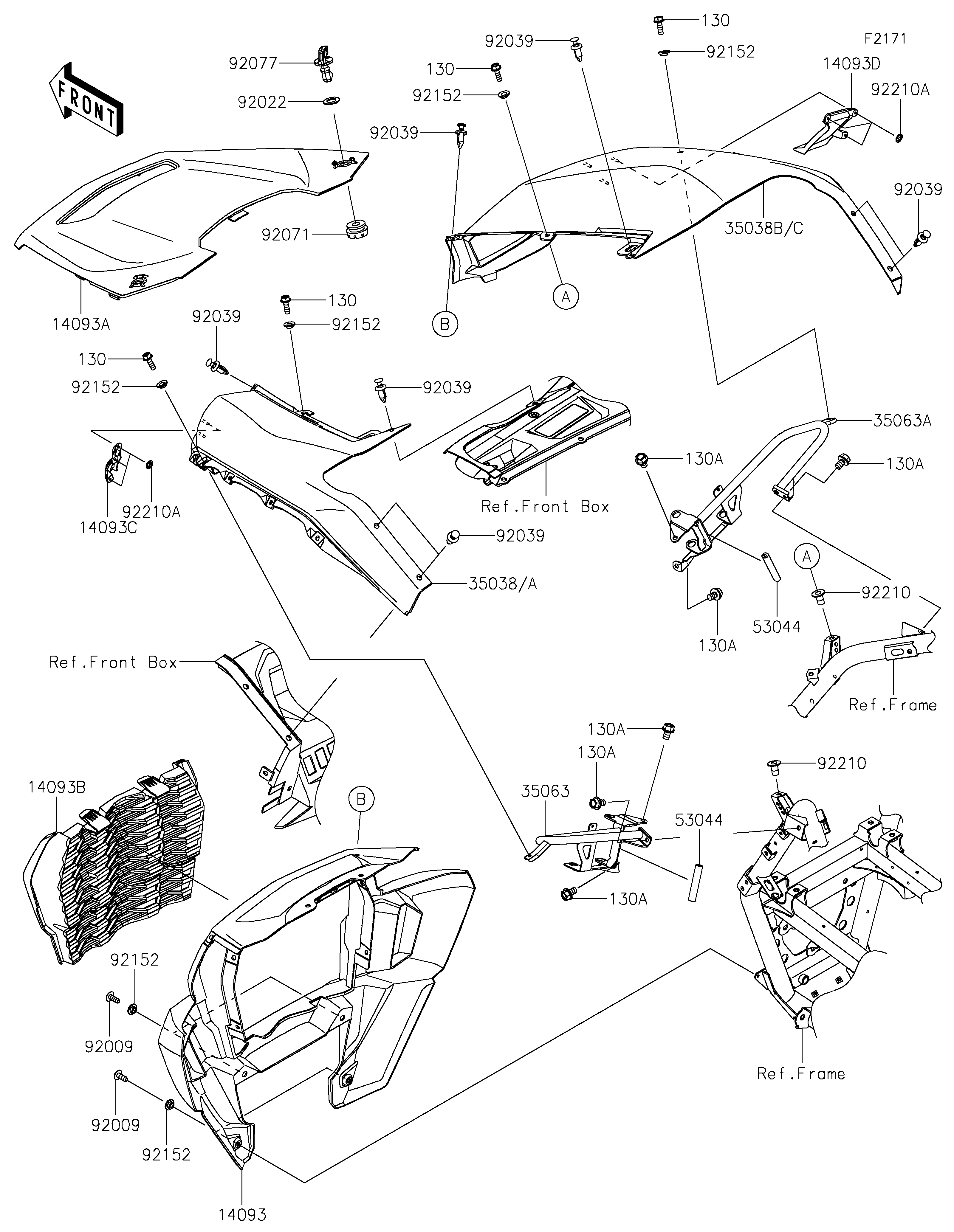

2021 TERYX KRX® 1000 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
14093C
14093D
35038
35038A
35038B
35038C
35063
35063A
53044
53044
92009
92009
92022
92039
92039
92039
92039
92039
92039
92071
92077
92152
92152
92152
92152
92152
92152
92210
92210
92210A
92210A
130
130
130
130
130A
130A
130A
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FR 14093 14093-0804 1
COVER,HOOD,M.O.BLACK 14093A 14093-0805-66E 1
COVER,FR GRILL 14093B 14093-0810 1
COVER,LH 14093C 14093-0958 1
COVER,RH 14093D 14093-0959 1
FENDER-FRONT,LH,L.GREEN 35038 35038-0014-290 1
FENDER-FRONT,LH,V.BLUE 35038A 35038-0014-40D 1
FENDER-FRONT,RH,L.GREEN 35038B 35038-0015-290 1
FENDER-FRONT,RH,V.BLUE 35038C 35038-0015-40D 1
STAY,LH 35063 35063-1464 1
STAY,RH 35063A 35063-1465 1
TRIM,L=50 53044 53044-1277 2
SCREW,TAPPING,6X16 92009 92009-1166 4
WASHER,12.5X22X1.2 92022 92022-072 2
RIVET 92039 92039-0776 8
GROMMET 92071 92071-0746 2
KNOB 92077 92077-0033 2
COLLAR,6.3X9.5X4.1 92152 92152-1571 8
NUT,LARGE FLANGE,6MM,L=16.5 92210 92210-1623 2
NUT 92210A 92210-1796 6
BOLT-FLANGED,6X18 130 130BA0618 4
BOLT-FLANGED,8X12 130A 130BA0812 6
