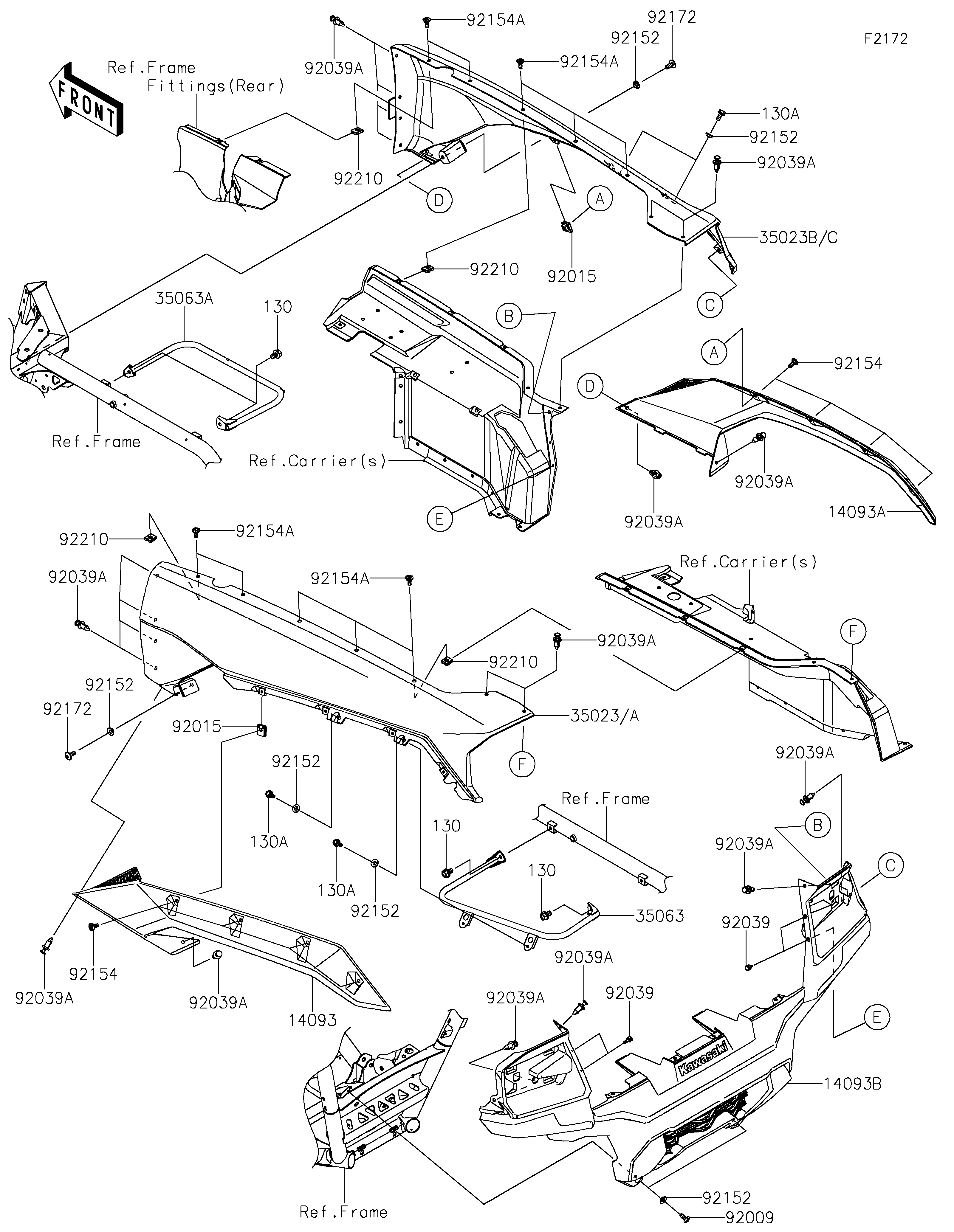

2021 TERYX KRX® 1000 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
35023
35023A
35023B
35023C
35063
35063A
92009
92015
92015
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92152
92152
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92172
92172
92210
92210
92210
92210
130
130
130
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FLAP,LH 14093 14093-0796 1
COVER,FLAP,RH 14093A 14093-0797 1
COVER,TAIL 14093B 14093-0798 1
FENDER-REAR,LH,L.GREEN 35023 35023-0453-290 1
FENDER-REAR,LH,V.BLUE 35023A 35023-0453-40D 1
FENDER-REAR,RH,L.GREEN 35023B 35023-0454-290 1
FENDER-REAR,RH,V.BLUE 35023C 35023-0454-40D 1
STAY,LH 35063 35063-1462 1
STAY,RH 35063A 35063-1463 1
SCREW,TAPPING,6X16 92009 92009-1166 2
NUT,CLAMP,6MM 92015 92015-1678 8
RIVET 92039 92039-0046 4
RIVET 92039A 92039-0776 20
COLLAR,6.3X9.5X4.1 92152 92152-1571 8
BOLT 92154 92154-2474 8
BOLT 92154A 92154-3957 10
SCREW,6X16 92172 92172-0236 2
NUT 92210 92210-1125 10
BOLT-FLANGED,8X12 130 130BA0812 4
BOLT-FLANGED,6X14 130A 130CA0614 4
