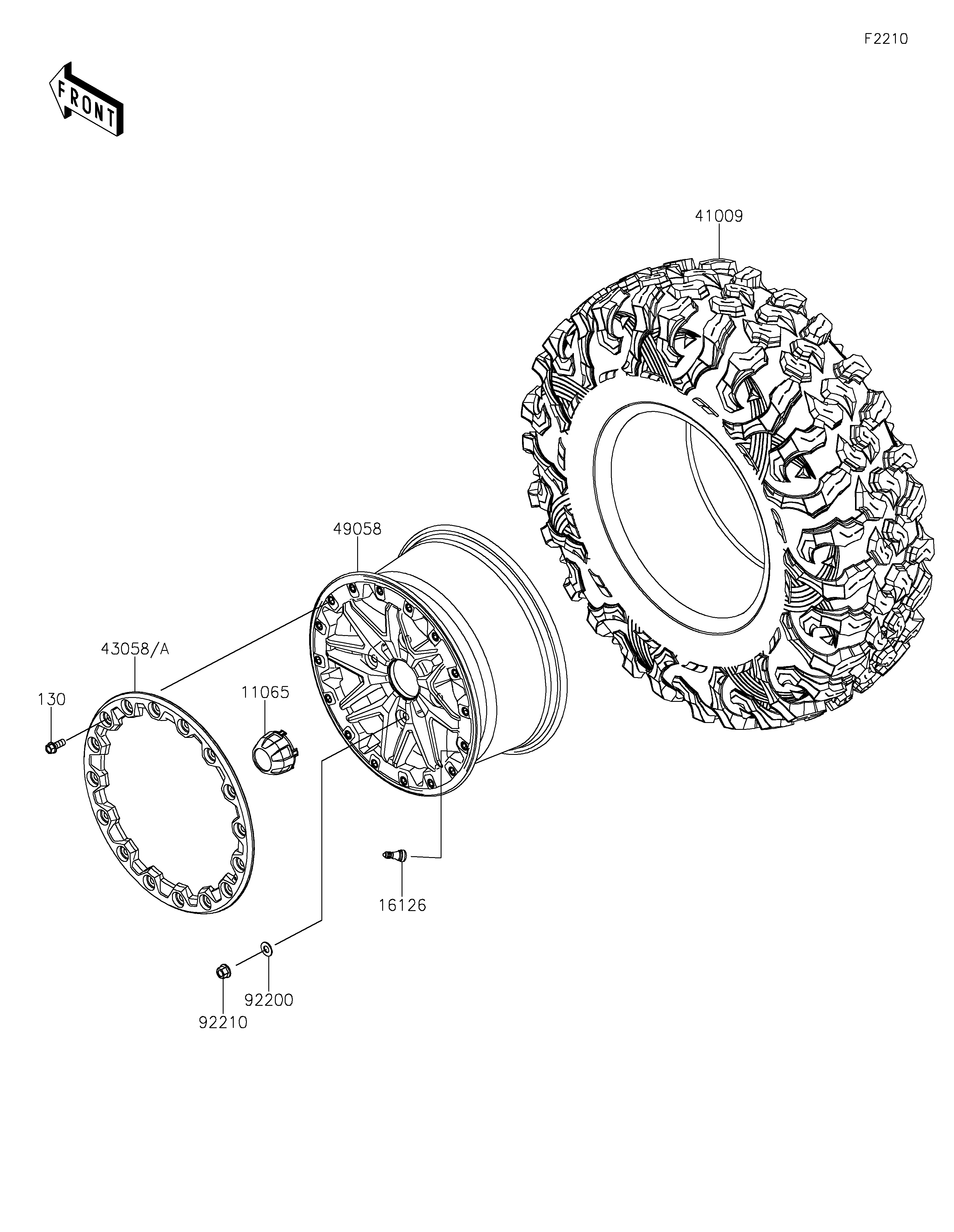

11065
16126
41009
43058
43058A
49058
92200
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11065 11065-1341 4
VALVE 16126 16126-4001 4
TIRE,31X10.00R15 ML1 41009 41009-0817 4
RING,BEADLOCK,L.GREEN 43058 43058-0706-66J 4
RING,BEADLOCK,M.SILVER 43058A 43058-0706-66K 4
WHEEL,F.S.BLACK 49058 49058-0706-397 4
WASHER,12.1X25X1.6 92200 92200-0455 16
NUT,12MM 92210 92210-0603 16
BOLT-FLANGED 130 130CA1025 64
