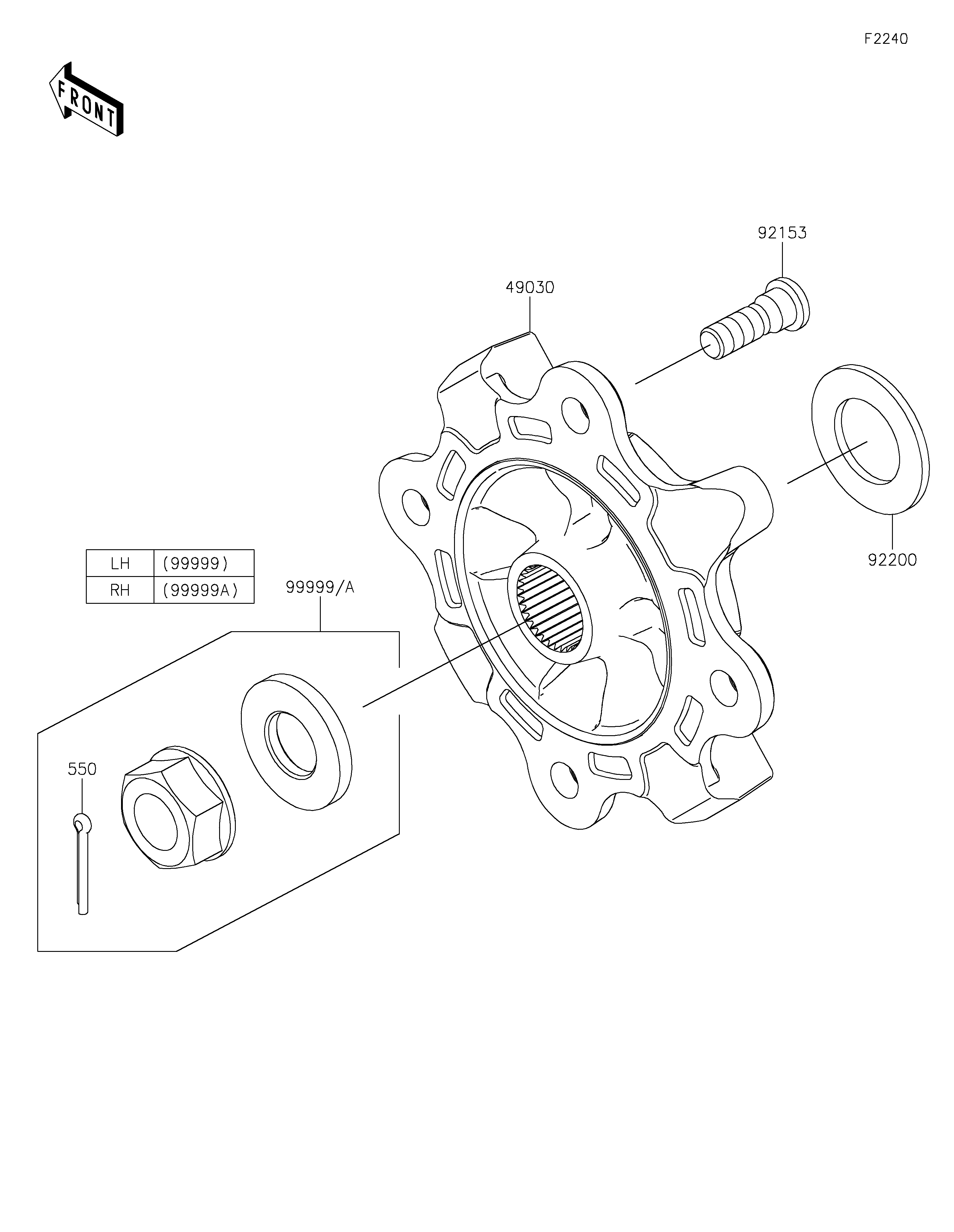

49030
92153
92200
99999
99999A
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB,FR 49030 49030-0566 2
BOLT,12MM 92153 92153-1915 8
WASHER,33X56X3.5 92200 92200-2332 2
KIT,RR(LH) AXLE NUT 99999 99999-0726 1
KIT,RR(RH) AXLE NUT 99999A 99999-0727 1
PIN-COTTER,4.0X30 550 550AA4030 2
