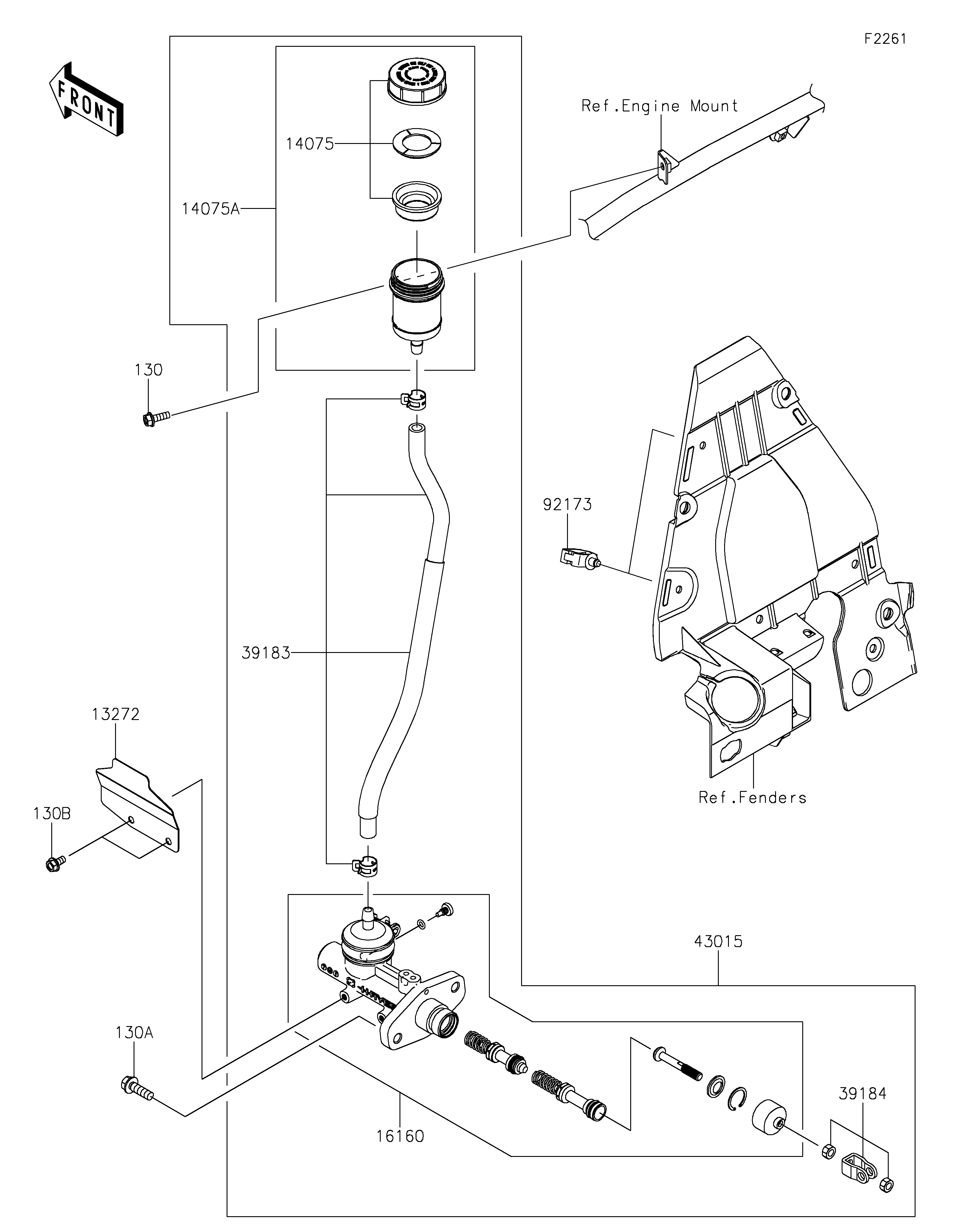

13272
14075
14075A
16160
39183
39184
43015
92173
130
130A
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,MASTER CYLINDER 13272 13272-2632 1
CAP-ASSY 14075 14075-0038 1
CAP-ASSY,RESERVOIR 14075A 14075-0712 1
BODY,MASTER CYLINDRER 16160 16160-0832 1
BAND-ASSY,RESERVOIR HOSE 39183 39183-0008 1
BRACKET-ASSY 39184 39184-0031 1
CYLINDER-ASSY-MASTER 43015 43015-0753 1
CLAMP 92173 92173-0861 2
BOLT-FLANGED,6X18 130 130BA0618 1
BOLT-FLANGED,8X25 130A 130BA0825 2
BOLT-FLANGED,6X12 130B 130CA0612 2
