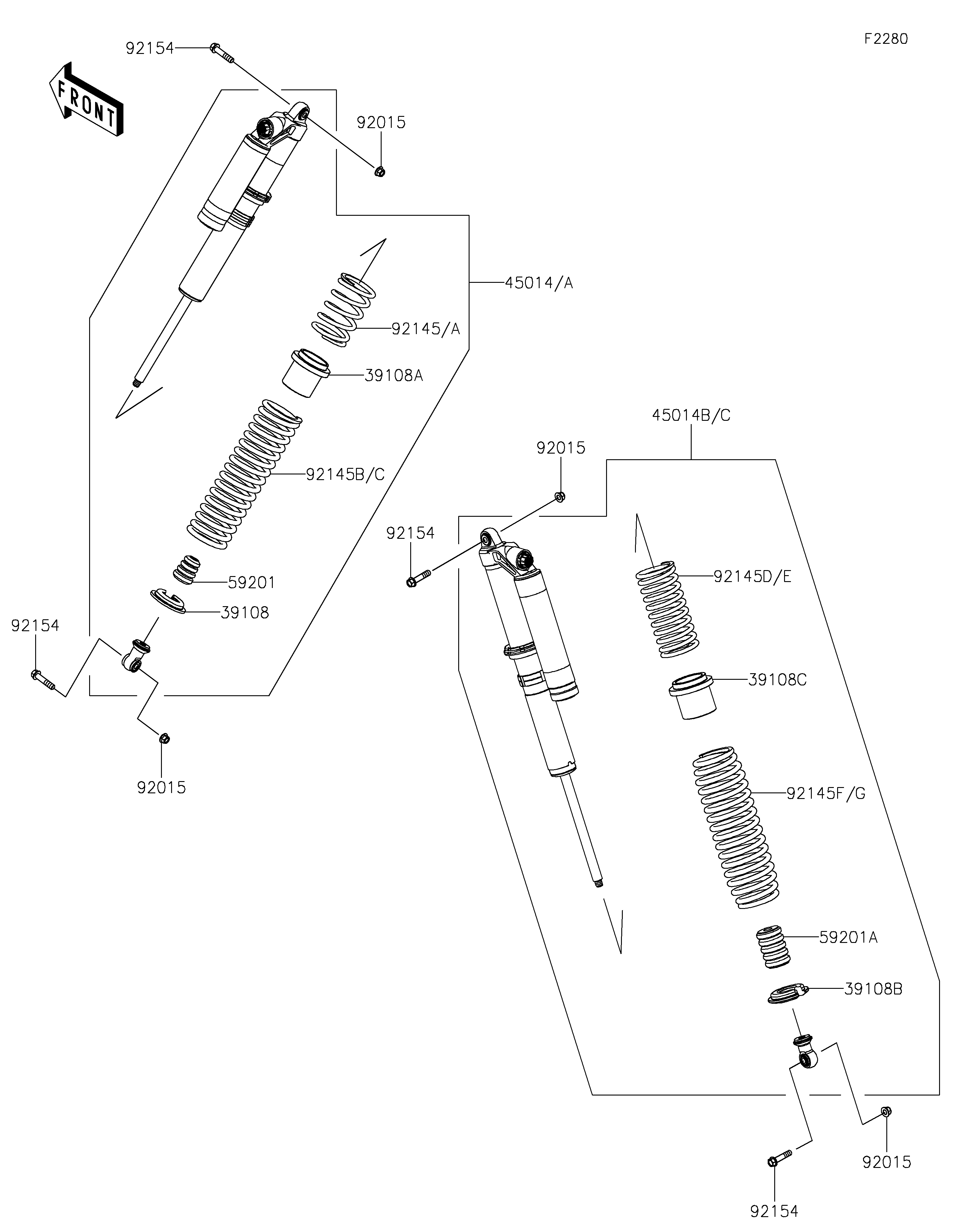

2021 TERYX KRX® 1000 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
39108
39108A
39108B
39108C
45014
45014A
45014B
45014C
59201
59201A
92015
92015
92015
92015
92145
92145A
92145B
92145C
92145D
92145E
92145F
92145G
92154
92154
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER-SPRING 39108 39108-0015 2
RETAINER-SPRING 39108A 39108-0016 2
RETAINER-SPRING 39108B 39108-0017 2
RETAINER-SPRING 39108C 39108-0018 2
SHOCKABSORBER,FR,SILVER 45014 45014-0627-42P 2
SHOCKABSORBER,FR,L.GREEN 45014A 45014-0627-66G 2
SHOCKABSORBER,RR,SILVER 45014B 45014-0628-42P 2
SHOCKABSORBER,RR,L.GREEN 45014C 45014-0628-66G 2
BUMPER 59201 59201-0004 2
BUMPER 59201A 59201-0005 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
SPRING,TENDER,SILVER 92145 92145-1952-42P 2
SPRING,TENDER,L.GREEN 92145A 92145-1952-66G 2
SPRING,MAIN,SILVER 92145B 92145-1953-42P 2
SPRING,MAIN,L.GREEN 92145C 92145-1953-66G 2
SPRING,TENDER,SILVER 92145D 92145-1954-42P 2
SPRING,TENDER,L.GREEN 92145E 92145-1954-66G 2
SPRING,MAIN,SILVER 92145F 92145-1955-42P 2
SPRING,MAIN,L.GREEN 92145G 92145-1955-66G 2
BOLT,FLANGED,12X55 92154 92154-0289 8
