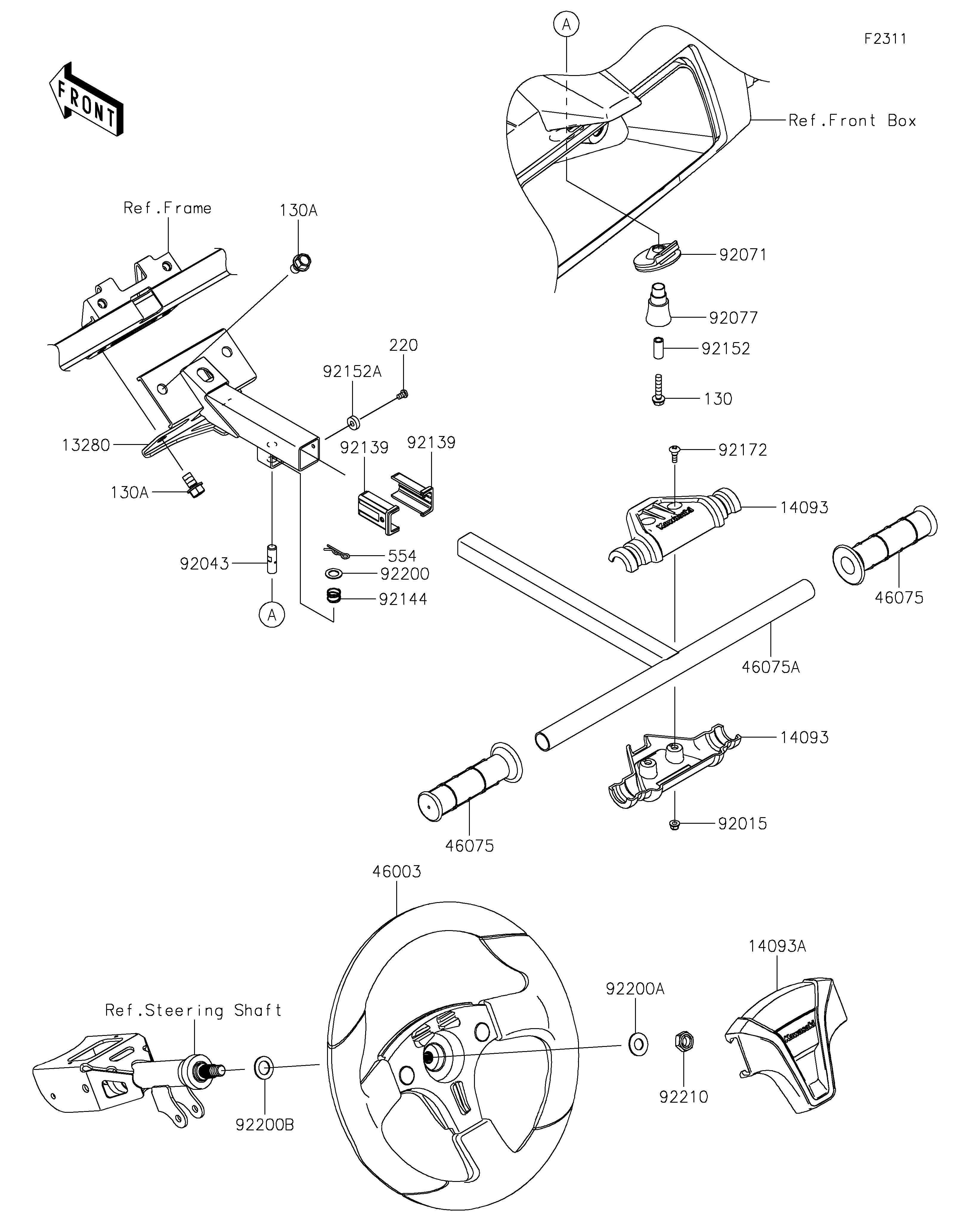

2021 TERYX KRX® 1000 - Steering Wheel

DOWNLOAD PDF
SELECT A NEW PART
13280
14093
14093
14093A
46003
46075
46075
46075A
92015
92043
92071
92077
92139
92139
92144
92152
92152A
92172
92200
92200A
92200B
92210
130
130A
130A
220
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,PASSENGER GRIP 13280 13280-0940 1
COVER,PASSENGER GRIP 14093 14093-0802 2
COVER,HANDLE 14093A 14093-0803 1
HANDLE 46003 46003-0769 1
GRIP 46075 46075-0065 2
GRIP,PIPE 46075A 46075-0637 1
NUT,LOCK,FLANGED,5MM 92015 92015-1752 2
PIN 92043 92043-1734 1
GROMMET 92071 92071-0796 1
KNOB 92077 92077-0039 1
BUSHING 92139 92139-0971 2
SPRING,ROCKER ARM,SHORT 92144 92144-1255 1
COLLAR,6.2X10X22.2 92152 92152-2552 1
COLLAR,5.7X14.5X4.55 92152A 92152-2608 1
SCREW,5MM 92172 92172-0261 2
WASHER,11X18X1 92200 92200-0324 1
WASHER,12.1X25X1.6 92200A 92200-0455 1
WASHER,15X25X1.6 92200B 92200-0460 1
NUT,LOCK,12MM 92210 92210-1249 1
BOLT-FLANGED,6X30 130 130CA0630 1
BOLT-FLANGED,10X16 130A 130CA1016 4
SCREW-PAN-CROS,5X8 220 220AA0508 1
PIN-SNAP,10MM 554 554DA1000 1
