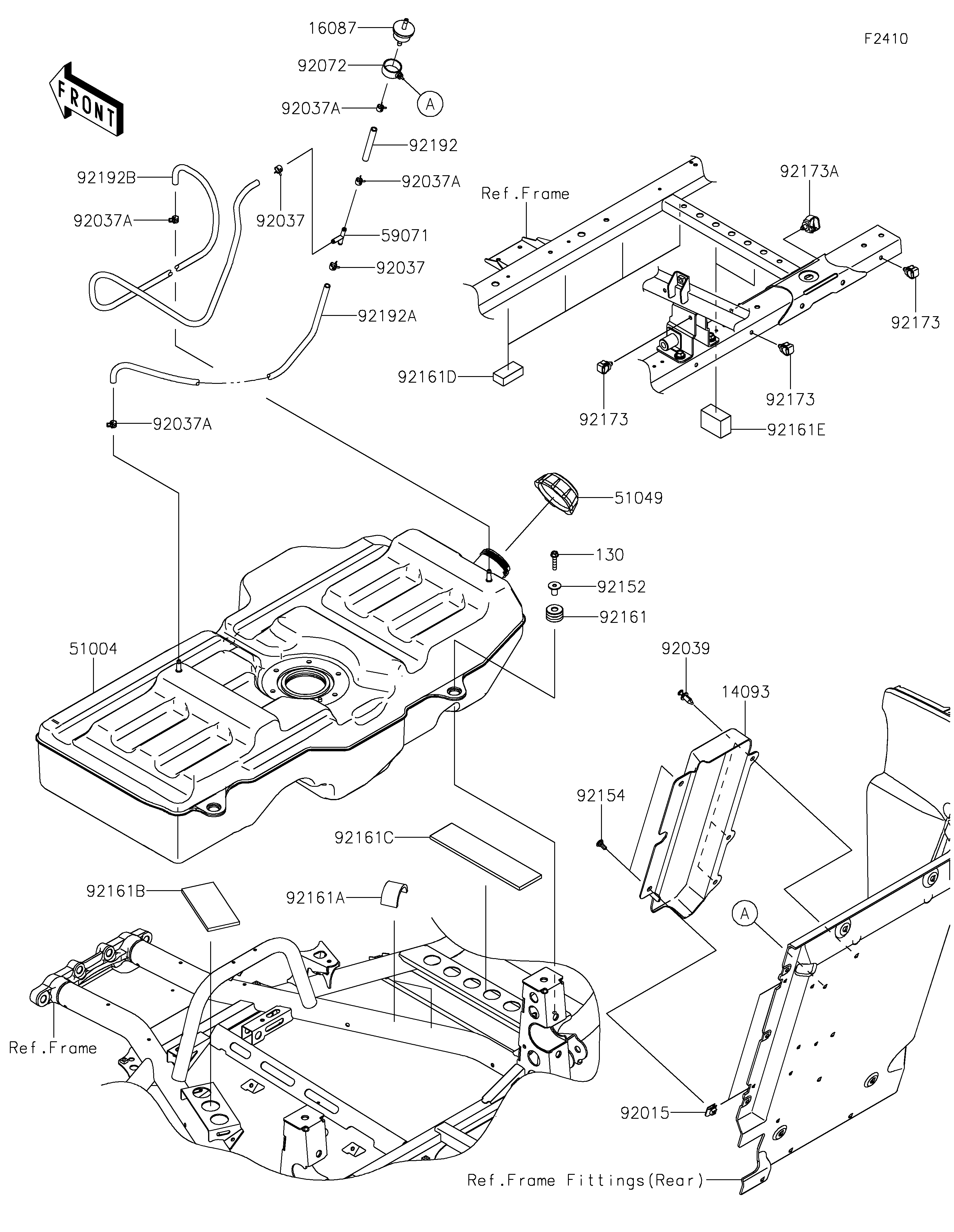

2021 TERYX KRX® 1000 - Fuel Tank(CA)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093
16087
16087
51004
51004
51049
51049
59071
59071
92015
92015
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92039
92039
92072
92072
92152
92152
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92173
92173
92173
92173
92173
92173
92173A
92173A
92192
92192
92192A
92192A
92192B
92192B
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,BREATHER PIPE 14093 14093-0987 1 CA
VALVE-CHECK 16087 16087-0011 1 CA
TANK-FUEL 51004 51004-0031 1 CA
CAP-TANK,FUEL 51049 51049-0718 1 CA
JOINT 59071 59071-3705 1 CA
NUT,CLAMP,6MM 92015 92015-1678 2 CA
CLAMP,TUBE 92037 92037-1461 2 CA
CLAMP 92037A 92037-2113 4 CA
RIVET 92039 92039-0776 3 CA
BAND 92072 92072-0852 1 CA
COLLAR,6.8X10X18.1 92152 92152-1867 3 CA
BOLT 92154 92154-3957 2 CA
DAMPER,TANK 92161 92161-2178 3 CA
DAMPER,TANK FRAME PIPE 92161A 92161-2179 2 CA
DAMPER,TANK LH LOWER 92161B 92161-2180 1 CA
DAMPER,TANK LOWER 92161C 92161-2253 1 CA
DAMPER,TANK & SEAT FRAME 92161D 92161-2275 4 CA
DAMPER,TANK & SEAT FRAME 92161E 92161-2288 2 CA
CLAMP,12MM DIA. 92173 92173-0736 3 CA
CLAMP 92173A 92173-0861 1 CA
TUBE,5X10.4X80 92192 92192-1149 1 CA
TUBE,5X10X1020 92192A 92192-2239 1 CA
TUBE,5X10X1380 92192B 92192-2352 1 CA
BOLT-FLANGED,6X30 130 130BA0630 3 CA
