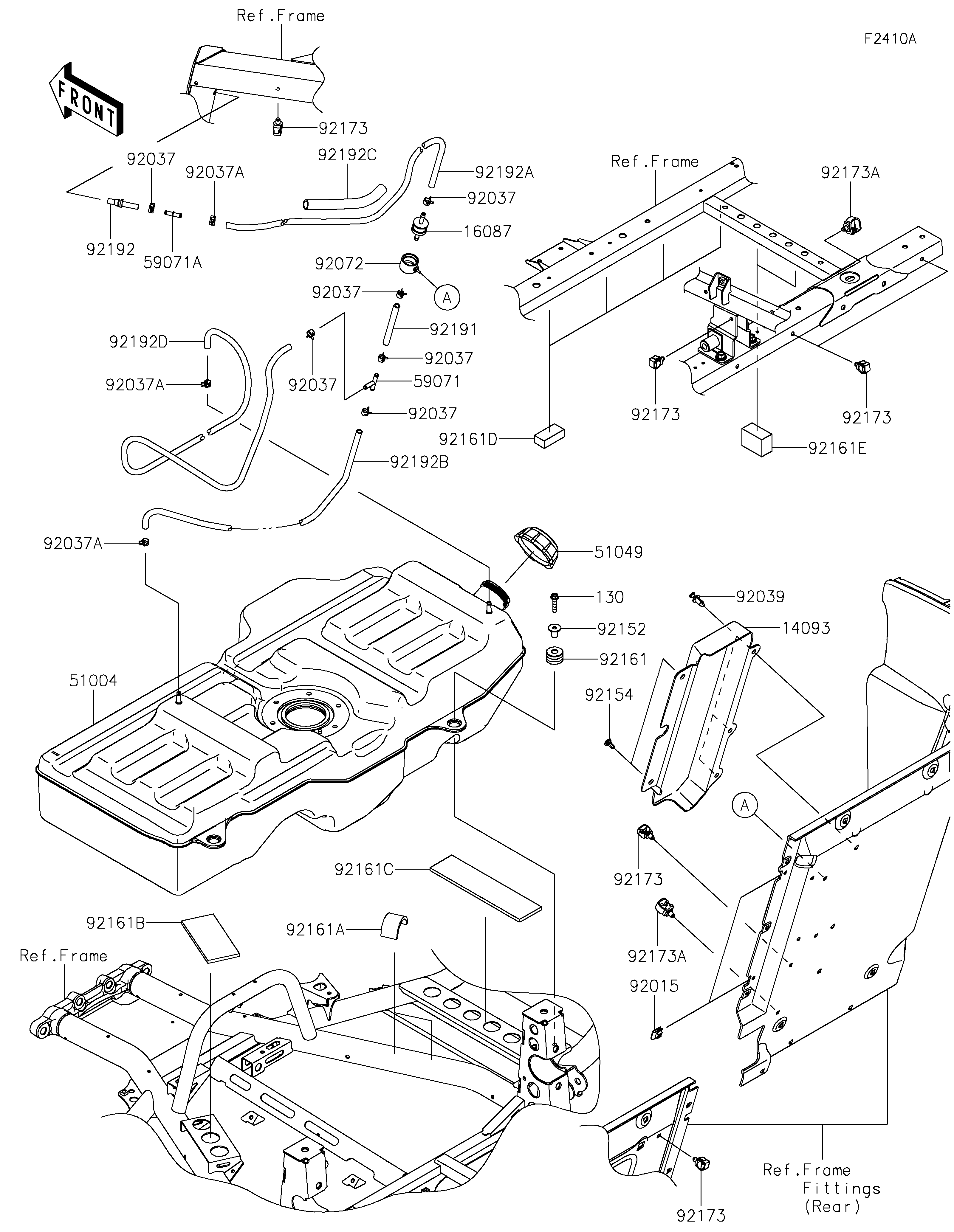

2021 TERYX KRX® 1000 - Fuel Tank(CN,US)
14093
14093
16087
16087
51004
51004
51049
51049
59071
59071
59071A
59071A
92015
92015
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92039
92039
92072
92072
92152
92152
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
92161D
92161D
92161E
92161E
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92191
92191
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,BREATHER PIPE | 14093 | 14093-0987 | 1 | CN,US | |
| VALVE-CHECK | 16087 | 16087-0008 | 1 | CN,US | |
| TANK-FUEL | 51004 | 51004-0031 | 1 | CN,US | |
| CAP-TANK,FUEL | 51049 | 51049-0718 | 1 | CN,US | |
| JOINT | 59071 | 59071-3705 | 1 | CN,US | |
| JOINT | 59071A | 59071-3717 | 1 | CN,US | |
| NUT,CLAMP,6MM | 92015 | 92015-1678 | 2 | CN,US | |
| CLAMP,TUBE | 92037 | 92037-1461 | 6 | CN,US | |
| CLAMP | 92037A | 92037-2113 | 3 | CN,US | |
| RIVET | 92039 | 92039-0776 | 3 | CN,US | |
| BAND | 92072 | 92072-0850 | 1 | CN,US | |
| COLLAR,6.8X10X18.1 | 92152 | 92152-1867 | 3 | CN,US | |
| BOLT | 92154 | 92154-3957 | 2 | CN,US | |
| DAMPER,TANK | 92161 | 92161-2178 | 3 | CN,US | |
| DAMPER,TANK FRAME PIPE | 92161A | 92161-2179 | 2 | CN,US | |
| DAMPER,TANK LH LOWER | 92161B | 92161-2180 | 1 | CN,US | |
| DAMPER,TANK LOWER | 92161C | 92161-2253 | 1 | CN,US | |
| DAMPER,TANK & SEAT FRAME | 92161D | 92161-2275 | 4 | CN,US | |
| DAMPER,TANK & SEAT FRAME | 92161E | 92161-2288 | 2 | CN,US | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 6 | CN,US | |
| CLAMP | 92173A | 92173-0861 | 2 | CN,US | |
| TUBE,5X9X100 | 92191 | 92191-1792 | 1 | CN,US | |
| TUBE,FRAME PIPE-CHECK VALVE | 92192 | 92192-0068 | 1 | CN,US | |
| TUBE,5X11X870 | 92192A | 92192-1948 | 1 | CN,US | |
| TUBE,5X11X1020 | 92192B | 92192-1994 | 1 | CN,US | |
| TUBE,CONVOLUTED,13.2X17.5X160 | 92192C | 92192-2294 | 1 | CN,US | |
| TUBE,5X11X1380 | 92192D | 92192-2351 | 1 | CN,US | |
| BOLT-FLANGED,6X30 | 130 | 130BA0630 | 3 | CN,US |
| COVER,BREATHER PIPE | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| VALVE-CHECK | |
| REF # | 16087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TANK-FUEL | |
| REF # | 51004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| JOINT | |
| REF # | 59071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CN,US |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN,US |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN,US |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| COLLAR,6.8X10X18.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN,US |
| REMARKS | |
| BOLT | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK FRAME PIPE | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK LH LOWER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK LOWER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK & SEAT FRAME | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN,US |
| REMARKS | |
| DAMPER,TANK & SEAT FRAME | |
| REF # | 92161E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CN,US |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,5X9X100 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,FRAME PIPE-CHECK VALVE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,5X11X870 | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,5X11X1020 | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,CONVOLUTED,13.2X17.5X160 | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| TUBE,5X11X1380 | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN,US |
| REMARKS | |
