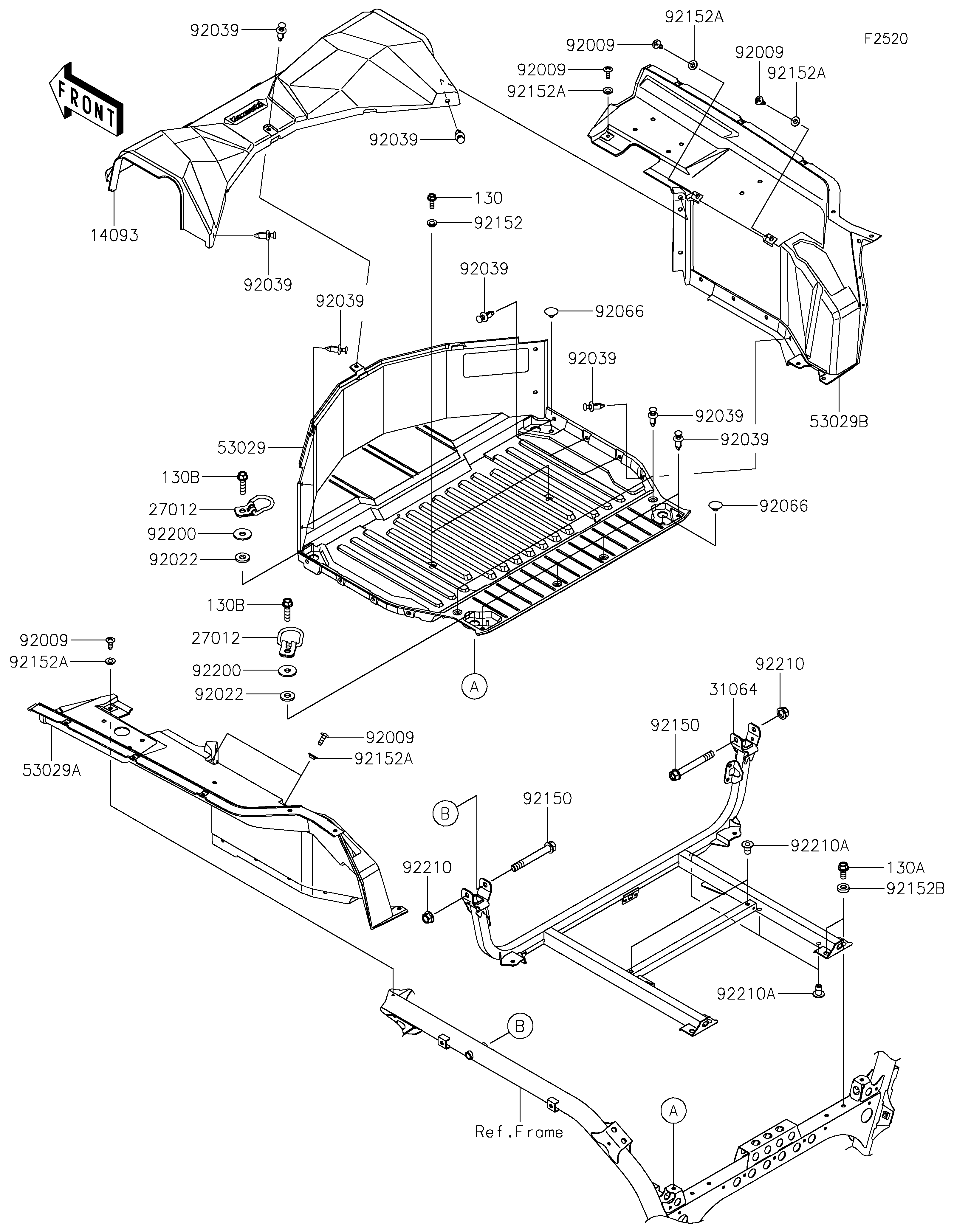

2021 TERYX KRX® 1000 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
27012
27012
31064
53029
53029A
53029B
92009
92009
92009
92009
92009
92022
92022
92039
92039
92039
92039
92039
92039
92039
92039
92066
92066
92150
92150
92152
92152A
92152A
92152A
92152A
92152A
92152B
92200
92200
92210
92210
92210A
92210A
130
130A
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,MAINTENANCE 14093 14093-0799 1
HOOK 27012 27012-0863 4
PIPE-COMP,RR CARRIER FRAME 31064 31064-0716 1
CARRIER,BASE 53029 53029-0359 1
CARRIER,LH 53029A 53029-0360 1
CARRIER,RH 53029B 53029-0361 1
SCREW,TAPPING,6X16 92009 92009-1166 6
WASHER,10X22X3.2 92022 92022-1944 4
RIVET 92039 92039-0776 21
PLUG 92066 92066-1485 2
BOLT,10X80 92150 92150-1893 2
COLLAR 92152 92152-0224 2
COLLAR,6.3X9.5X4.1 92152A 92152-1571 6
COLLAR,8.2X18X5 92152B 92152-1848 4
WASHER,9X28X2.3 92200 92200-1951 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 2
NUT,LARGE FLANGE,6MM,L=16.5 92210A 92210-1623 5
BOLT-FLANGED,6X18 130 130CA0618 2
BOLT-FLANGED,8X18 130A 130CA0818 4
BOLT-FLANGED,8X30 130B 130CA0830 4
