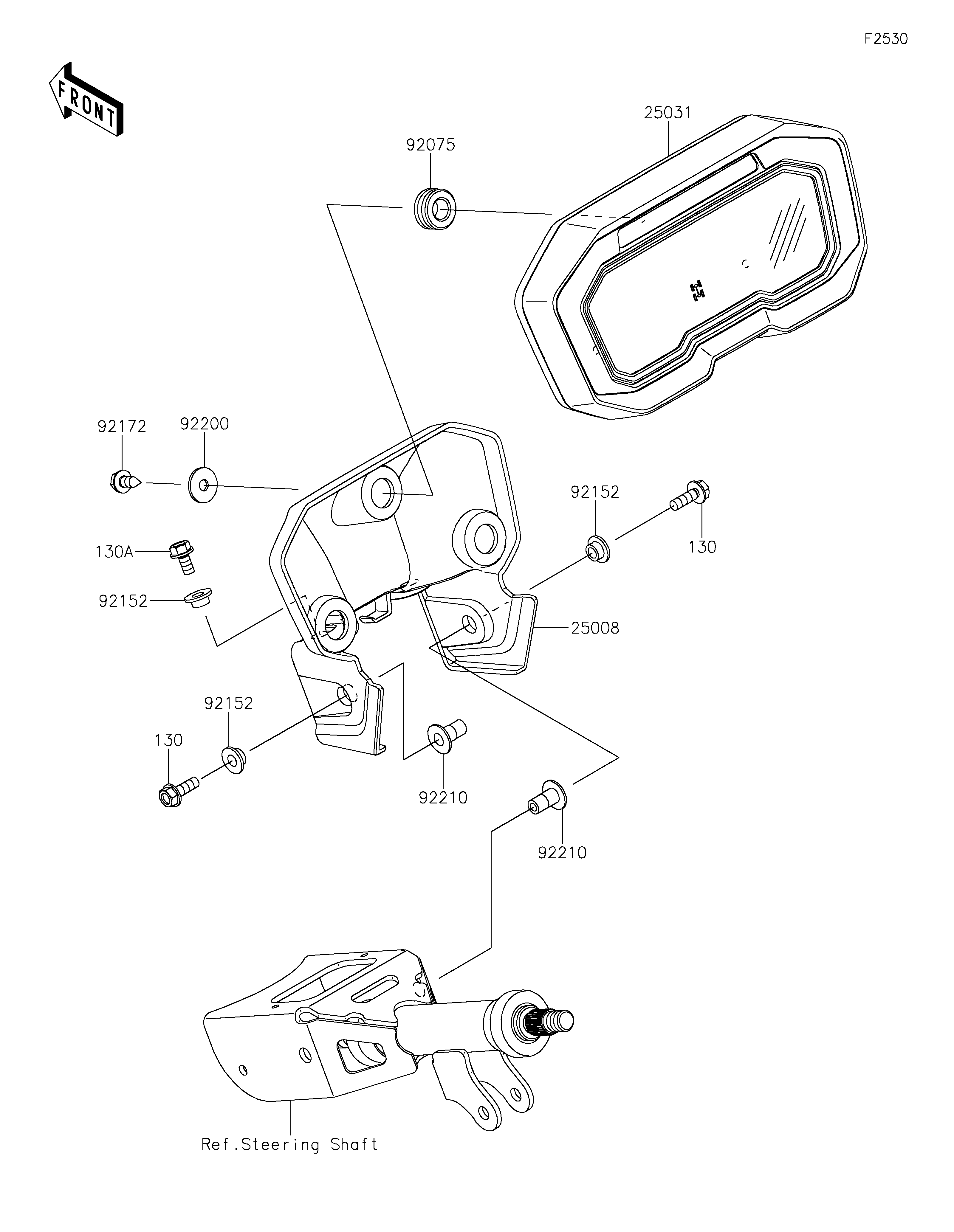

25008
25031
92075
92152
92152
92152
92172
92200
92210
92210
130
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-METER 25008 25008-0049 1
METER-ASSY,LCD 25031 25031-0941 1
DAMPER 92075 92075-1898 3
COLLAR,6.5X10X6.2 92152 92152-1511 4
SCREW,TAPPING,6X16 92172 92172-1313 3
WASHER,6.5X20X1.6 92200 92200-0283 3
NUT,METER BKT SIDE 92210 92210-1760 2
BOLT-FLANGED,6X18 130 130BA0618 2
BOLT-FLANGED,6X12 130A 130CA0612 2
