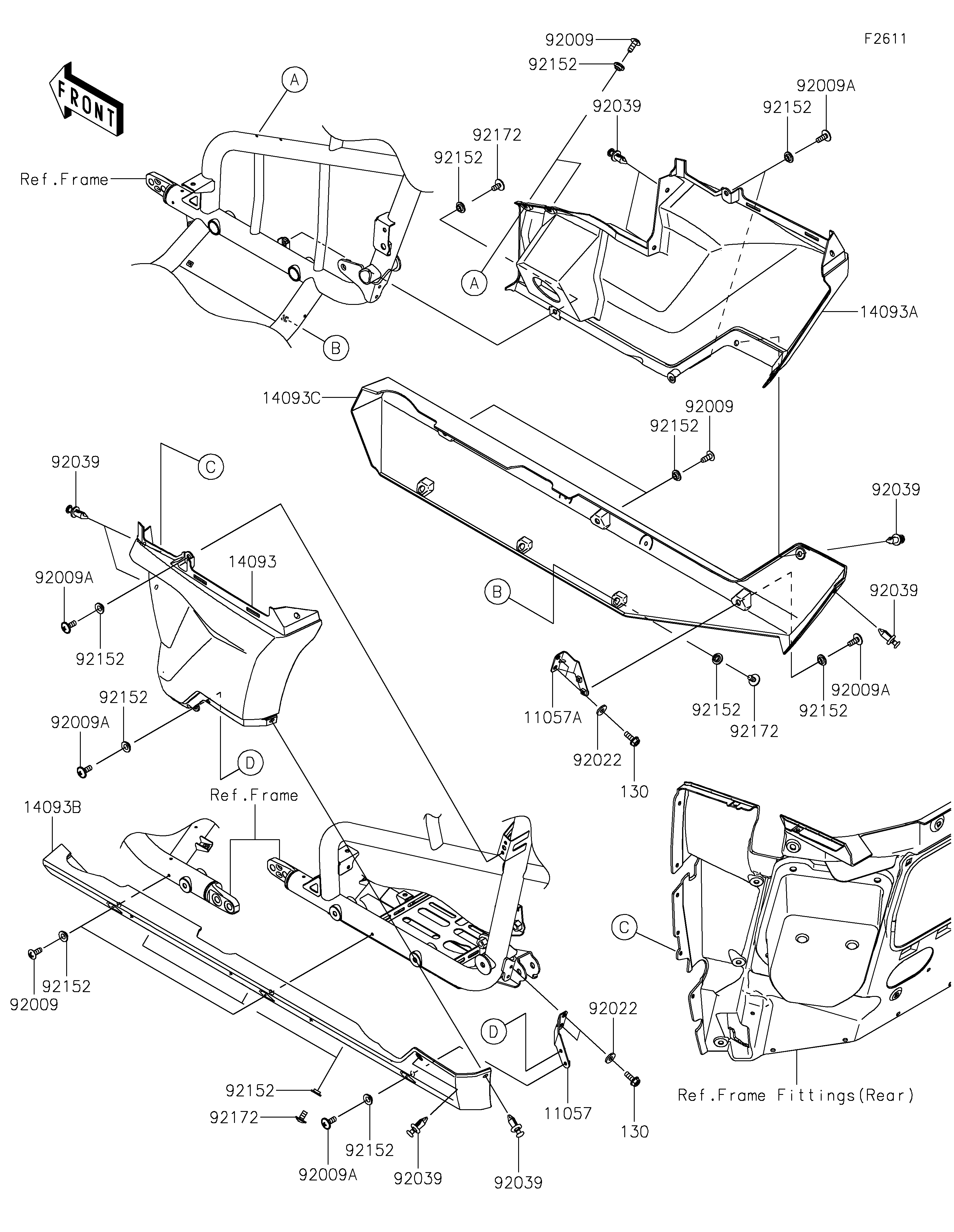

Parts Diagrams |
11057
11057A
14093
14093A
14093B
14093C
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92022
92022
92039
92039
92039
92039
92039
92039
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92152
92172
92172
92172
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SIDE COVER,LH | 11057 | 11057-4181 | 1 | ||
| BRACKET,SIDE COVER,RH | 11057A | 11057-4182 | 1 | ||
| COVER,SIDE,RR,LH | 14093 | 14093-0825 | 1 | ||
| COVER,SIDE,RR,RH | 14093A | 14093-0826 | 1 | ||
| COVER,SIDE,LWR,LH | 14093B | 14093-0827 | 1 | ||
| COVER,SIDE,LWR,RH | 14093C | 14093-0828 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 6 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 6 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 4 | ||
| RIVET | 92039 | 92039-0776 | 8 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 19 | ||
| SCREW,6X12 | 92172 | 92172-0853 | 7 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 4 |
| BRACKET,SIDE COVER,LH | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SIDE COVER,RH | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RR,LH | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RR,RH | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LWR,LH | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LWR,RH | |
| REF # | 14093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
