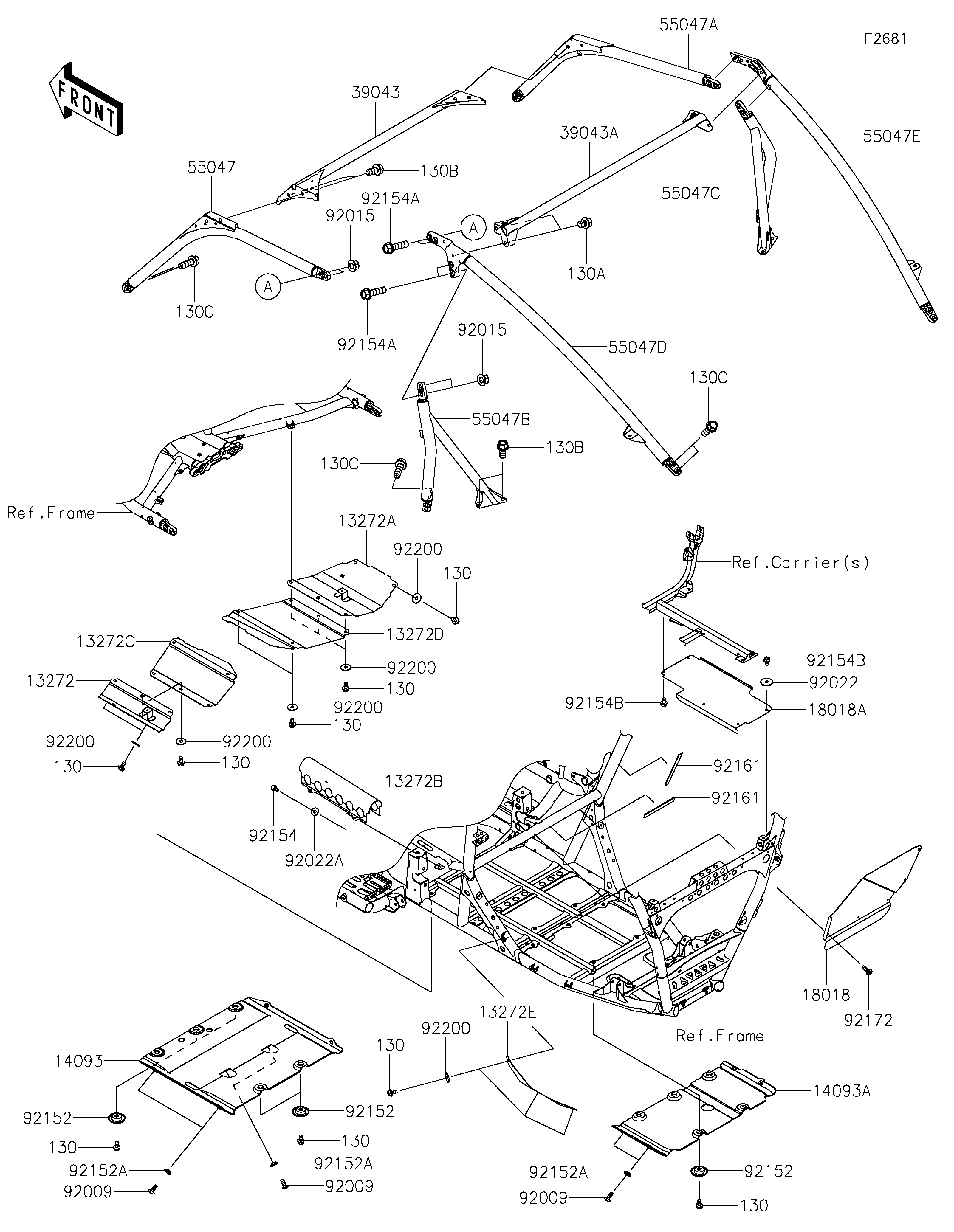

2021 TERYX KRX® 1000 - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
13272B
13272C
13272D
13272E
14093
14093A
18018
18018A
39043
39043A
55047
55047A
55047B
55047C
55047D
55047E
92009
92009
92009
92015
92015
92022
92022A
92152
92152
92152
92152A
92152A
92152A
92154
92154A
92154A
92154B
92154B
92161
92161
92172
92200
92200
92200
92200
92200
92200
130
130
130
130
130
130
130
130
130
130A
130B
130B
130C
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,SKID,FR,LH 13272 13272-2638 1
PLATE,SKID,FR,RH 13272A 13272-2639 1
PLATE,DRIVE SHAFT 13272B 13272-2642 1
PLATE,SKID,FR,CNT,LH 13272C 13272-2737 1
PLATE,SKID,FR,CNT,RH 13272D 13272-2738 1
PLATE,CVT COVER 13272E 13272-3797 1
COVER,SKID,CNT 14093 14093-0811 1
COVER,SKID,RR 14093A 14093-0877 1
PLATE-HEAT GUARD 18018 18018-0616 1
PLATE-HEAT GUARD 18018A 18018-0617 1
CROSSMEMBER-COMP,FR,T.BLACK 39043 39043-0031-388 1
CROSSMEMBER-COMP,RR,T.BLACK 39043A 39043-0032-388 1
BAR-COMP,A-PILLAR,LH,T.BLACK 55047 55047-0378-388 1
BAR-COMP,A-PILLAR,RH,T.BLACK 55047A 55047-0379-388 1
BAR-COMP,B-PILLAR,LH,T.BLACK 55047B 55047-0380-388 1
BAR-COMP,B-PILLAR,RH,T.BLACK 55047C 55047-0381-388 1
BAR-COMP,C-PILLAR,LH,T.BLACK 55047D 55047-0382-388 1
BAR-COMP,C-PILLAR,RH,T.BLACK 55047E 55047-0383-388 1
SCREW,TAPPING,6X16 92009 92009-1166 10
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
WASHER,6.5X24X2 92022 92022-1690 1
WASHER 92022A 92022-2247 4
COLLAR 92152 92152-0784 10
COLLAR,6.3X9.5X4.1 92152A 92152-1571 10
BOLT,FLANGED,6X12 92154 92154-2922 4
BOLT,FLANGED,12X45 92154A 92154-4096 8
BOLT,FLANGED,6X10 92154B 92154-4159 5
DAMPER,10X85X1 92161 92161-1964 3
SCREW,TAPPING,6X16 92172 92172-0869 5
WASHER,6.5X20X1.6 92200 92200-0283 17
BOLT-FLANGED,6X12 130 130CA0612 27
BOLT-FLANGED,12X16 130A 130CA1216 4
BOLT-FLANGED,12X25 130B 130CA1225 8
BOLT-FLANGED,12X35 130C 130CA1235 12
