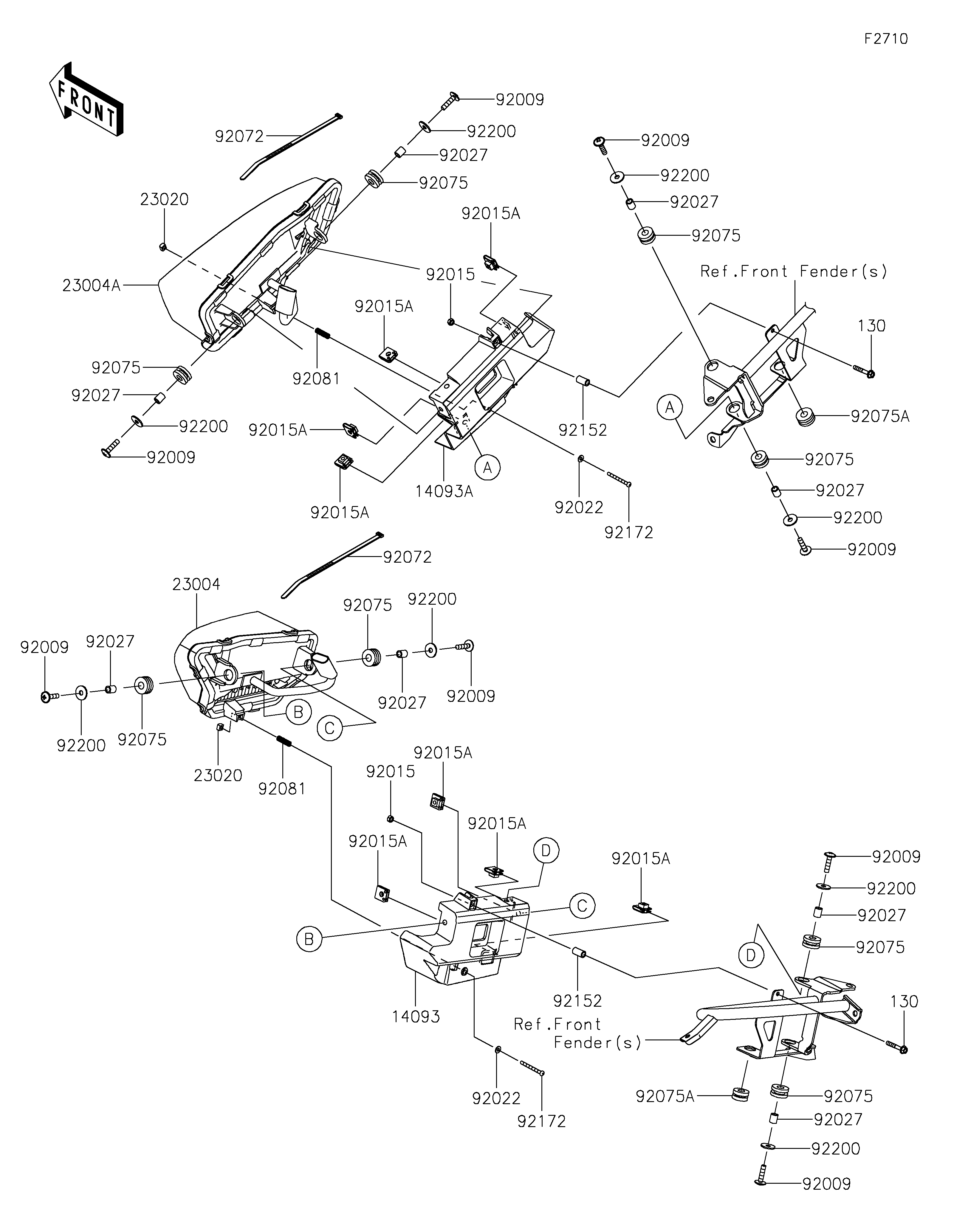

2021 TERYX KRX® 1000 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
23004
23004A
23020
23020
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92027
92027
92027
92027
92027
92027
92027
92027
92072
92072
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92081
92081
92152
92152
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HEAD LAMP,LH 14093 14093-0868 1
COVER,HEAD LAMP,RH 14093A 14093-0869 1
LAMP-HEAD,LH,LED 23004 23004-0392 1
LAMP-HEAD,RH,LED 23004A 23004-0393 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
SCREW,6X25 92009 92009-1465 8
NUT,LOCK,5MM 92015 92015-1221 2
NUT,CLAMP,6MM 92015A 92015-1678 8
WASHER 92022 92022-563 2
COLLAR,6.8X10X12 92027 92027-162 8
BAND,L=292.1 92072 92072-3509 2
DAMPER,10X24X12 92075 92075-1690 8
DAMPER 92075A 92075-209 2
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR,6.2X9.5X17 92152 92152-2693 2
SCREW,4X40 92172 92172-1092 2
WASHER,6.5X20X1.6 92200 92200-0283 8
BOLT-FLANGED,5X30 130 130BA0530 2
