23024
23024
92152
92152
92210
92210
130
130

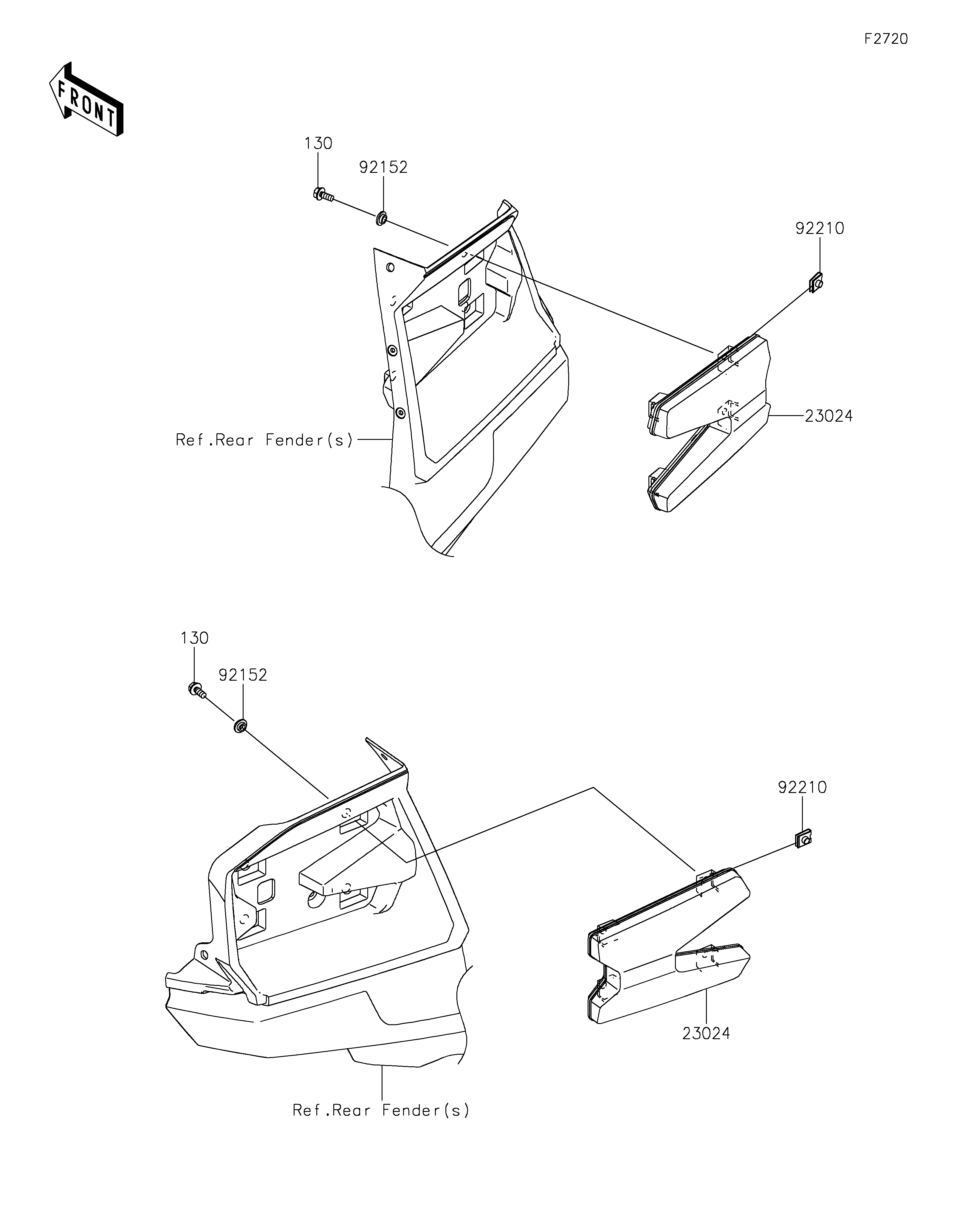

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY-TAIL,LED 23024 23024-0005 2
COLLAR,6.3X9.5X4.1 92152 92152-1571 8
NUT 92210 92210-1125 8
BOLT-FLANGED,6X14 130 130BA0614 8
