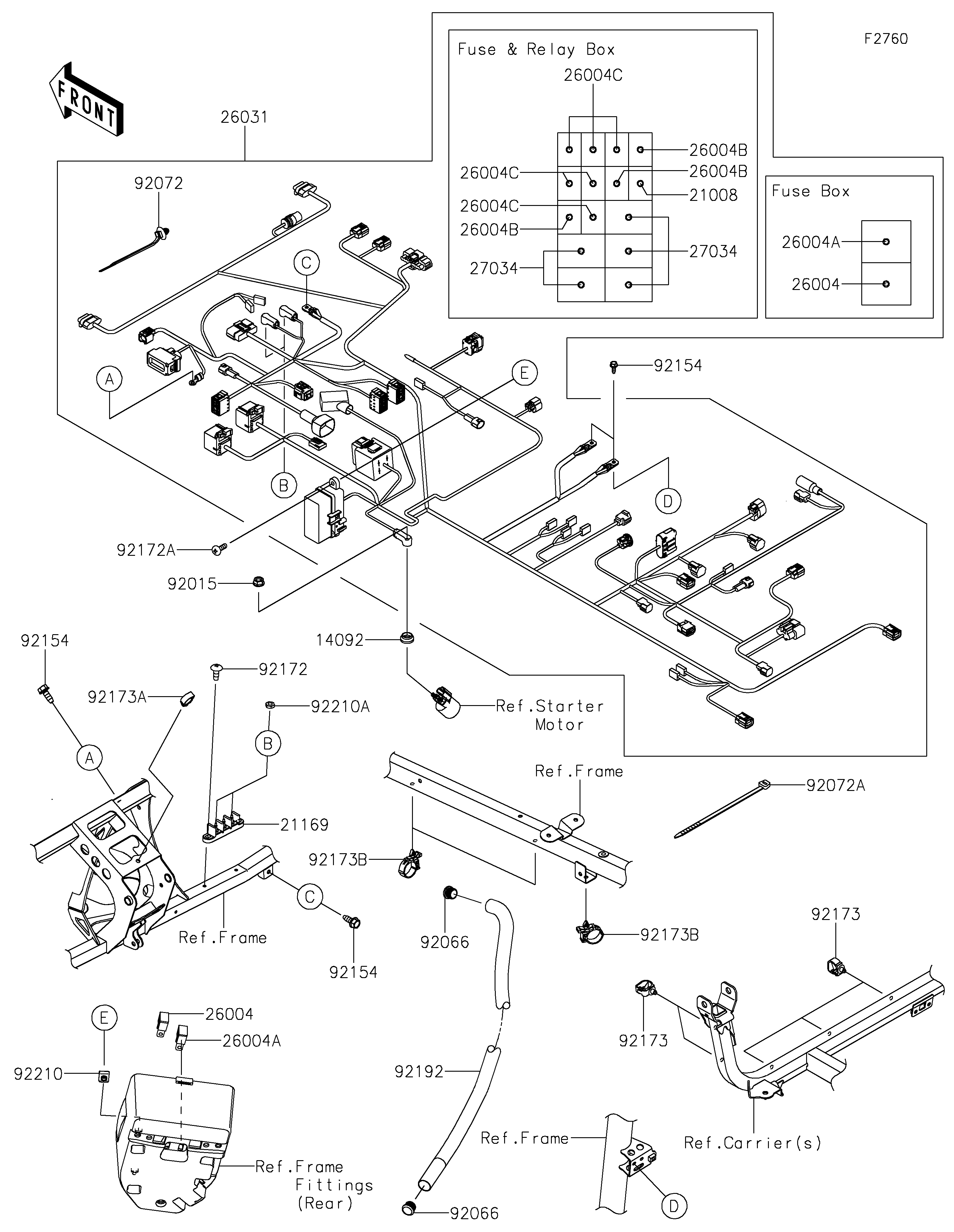

2021 TERYX KRX® 1000 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
14092
21008
21169
26004
26004
26004A
26004A
26004B
26004B
26004B
26004C
26004C
26004C
26031
26031A
27034
27034
92015
92066
92066
92072
92072A
92154
92154
92154
92172
92172A
92173
92173
92173A
92173B
92173B
92192
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,MAGNETIC SW. 14092 14092-0851 1
BREAKER 21008 21008-0012 1
TERMINAL 21169 21169-0571 1
FUSE-ASSY,SLOW-BLOW,60A 26004 26004-0029 2
FUSE-ASSY,SLOW-BLOW,70A 26004A 26004-0030 2
FUSE-ASSY,20A 26004B 26004-0033 3
FUSE-ASSY,10A 26004C 26004-0034 6
HARNESS,MAIN 26031 26031-2958 1 ( - JKARFCA1 MB511898)
HARNESS,MAIN 26031A 26031-3769 1 (JKARFCA1 MB511899 - )
RELAY 27034 27034-0013 5
NUT,FLANGED,6MM 92015 92015-1367 1
PLUG 92066 92066-0908 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BAND,L=292.1 92072A 92072-3509 3
BOLT,FLANGED,6X16 92154 92154-0551 4
SCREW,TAPPING,6X16 92172 92172-0739 2
SCREW,5X20 92172A 92172-2081 2
CLAMP 92173 92173-0861 5
CLAMP,HOLDER CLIP 92173A 92173-0868 1
CLAMP,CABLE,28MM 92173B 92173-1062 3
TUBE,CONVOLUTED,19.5X23.8X1150 92192 92192-1942 1
NUT 92210 92210-0571 2
NUT 92210A 92210-1680 2
