11065
14093
14093A
26011
26012
92072
92072
92072A
92152
92154
92154A
92160
92161
92171
92192
92192A

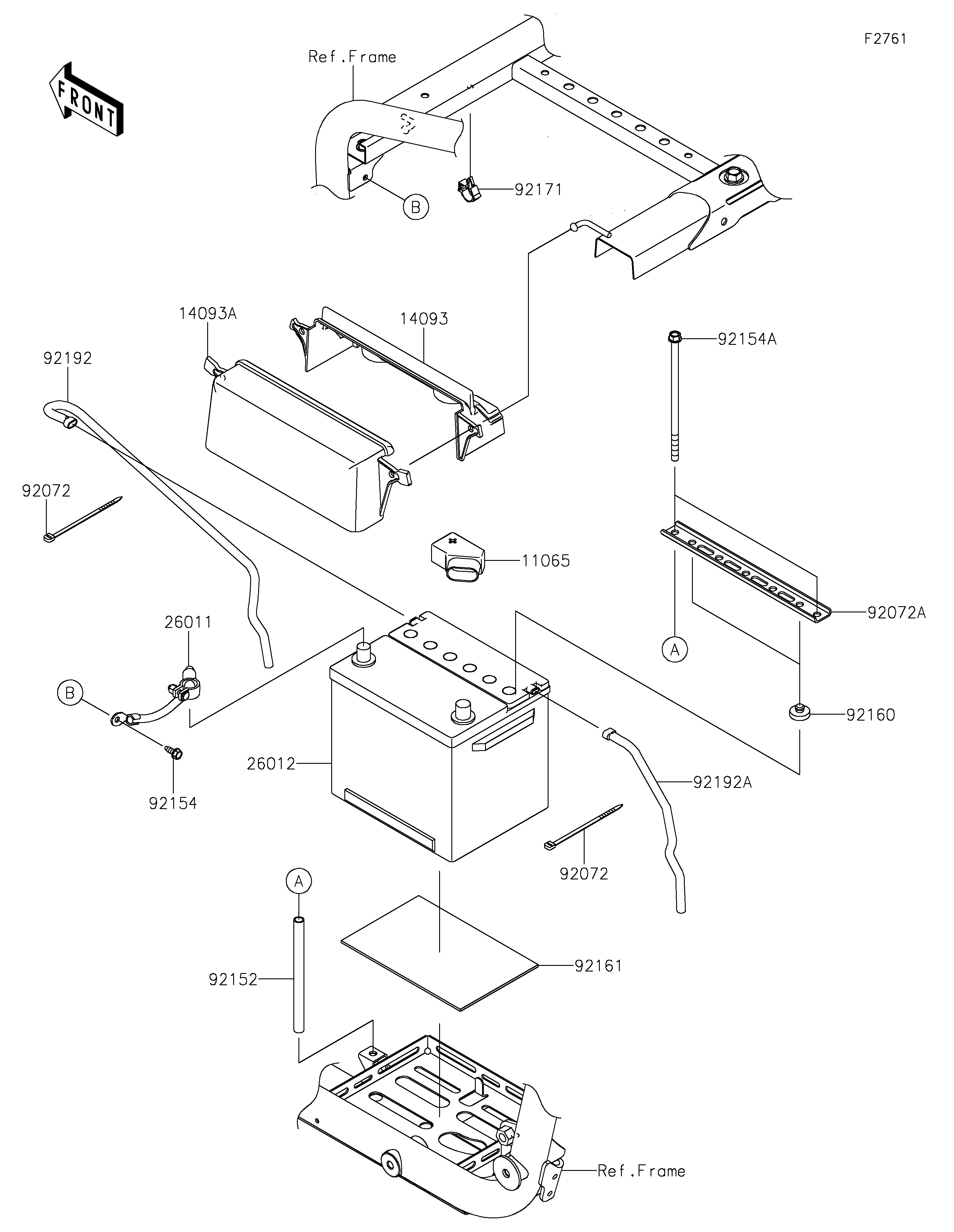

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0850 1
COVER,BATTERY TERMINAL,INNER 14093 14093-0800 1
COVER,BATTERY TERMINAL,OUTER 14093A 14093-0801 1
WIRE-LEAD,BATTERY(-) 26011 26011-1871 1
BATTERY,WET,(26R) 26012 26012-7501 1
BAND,92X2.4 92072 92072-0791 2
BAND,BATTERY 92072A 92072-0844 1
COLLAR,9.4X12.7X160 92152 92152-2584 2
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,FLANGED,8X175 92154A 92154-3973 2
DAMPER 92160 92160-1396 2
DAMPER 92161 92161-0578 1
CLAMP,BRAKE HOSE 92171 92171-0316 1
TUBE,BREATHER,7X10X500 92192 92192-2256 1
TUBE,BREATHER,7X10X300 92192A 92192-2257 1
