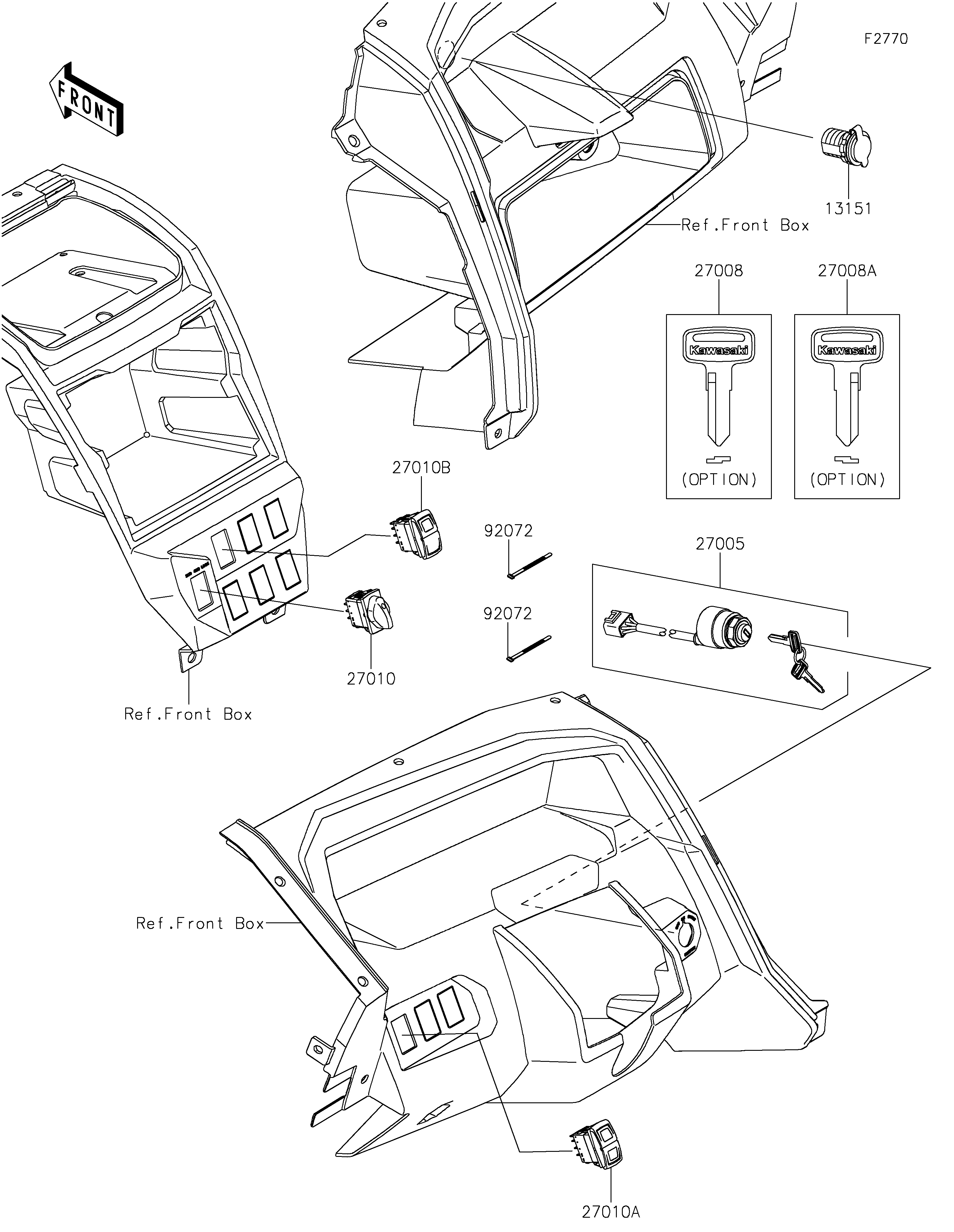

13151
27005
27008
27008A
27010
27010A
27010B
92072
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,OUTLET,12V 13151 13151-0556 1
SWITCH-ASSY-IGNITION 27005 27005-0643 1
KEY-LOCK,BLANK 27008 27008-1153 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1157 1 (OPTION)
SWITCH,2WD/4WD 27010 27010-0902 1
SWITCH,HEAD LIGHT 27010A 27010-0903 1
SWITCH,POWER MODE 27010B 27010-0904 1
BAND,L=123 92072 92072-030 2
