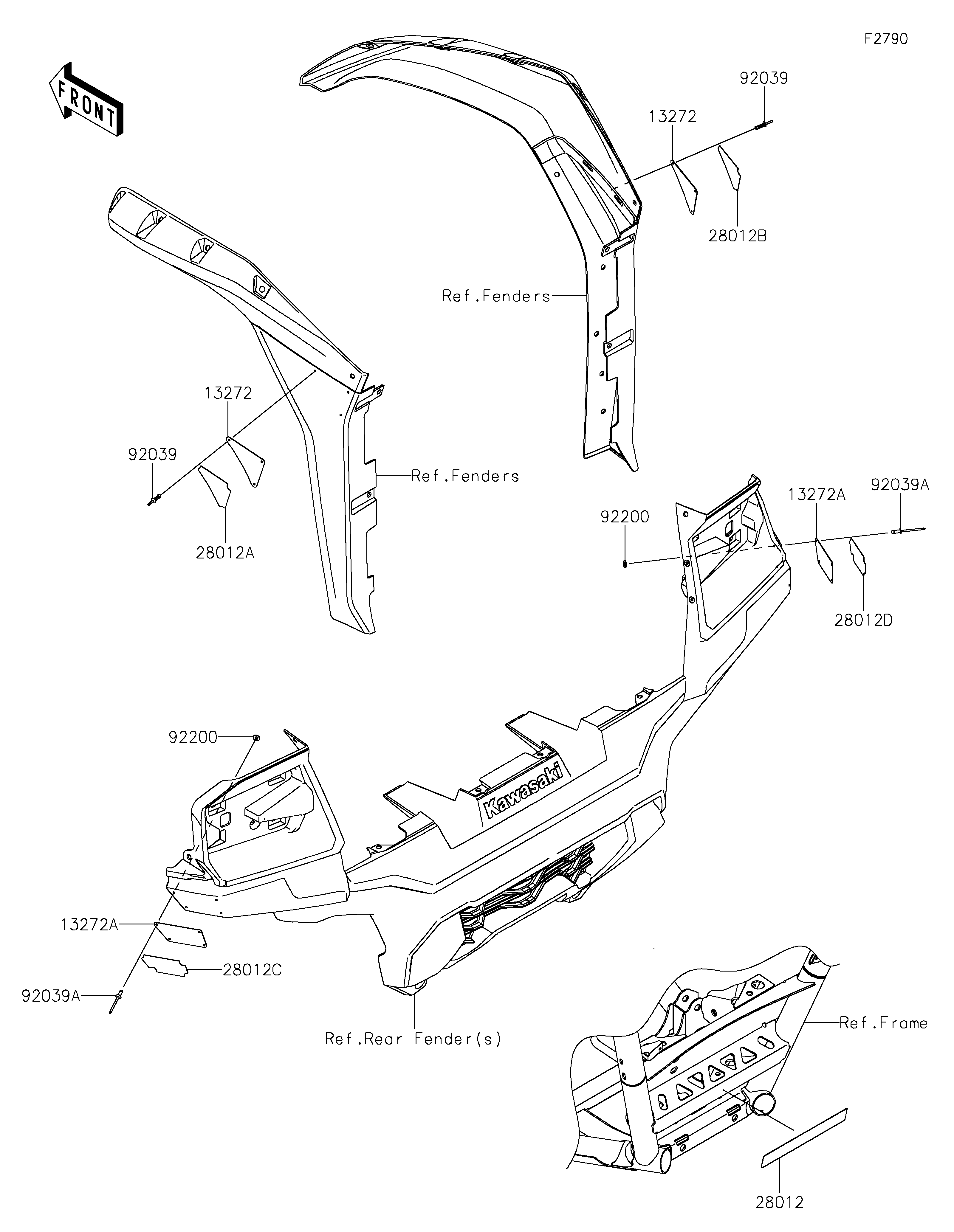

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FR 13272 13272-2880 2 CN
PLATE,RR 13272A 13272-2881 2 CN
REFLECTOR-REFLEX,RR,RED 28012 28012-0023 1 CN
REFLECTOR-REFLEX,FR,LH 28012A 28012-0047 1 CN
REFLECTOR-REFLEX,FR,RH 28012B 28012-0048 1 CN
REFLECTOR-REFLEX,RR,LH 28012C 28012-0049 1 CN
REFLECTOR-REFLEX,RR,RH 28012D 28012-0050 1 CN
RIVET,3.2X14.2 92039 92039-0744 6 CN
RIVET,3.2X8 92039A 92039-3763 8 CN
WASHER,3.5X8X1 92200 92200-1251 8 CN
