Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

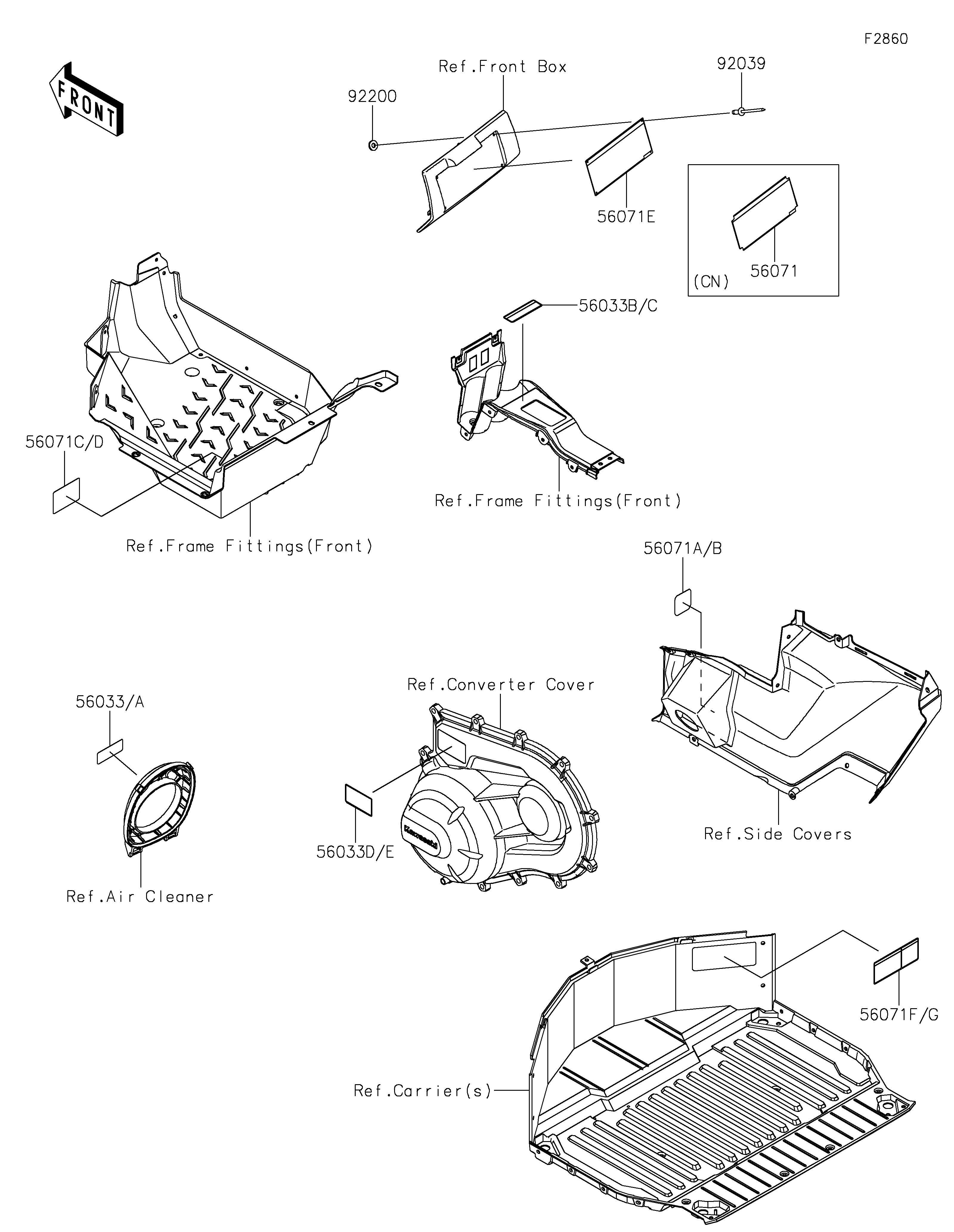

Parts Diagrams |
56033
56033A
56033B
56033C
56033D
56033E
56071
56071A
56071B
56071C
56071D
56071E
56071F
56071G
92039
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-MANUAL,AIR CLEANER | 56033 | 56033-0724 | 1 | ||
| LABEL-MANUAL,AIR CLEANER | 56033A | 56033-0731 | 1 | CN | |
| LABEL-MANUAL,SHIFT NOTICE | 56033B | 56033-0822 | 1 | ||
| LABEL-MANUAL,SHIFT NOTICE | 56033C | 56033-0826 | 1 | CN | |
| LABEL-MANUAL,DRIVE BELT | 56033D | 56033-0996 | 1 | CN | |
| LABEL-MANUAL,DRIVE BELT | 56033E | 56033-1000 | 1 | ||
| LABEL-WARNING,GENERAL | 56071 | 56071-0503 | 1 | CN | |
| LABEL-WARNING,GASOLINE | 56071A | 56071-0588 | 1 | ||
| LABEL-WARNING,GASOLINE | 56071B | 56071-0593 | 1 | CN | |
| LABEL-WARNING,TIRE INFORMATION | 56071C | 56071-0824 | 1 | ||
| LABEL-WARNING,TIRE INFORMATION | 56071D | 56071-0825 | 1 | CN | |
| LABEL-WARNING,GENERAL | 56071E | 56071-0826 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071F | 56071-0925 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071G | 56071-0926 | 1 | CN | |
| RIVET,3.2X8 | 92039 | 92039-3763 | 4 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 4 |
