Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

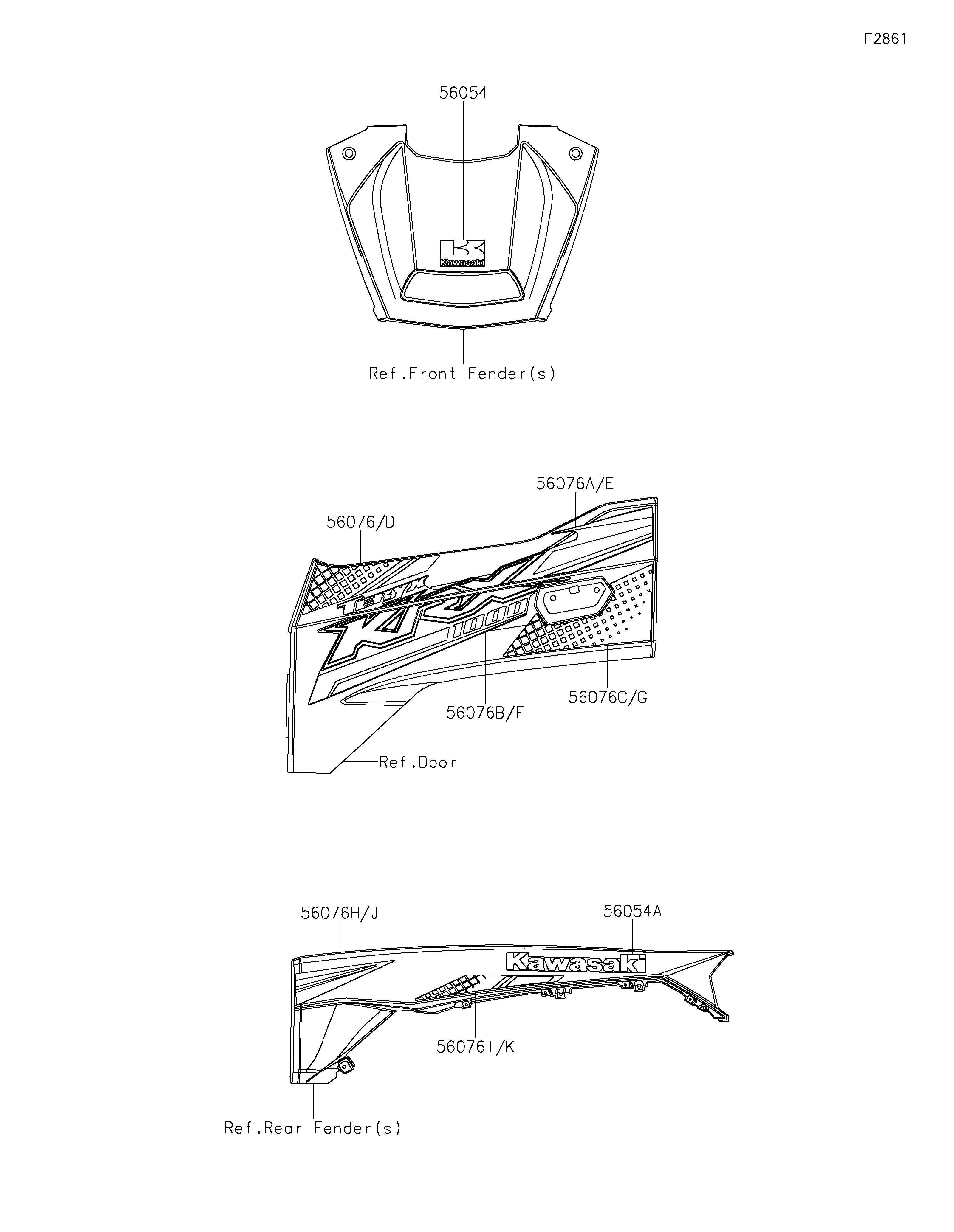

56054
56054A
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,HOOD COVER,K 56054 56054-2604 1
MARK,RR FENDER,KAWASAKI 56054A 56054-2605 2
PATTERN,DOOR COVER,LH,UPP 56076 56076-0280 1
PATTERN,DOOR COVER,LH,CNT 56076A 56076-0281 1
PATTERN,DOOR COVER,LH,LWR 56076B 56076-0282 1
PATTERN,DOOR COVER,LH,RR 56076C 56076-0283 1
PATTERN,DOOR COVER,RH,UPP 56076D 56076-0284 1
PATTERN,DOOR COVER,RH,CNT 56076E 56076-0285 1
PATTERN,DOOR COVER,RH,LWR 56076F 56076-0286 1
PATTERN,DOOR COVER,RH,RR 56076G 56076-0287 1
PATTERN,RR FENDER,LH,UPP 56076H 56076-0288 1
PATTERN,RR FENDER,LH,LWR 56076I 56076-0289 1
PATTERN,RR FENDER,RH,UPP 56076J 56076-0290 1
PATTERN,RR FENDER,RH,LWR 56076K 56076-0291 1
