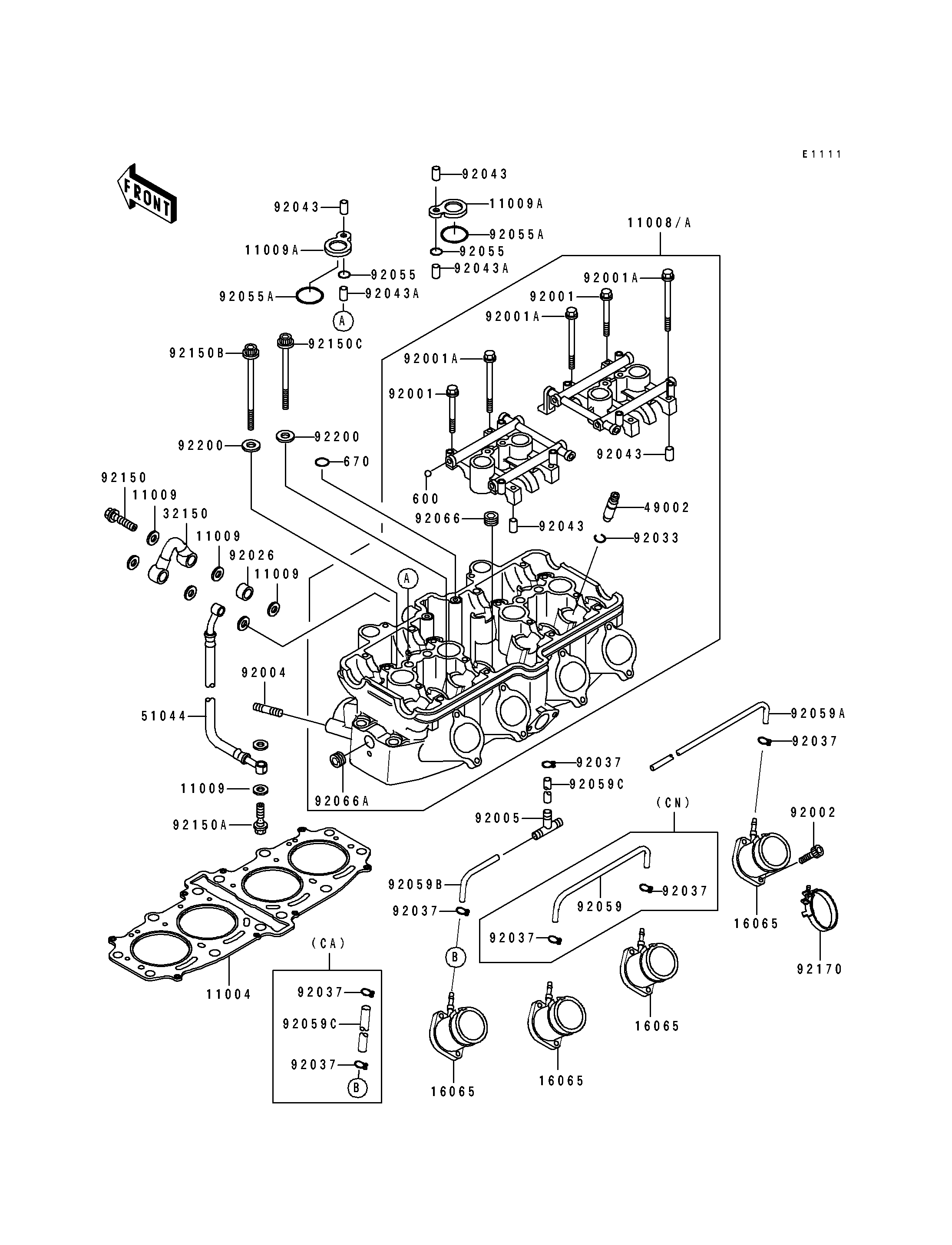

1991 Ninja® ZX™-6 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1206 1
HEAD-COMP-CYLINDER 11008 11008-1241 1 CAUS
HEAD-COMP-CYLINDER 11008A 11008-1242 1 CN
GASKET,10X14.5X1.5 11009 11009-1105 8
GASKET,SPARK PLUG 11009A 11009-1990 4
HOLDER-CARBURETOR 16065 16065-1213 4
PIPE,HEAD 32150 32150-1621 1
GUIDE-VALVE 49002 49002-1109 AR
TUBE-ASSY,HEAD-OIL PAN 51044 51044-1121 1
BOLT,FLANGED,6X38 92001 92001-1105 12
BOLT,6X46 92001A 92001-1872 4
BOLT,6X16 92002 92002-1143 8
STUD,8X18 92004 92004-1186 8
FITTING,TUBE,T-TYPE 92005 92005-1017 1 CNUS
SPACER,10.5X15.1X10 92026 92026-1393 1
RING-SNAP 92033 92033-1247 16
CLAMP 92037 92037-1712 2 CA
CLAMP 92037 92037-1712 5 CN
CLAMP 92037 92037-1712 3 US
PIN,6.2X8X14 92043 92043-1263 8
PIN,8.2X10X14 92043A 92043-1264 4 CAUS
RING-O,11.5X1.5 92055 92055-1469 4 CAUS
RING-O 92055A 92055-1470 4
TUBE,4X9X155 92059 92059-1033 1 CN
TUBE,4X9X230 92059A 92059-1068 1 CNUS
TUBE,4X9X80 92059B 92059-1365 1 CNUS
TUBE,4X9X500,WHITE 92059C 92059-1533 1
PLUG 92066 92066-1253 4
PLUG 92066A 92066-1346 2
BOLT,BANJO,10X37 92150 92150-1122 2
BOLT,BANJO,10X23 92150A 92150-1123 1
BOLT,10X165 92150B 92150-1368 2
BOLT,10X151 92150C 92150-1369 10
CLAMP 92170 92170-1146 4
WASHER,10.5X19X2.3 92200 92200-1042 12
BALL-STEEL,9/32" 600 600A0900 12
O RING,8MM 670 670D1508 2
