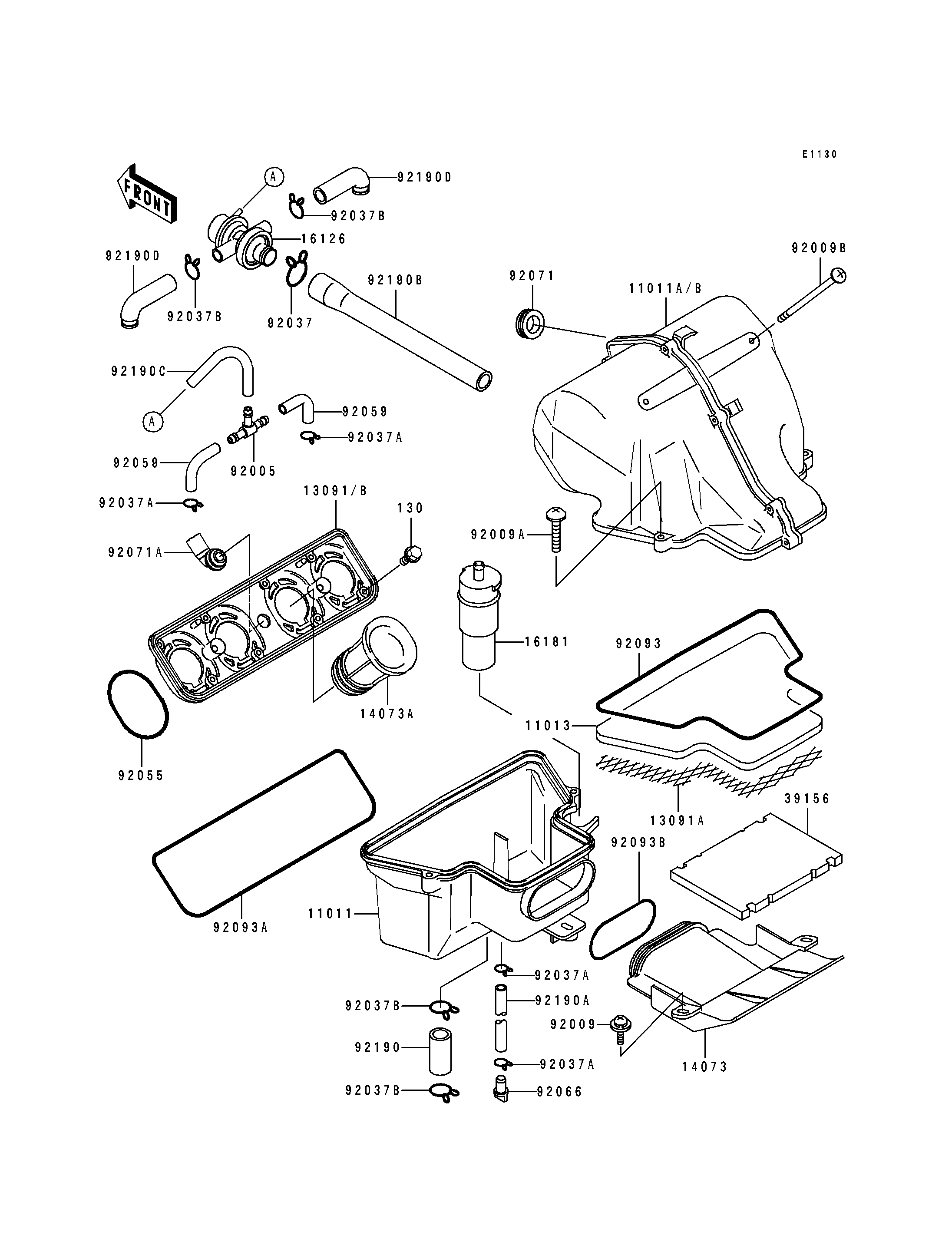

1991 Ninja® ZX™-6 - Air Filter

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,LWR 11011 11011-1328 1
CASE-AIR FILTER,UPP 11011A 11011-1373 1 CN
CASE-AIR FILTER,UPP 11011B 11011-1376 1 CAUS
ELEMENT-AIR FILTER 11013 11013-1189 1
HOLDER,AIR FILTER 13091 13091-1657 1 CNUS
HOLDER,ELEMENT 13091A 13091-1658 1
HOLDER 13091B 13091-1672 1 CA
DUCT,AIR INTAKE 14073 14073-1424 1
DUCT,CARBURETOR 14073A 14073-1442 4
VALVE,AIR SWITCH 16126 16126-1144 1 CAUS
TANK-RESONATOR 16181 16181-1058 1 CNUS
PAD 39156 39156-1213 1
FITTING,TUBE,T-TYPE 92005 92005-1017 1 CAUS
SCREW-PAN-WSP-CROS,6X16 92009 92009-1283 2
SCREW,6X35 92009A 92009-1589 2
SCREW,6X144 92009B 92009-1622 2
CLAMP,TUBE 92037 92037-1076 1 CAUS
CLAMP 92037A 92037-1712 4 CAUS
CLAMP 92037A 92037-1712 2 CN
CLAMP,TUBE 92037B 92037-213 4 CAUS
CLAMP,TUBE 92037B 92037-213 2 CN
RING-O,67.7X3.1 92055 92055-1434 4
TUBE,4X9X80 92059 92059-1365 2 CAUS
PLUG,DRAIN 92066 92066-1211 1
GROMMET,AIR FILTER 92071 92071-1028 1 CAUS
GROMMET,AIR FILTER 92071A 92071-1114 1 CA
SEAL,AIR FILTER CASE 92093 92093-1301 1
SEAL,AIR FILTER HOLDER 92093A 92093-1302 1
SEAL,AIR DUCT 92093B 92093-1303 1
TUBE,BREATHER 92190 92190-1088 1
TUBE,7X10X480 92190A 92190-1089 1
TUBE,VALVE-AIR FILTER 92190B 92190-1090 1 CAUS
TUBE,4X9X220 92190C 92190-1091 1 CAUS
TUBE,AIR SWITCH VALVE 92190D 92190-1168 2 CAUS
BOLT-FLANGED 130 130G0516 8
