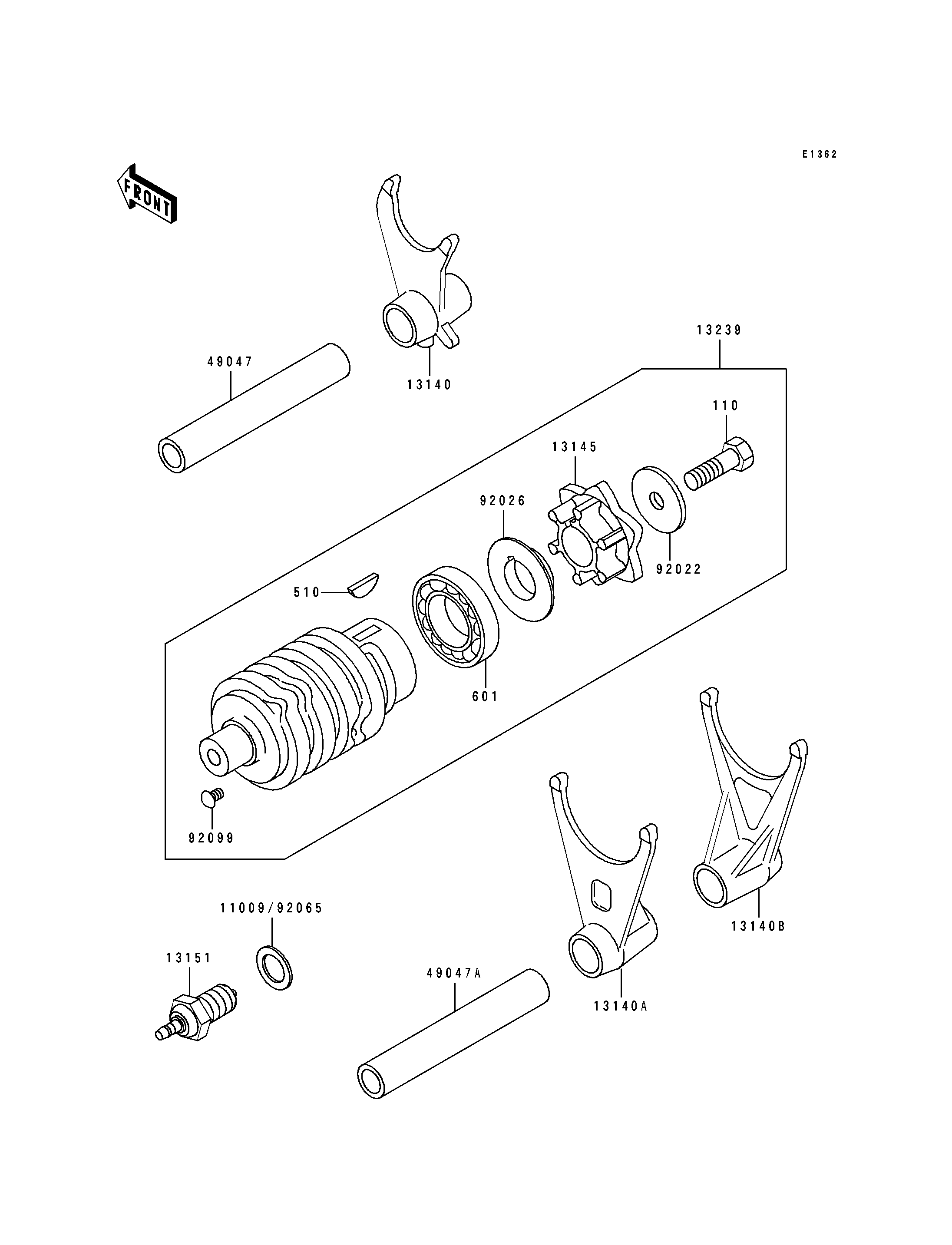

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 1
FORK-SHIFT,INPUT 13140 13140-1153 1
FORK-SHIFT,OUTPUT 13140A 13140-1154 1
FORK-SHIFT,OUTPUT 13140B 13140-1191 1
CAM-CHANGE DRUM 13145 13145-1059 1
SWITCH-COMP,NEUTRAL 13151 13151-1007 1
DRUM-ASSY-CHANGE 13239 13239-1167 1
ROD-SHIFT 49047 49047-1070 1
ROD-SHIFT 49047A 49047-1076 1
WASHER,6.5X24X2 92022 92022-1690 1
SPACER,CHANGE DRUM 92026 92026-1380 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
RIVET 92099 92099-001 1
BOLT,6X20 110 110P0620 1
KEY-WOODRUFF 510 510A3200 1
BEARING-BALL 601 601A6005 1
