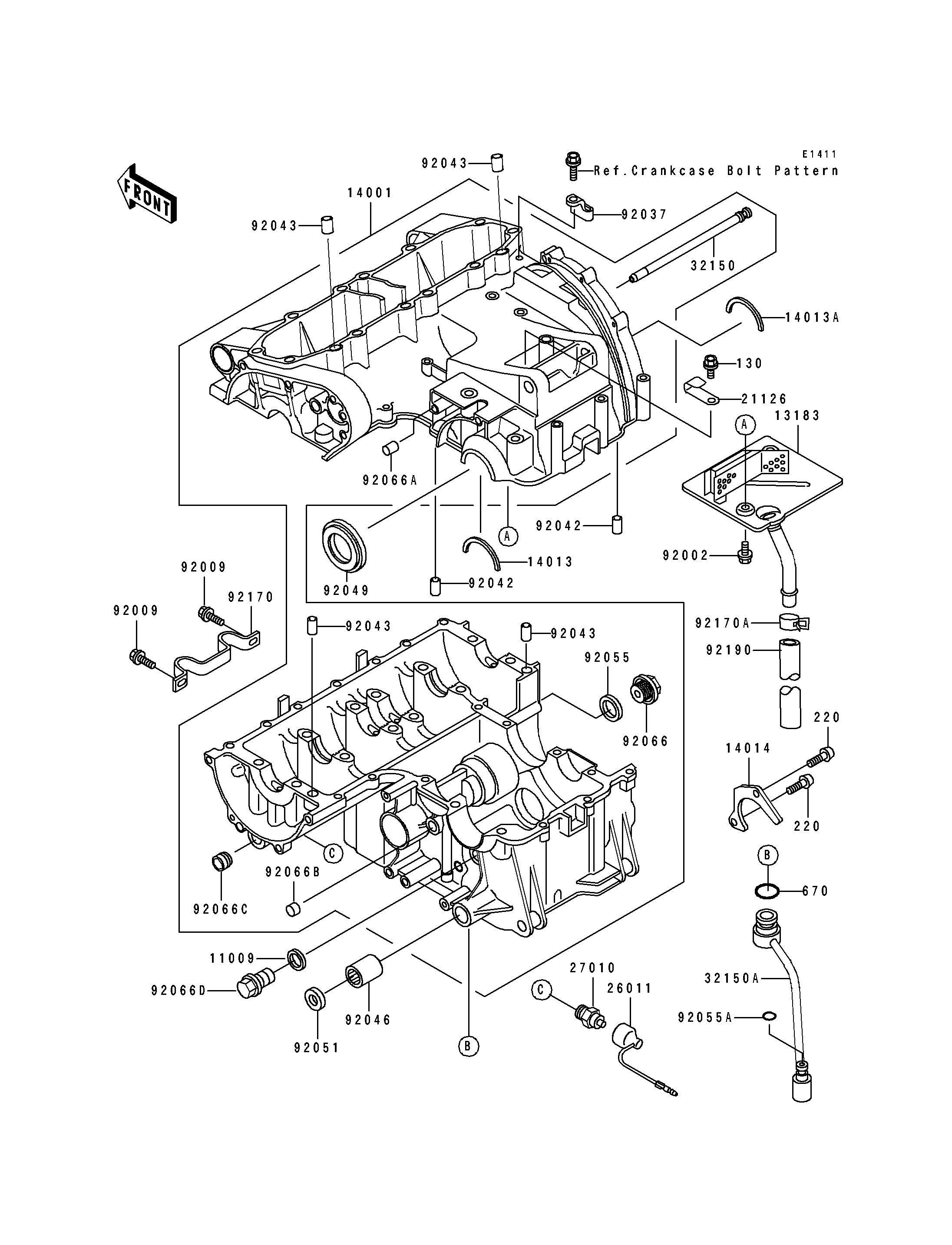

1991 Ninja® ZX™-6 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14.3X20X1 11009 11009-1238 1
PLATE,BREATHER 13183 13183-1531 1
SET-CRANKCASE 14001 14001-5291 1
RING-POSITION 14013 14013-004 1
RING-POSITION,T=1.98 14013A 14013-1004 1
PLATE-POSITION 14014 14014-1102 1
CLAMP,WIRING HARNESS 21126 21126-008 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
PIPE,OIL 32150 32150-1619 1
PIPE,OIL 32150A 32150-1620 1
BOLT,6X10 92002 92002-1449 2
SCREW,TAPPING,5X8 92009 92009-1603 2
CLAMP 92037 92037-1724 1
PIN,DOWEL,6X16 92042 92042-016 2
PIN,8.2X10X14 92043 92043-1264 4
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,TC32528 92049 92049-1307 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-1146 1
RING-O,5.5X1.5 92055A 92055-1343 1
PLUG,18X9 92066 92066-066 1
PLUG,OIL LINE,7.2X8 92066A 92066-1012 1
PLUG 92066B 92066-1110 1
PLUG 92066C 92066-1252 1
PLUG,14X8 92066D 92066-1273 1
CLAMP 92170 92170-1159 1
CLAMP 92170A 92170-2043 1
TUBE,L=127 92190 92190-1107 1
BOLT-FLANGED,6X10 130 130B0610 1
SCREW-PAN-CROS,6X14 220 220B0614 2
O RING,14MM 670 670B2014 1
