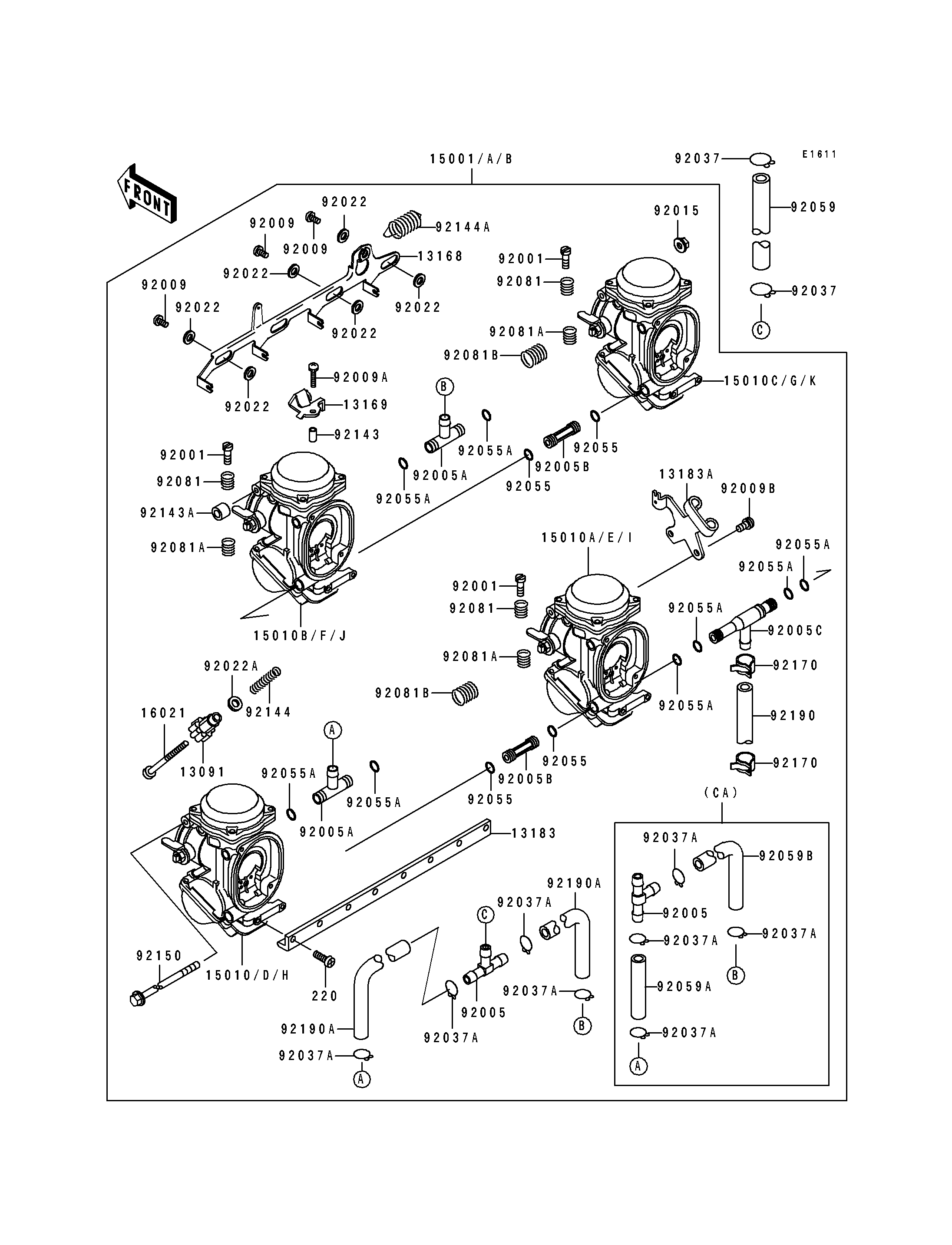

1991 Ninja® ZX™-6 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,THROTTLE STOP SCREW 13091 13091-1382 1
LEVER,STARTER 13168 13168-1405 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE,CARBURETOR STAY 13183 13183-1608 1
PLATE,THROTTLE CABLE 13183A 13183-1610 1
CARBURETOR-ASSY 15001 15001-1591 1 US
CARBURETOR-ASSY 15001A 15001-1593 1 CA
CARBURETOR-ASSY 15001B 15001-1594 1 CN
CARBURETOR,LH,OUTSIDE 15010 15010-1113 1 CN
CARBURETOR,LH,INSIDE 15010A 15010-1114 1 CN
CARBURETOR,RH,INSIDE 15010B 15010-1115 1 CN
CARBURETOR,RH,OUTSIDE 15010C 15010-1116 1 CN
CARBURETOR,LH,OUTSIDE 15010D 15010-1117 1 US
CARBURETOR,LH,INSIDE 15010E 15010-1118 1 US
CARBURETOR,RH,INSIDE 15010F 15010-1119 1 US
CARBURETOR,RH,OUTSIDE 15010G 15010-1120 1 US
CARBURETOR,LH,OUTSIDE 15010H 15010-1121 1 CA
CARBURETOR,LH,INSIDE 15010I 15010-1122 1 CA
CARBURETOR,RH,INSIDE 15010J 15010-1123 1 CA
CARBURETOR,RH,OUTSIDE 15010K 15010-1124 1 CA
SCREW-THROTTLE STOP 16021 16021-1122 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,T-TYPE 92005 92005-1119 1
FITTING,T-TYPE 92005A 92005-1125 2
FITTING 92005B 92005-1157 2
FITTING,T-TYPE 92005C 92005-1214 1
SCREW 92009 92009-1262 3
SCREW,4X18 92009A 92009-1446 1
SCREW 92009B 92009-1597 1
NUT,FLANGED,5MM 92015 92015-1259 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,HOSE 92037 92037-1104 2 CNUS
CLAMP,TUBE 92037A 92037-1194 4
RING-O 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
TUBE,7X12X390,GREEN 92059 92059-1406 1 CNUS
TUBE,7X11X55 92059A 92059-1612 1 CA
TUBE,7X11X220 92059B 92059-1863 1 CA
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 3
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 2
COLLAR,4X5.2X9.6 92143 92143-1265 1
COLLAR 92143A 92143-1438 1
SPRING,THROTTLE ADJUST 92144 92144-1539 1
SPRING,STATER LEVER 92144A 92144-1540 1
BOLT 92150 92150-1416 1
CLAMP,TUBE 92170 92170-1054 2
TUBE,7.3X12.5X380 92190 92190-1063 1
TUBE,7X11X127 92190A 92190-1069 2 CNUS
SCREW-PAN-CROS,5X14 220 220D0514 8
