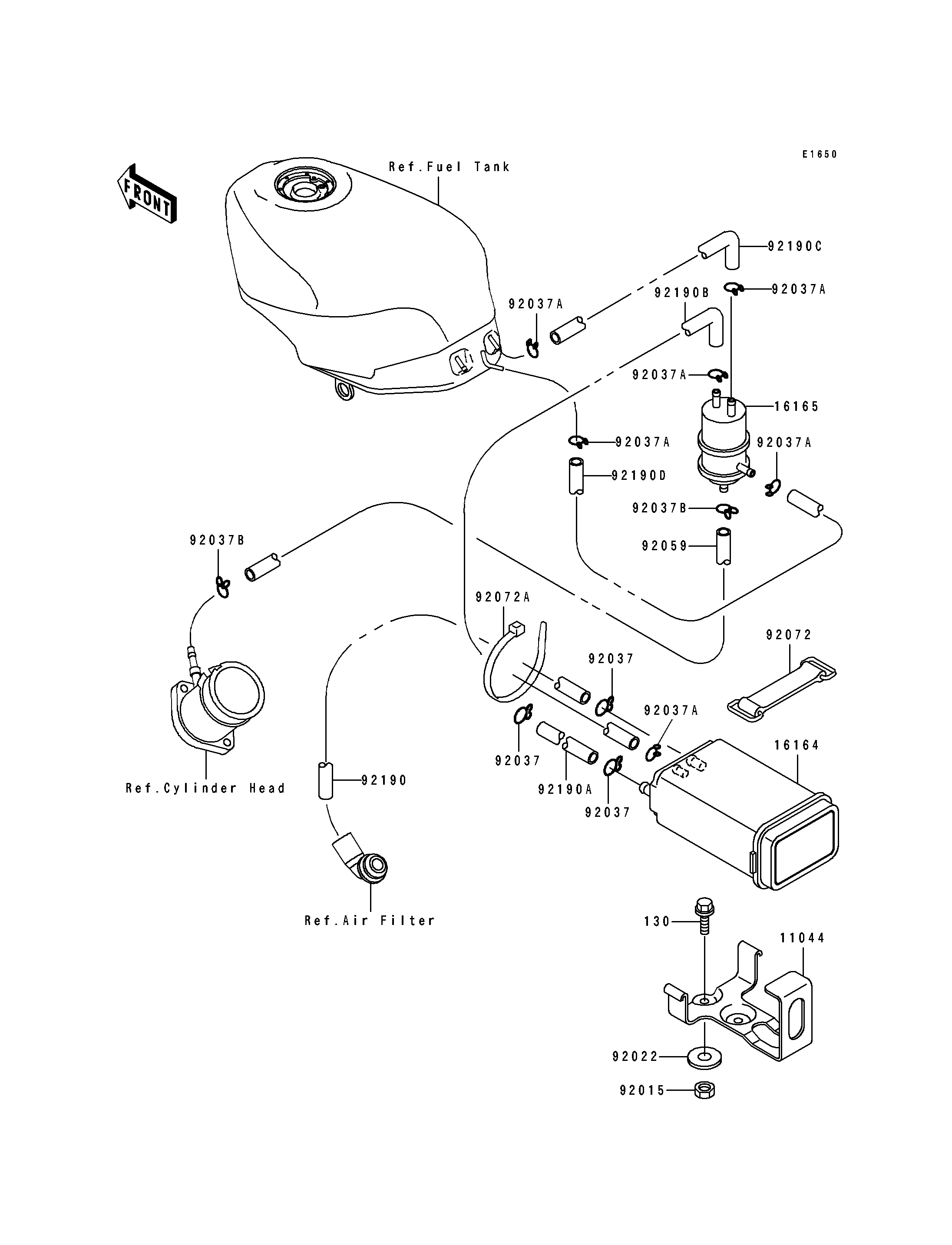

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CANISTER 11044 11044-1876 1 CA
CANISTER 16164 16164-1052 1 CA
SEPARATOR 16165 16165-1001 1 CA
NUT,LOCK,6MM,BLACK 92015 92015-1191 2 CA
WASHER,6.5X16X1.0 92022 92022-1093 2 CA
CLAMP,HOSE 92037 92037-1104 3 CA
CLAMP,TUBE 92037A 92037-147 6 CA
CLAMP 92037B 92037-1712 2 CA
TUBE,4X9X500,WHITE 92059 92059-1533 1 CA
BAND,L=100 92072 92072-071 1 CA
BAND,L=250 92072A 92072-1237 2 CA
TUBE,7X12X1180,GREEN 92190 92190-1108 1 CA
TUBE,7X12X1180,YELLOW 92190A 92190-1109 1 CA
TUBE,5X10X750,BLUE 92190B 92190-1110 1 CA
TUBE,5X10X140,BLUE 92190C 92190-1111 1 CA
TUBE,5X10X200,RED 92190D 92190-1112 1 CA
BOLT-FLANGED,6X12 130 130C0612 2 CA
