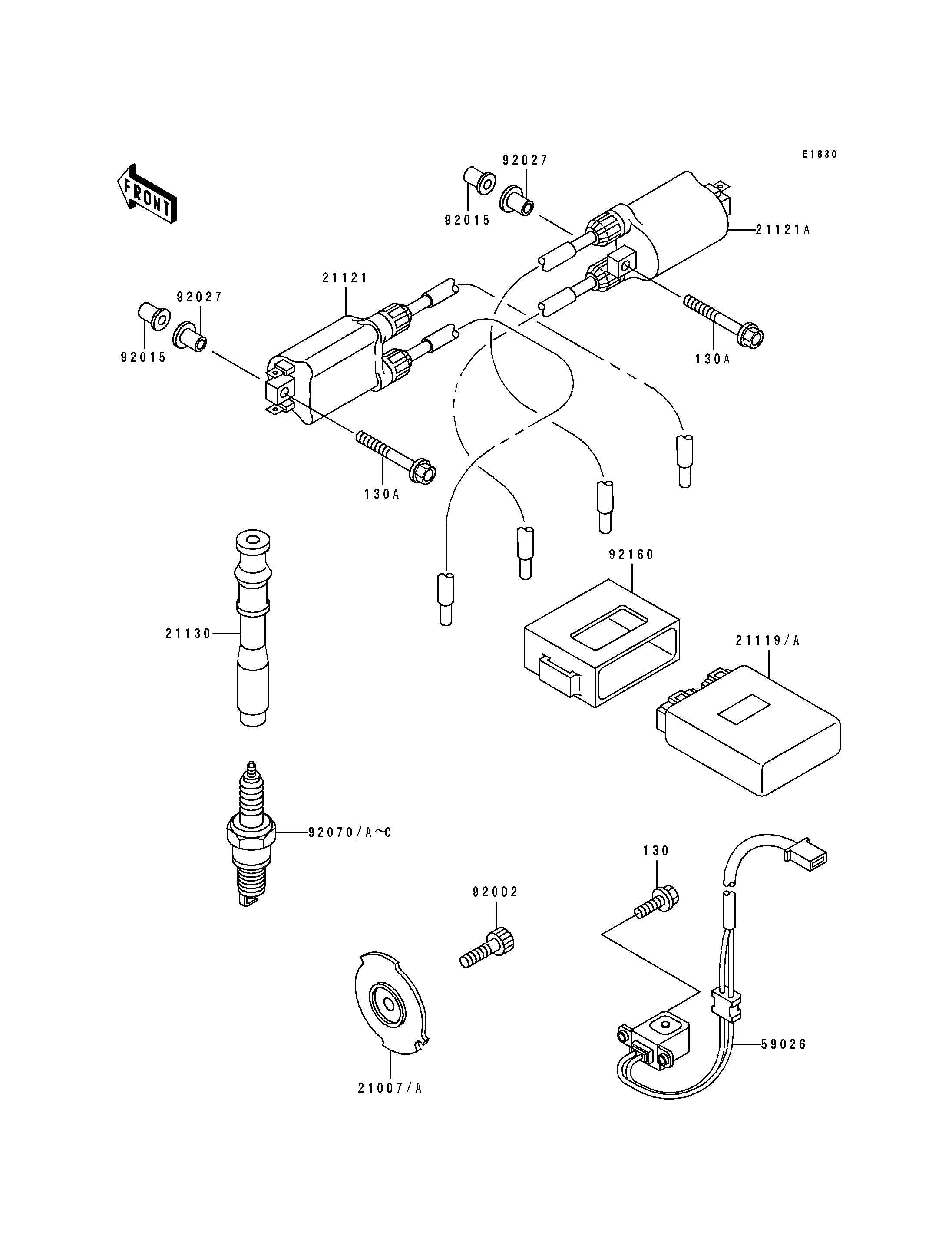

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,PULSING 21007 21007-1205 1 CNUS
ROTOR,PULSING 21007A 21007-1209 1 CA
IGNITER 21119 21119-1285 1 CNUS
IGNITER 21119A 21119-1288 1 CA
COIL-IGNITION,#1&#4 21121 21121-1184 1
COIL-IGNITION,#2&#3 21121A 21121-1185 1
CAP-SPARK PLUG 21130 21130-1065 4
COIL-PULSING 59026 59026-1100 1
BOLT,SOCKET,8X25 92002 92002-1442 1
NUT 92015 92015-1700 4
COLLAR,L=21 92027 92027-195 4
PLUG-SPARK,C9E(NGK) 92070 92070-1142 4 CAUS
PLUG-SPARK,CR9E(NGK) 92070A 92070-1143 4 CN
PLUG-SPARK,U27ES-N(ND) 92070B 4 CAUS (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,U27ESR-N(ND) 92070C 4 CN
DAMPER,IGNITER 92160 92160-1223 1
BOLT-FLANGED 130 130G0512 2
BOLT-FLANGED,6X45 130A 130G0645 4
