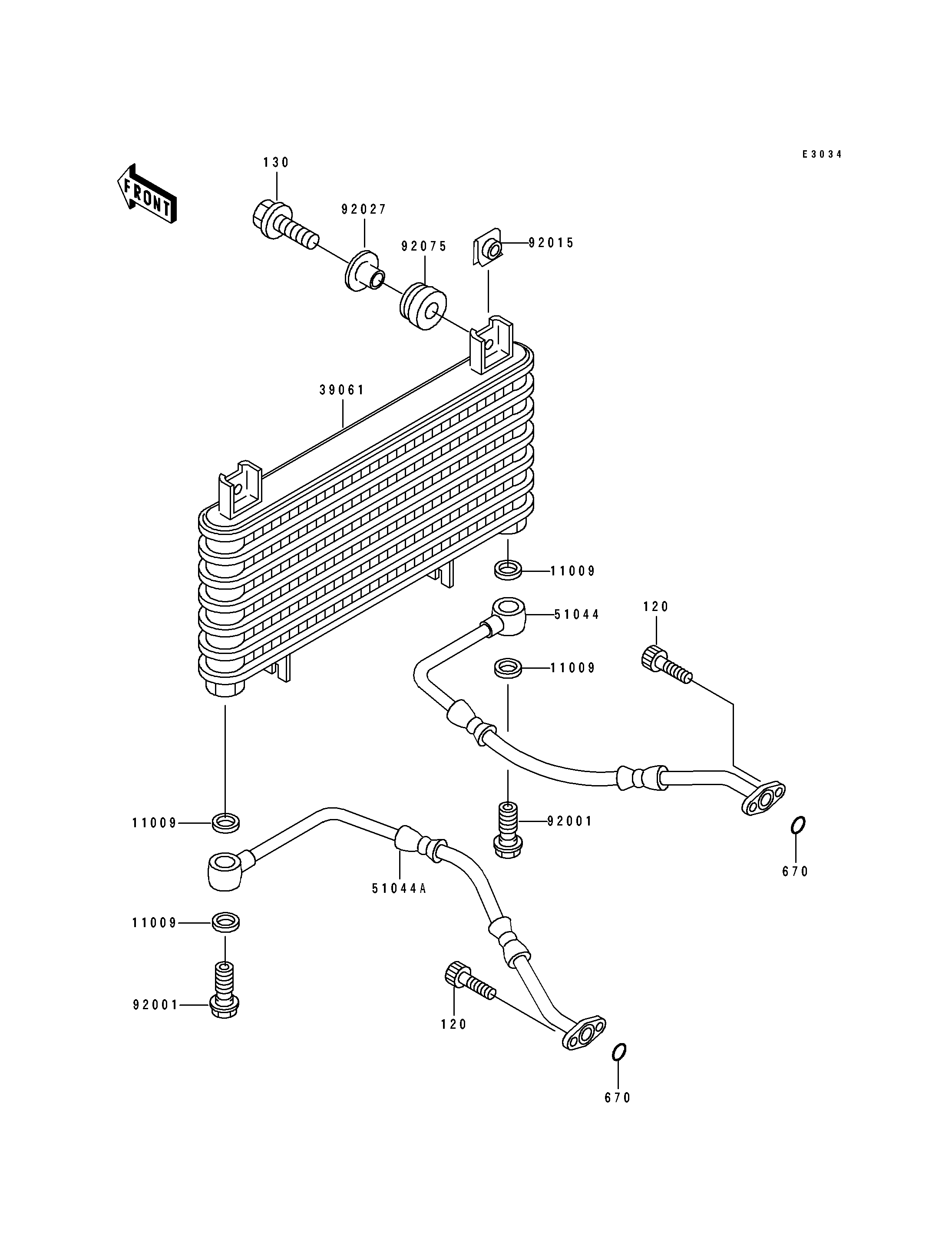

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,14X19.5X1.4 11009 11009-1461 4
OIL COOLER 39061 39061-1095 1
TUBE-ASSY,RH 51044 51044-1131 1
TUBE-ASSY,LH 51044A 51044-1132 1
BOLT,14X28.5 92001 92001-1930 2
NUT 92015 92015-1487 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 3
DAMPER 92075 92075-277 3
BOLT-SOCKET,6X16,BLACK 120 120S0616 4
BOLT-FLANGED,6X25 130 130J0625 3
O RING,10MM 670 670B2010 2
