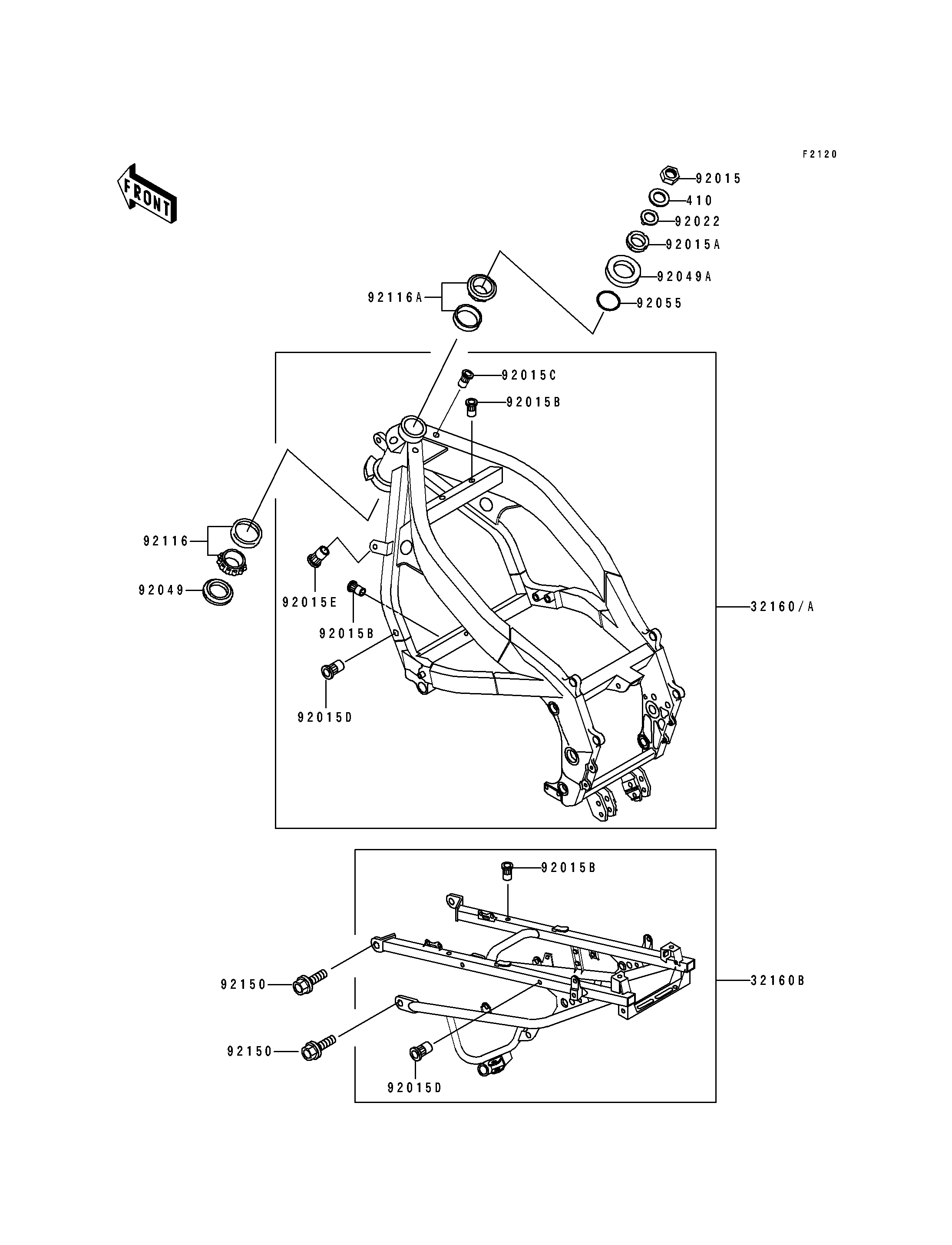

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,FR,G.GRAY 32160 32160-1118-GD 1 CN
FRAME-COMP,FR,G.GRAY 32160A 32160-1118-HN 1 CAUS
FRAME-COMP,RR,BLACK 32160B 32160-1120-10 1
NUT,18MM 92015 92015-1404 1
NUT,25MM,T=12 92015A 92015-1546 1
NUT,POP,6MM,L=15 92015B 92015-1791 6
NUT,POP,6MM,L=16.5 92015C 92015-1792 2
NUT,POP,8MM,L=16.5 92015D 92015-1793 4
NUT,POP,8MM,L=18 92015E 92015-1794 2
WASHER,CLAW,18.5X30X2.3 92022 92022-1555 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,XMH33 70 6.4J-A 92049A 92049-1313 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
BOLT,FLANGED,10X20 92150 92150-1410 4
W-PLAIN-S 410 410F1800 1
