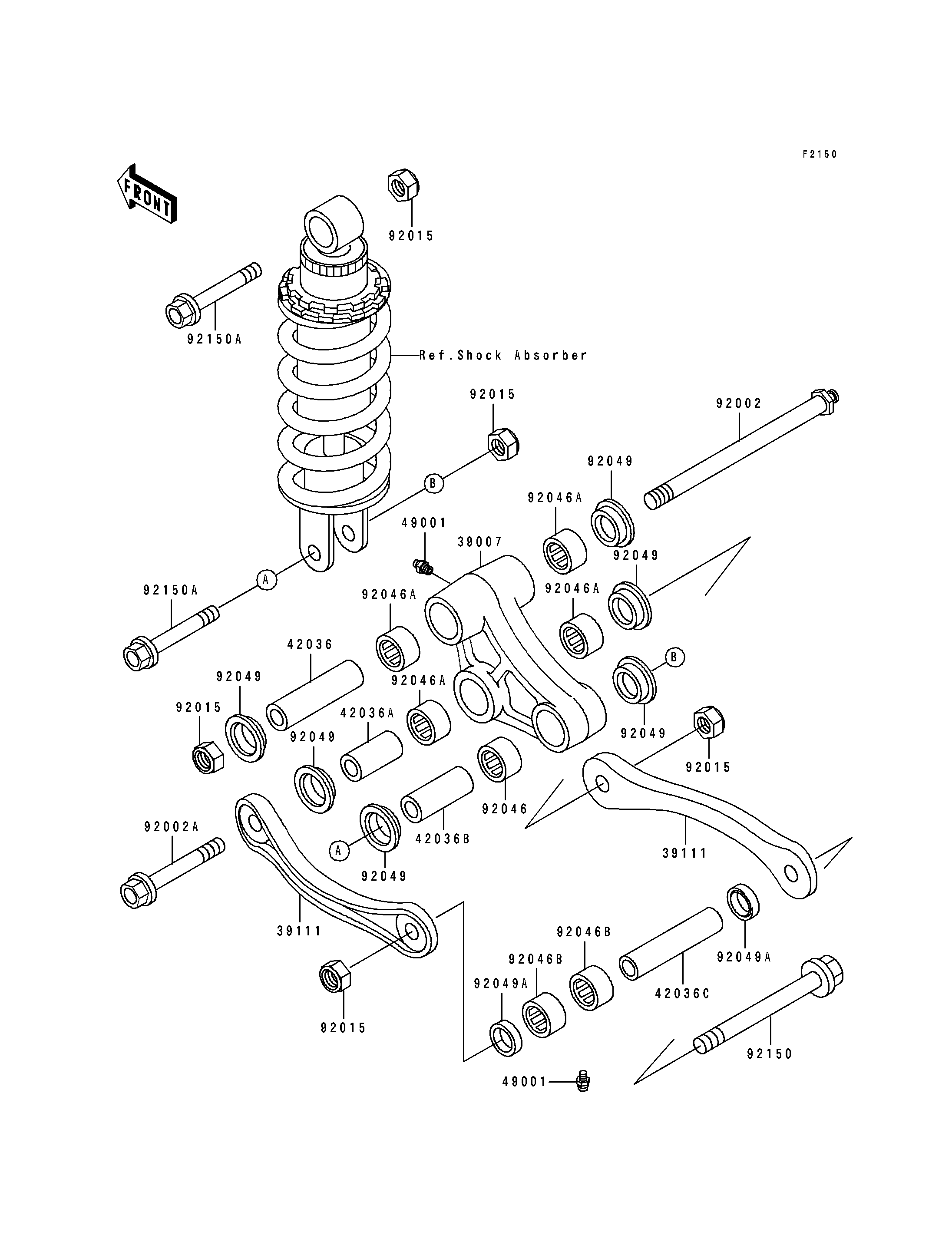

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1191 1
ROD-TIE 39111 39111-1109 2
SLEEVE,12.1X20X74 42036 42036-1102 1
SLEEVE,12.1X20X40 42036A 42036-1108 1
SLEEVE,12.1X20X50 42036B 42036-1111 1
SLEEVE,12.1X18X82 42036C 42036-1231 1
NIPPLE-GREASE 49001 49001-1051 4
BOLT,SUSPENSION ARM 92002 92002-1490 1
BOLT,SUSPENSION ROD 92002A 92002-1661 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 5
BEARING-NEEDLE,BM202726 92046 92046-1110 1
BEARING-NEEDLE,BM202715 92046A 92046-1112 4
BEARING-NEEDLE,18BM2416 92046B 92046-1144 2
SEAL-OIL,ARM,CNT 92049 92049-1109 6
SEAL-OIL,MHA18244 92049A 92049-1225 2
BOLT,FLANGED,12X110 92150 92150-1088 1
BOLT,FLANGED,12X63 92150A 92150-1258 2
