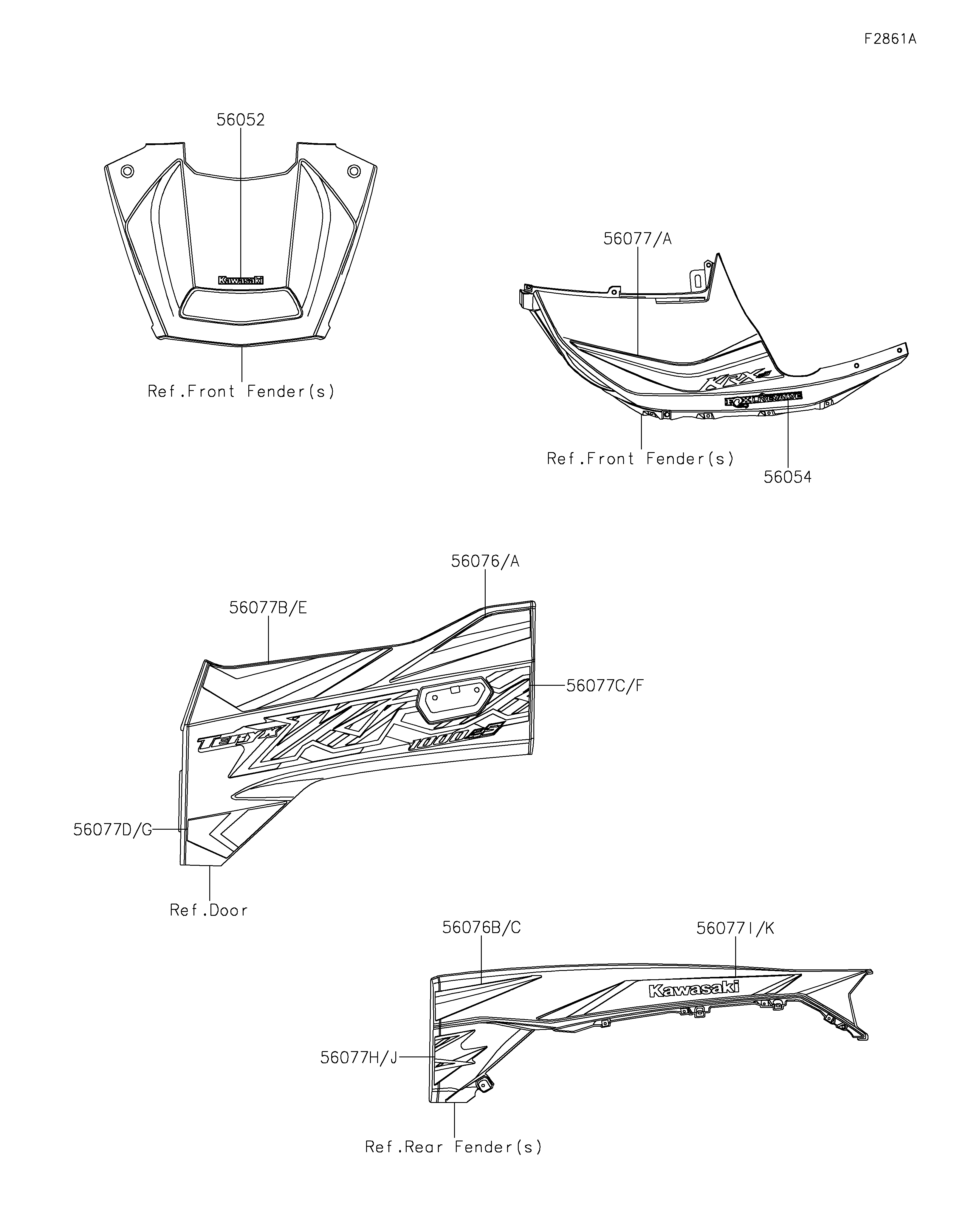

2024 TERYX KRX® 1000 eS - Decals(DRFNN/DRFNL)
56052
56054
56076
56076A
56076B
56076C
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-0928 | 1 | ||
| MARK,FR FENDER,FOX LIVEVALVE | 56054 | 56054-4001 | 2 | ||
| PATTERN,DOOR,LH,UPP,RR | 56076 | 56076-4355 | 1 | ||
| PATTERN,DOOR,RH,UPP,RR | 56076A | 56076-4359 | 1 | ||
| PATTERN,RR FENDER,LH,UPP | 56076B | 56076-4362 | 1 | ||
| PATTERN,RR FENDER,RH,UPP | 56076C | 56076-4365 | 1 | ||
| PATTERN,FR FENDER,LH | 56077 | 56077-0204 | 1 | ||
| PATTERN,FR FENDER,RH | 56077A | 56077-0205 | 1 | ||
| PATTERN,DOOR,LH,UPP | 56077B | 56077-0206 | 1 | ||
| PATTERN,DOOR,LH,CNT | 56077C | 56077-0207 | 1 | ||
| PATTERN,DOOR,LH,LWR | 56077D | 56077-0208 | 1 | ||
| PATTERN,DOOR,RH,UPP | 56077E | 56077-0209 | 1 | ||
| PATTERN,DOOR,RH,CNT | 56077F | 56077-0210 | 1 | ||
| PATTERN,DOOR,RH,LWR | 56077G | 56077-0211 | 1 | ||
| PATTERN,RR FENDER,LH,LWR | 56077H | 56077-0212 | 1 | ||
| PATTERN,RR FENDER,LH,RR | 56077I | 56077-0213 | 1 | ||
| PATTERN,RR FENDER,RH,LWR | 56077J | 56077-0214 | 1 | ||
| PATTERN,RR FENDER,RH,RR | 56077K | 56077-0215 | 1 |
