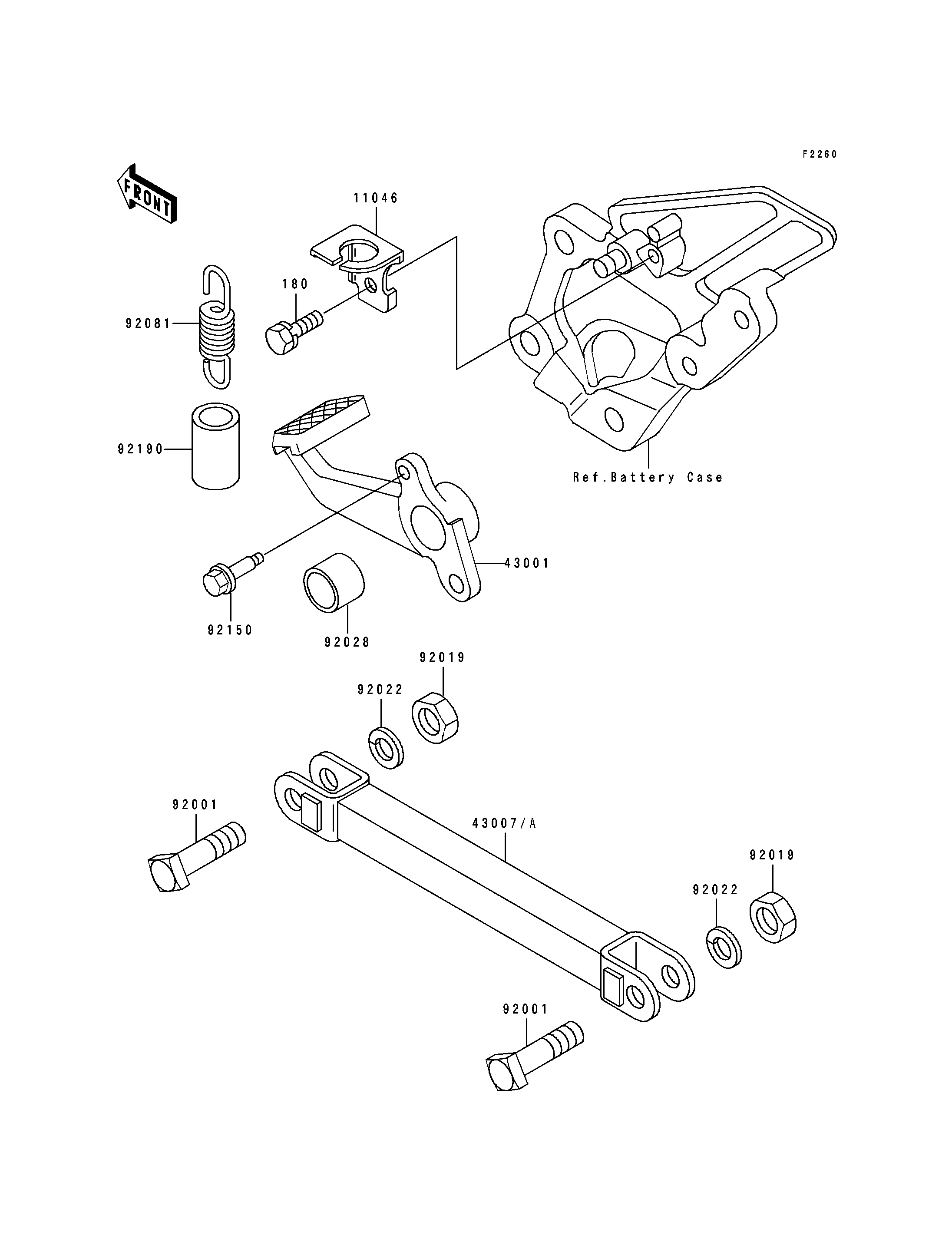

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR BRAKE SWITCH 11046 11046-1252 1
LEVER-BRAKE,PEDAL 43001 43001-1283 1
ROD-TORQUE,G.GRAY 43007 43007-1152-GD 1 CN
ROD-TORQUE,G.GRAY 43007A 43007-1152-HN 1 CAUS
BOLT,10X37 92001 92001-1307 2
NUT,LOCK,10MM 92019 92019-021 2
WASHER,SPRING,10MM 92022 92022-1540 2
BUSHING 92028 92028-1558 1
SPRING,BRAKE PEDAL 92081 92081-1147 1
BOLT,6MM 92150 92150-1113 1
TUBE,16X19X30 92190 92190-1185 1
BOLT-UPSET-WS 180 180H0614 1
