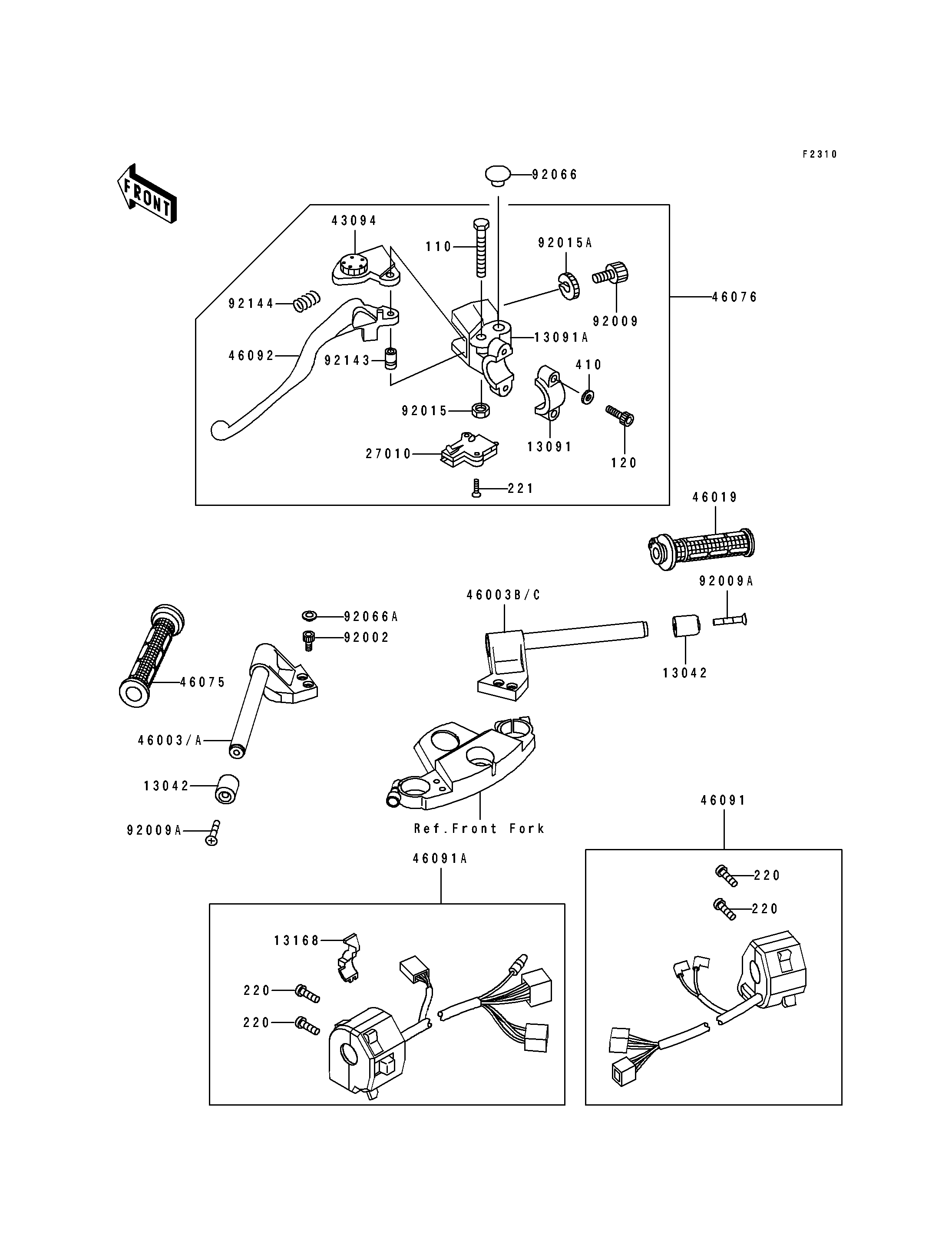

1991 Ninja® ZX™-6 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1069 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13091A 13091-1652 1
LEVER,CHOKE 13168 13168-1448 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,LH,G.GRAY 46003 46003-1331-GD 1 CN
HANDLE,LH,G.GRAY 46003A 46003-1331-HN 1 CAUS
HANDLE,RH,G.GRAY 46003B 46003-1332-GD 1 CN
HANDLE,RH,G.GRAY 46003C 46003-1332-HN 1 CAUS
GRIP-ASSY,THROTTLE 46019 46019-1072 1
GRIP,LH 46075 46075-1088 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1165 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1533 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1534 1
LEVER-GRIP,CLUTCH 46092 46092-1161 1
BOLT,SOCKET,8X20 92002 92002-1178 4
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
SCREW,8X45 92009A 92009-1257 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,BLACK 92015A 92015-1197 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
PLUG 92066A 92066-1277 4
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,6X40 110 110C0640 1
BOLT-SOCKET,6X20 120 120S0620 2
SCREW-PAN-CROS 220 220C0520 4
SCREW-CSK-CROS 221 221C0316 2
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 2
