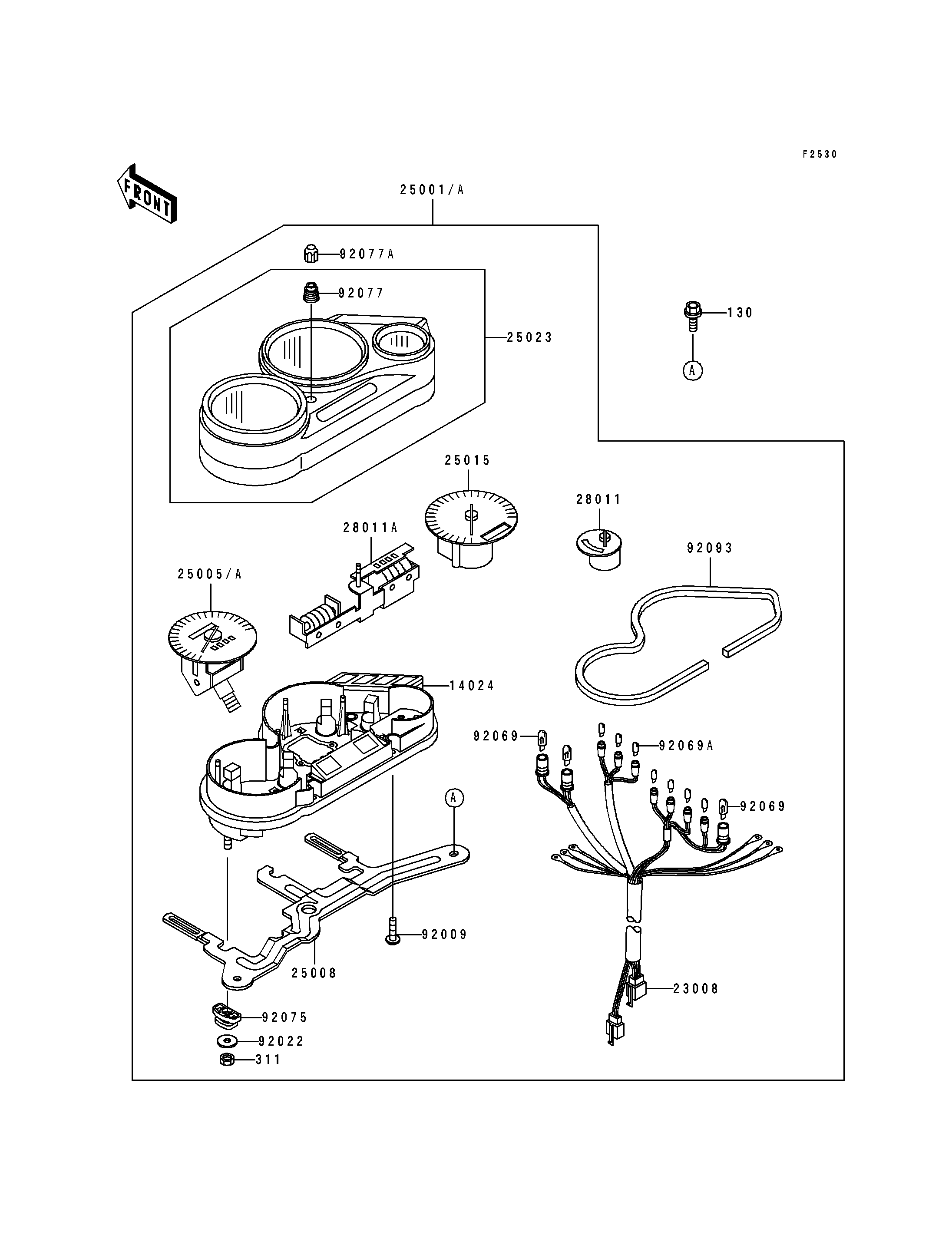

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER HOUSING | 14024 | 14024-1887 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1419 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1792 | 1 | CAUS | |
| METER-ASSY,KPH | 25001A | 25001-1793 | 1 | CN | |
| SPEEDOMETER,MPH | 25005 | 25005-1437 | 1 | CAUS | |
| SPEEDOMETER,KPH | 25005A | 25005-1438 | 1 | CN | |
| BRACKET-METER | 25008 | 25008-1160 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1289 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-1167 | 1 | ||
| METER,TEMP | 28011 | 28011-1116 | 1 | ||
| METER,TRIP | 28011A | 28011-1118 | 1 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 5 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 3 | ||
| BULB,12V 1.7W | 92069 | 92069-1059 | 3 | ||
| BULB,14V 3W | 92069A | 92069-1068 | 7 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1495 | 3 | ||
| KNOB,TRIP RESET | 92077 | 92077-1087 | 1 | ||
| KNOB,TRIP RESET | 92077A | 92077-1094 | 1 | ||
| SEAL,METER | 92093 | 92093-1316 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130C0614 | 2 | ||
| NUT-HEX | 311 | 311B0500 | 3 |
| COVER,METER HOUSING | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,MPH | |
| REF # | 25001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| METER-ASSY,KPH | |
| REF # | 25001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SPEEDOMETER,MPH | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| SPEEDOMETER,KPH | |
| REF # | 25005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TACHOMETER,X1000R/MIN | |
| REF # | 25015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,TEMP | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,TRIP | |
| REF # | 28011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X16X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 1.7W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB,14V 3W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER BRACKET | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| KNOB,TRIP RESET | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KNOB,TRIP RESET | |
| REF # | 92077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,METER | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
