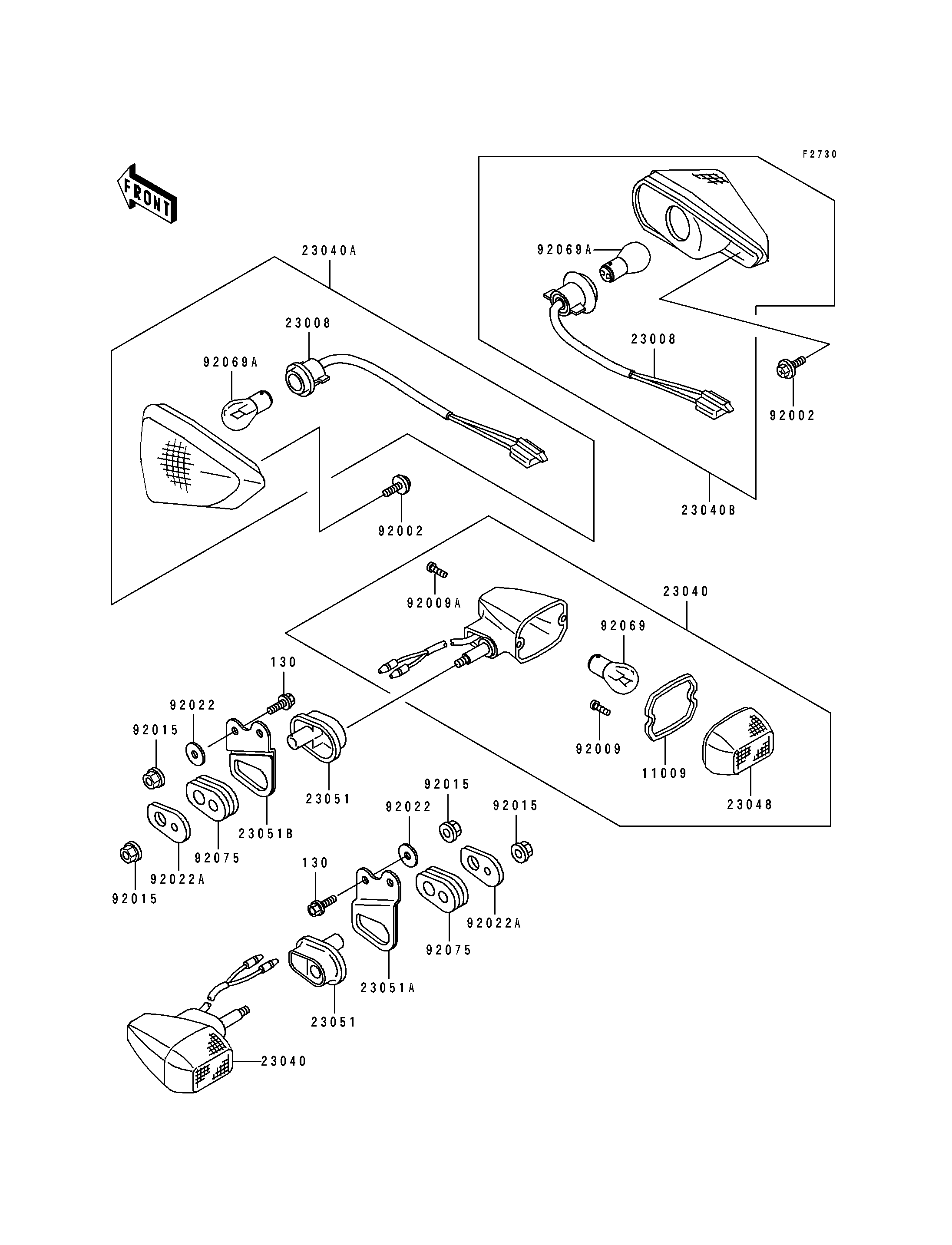

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,SIGNAL LAMP | 11009 | 11009-1402 | 2 | ||
SOCKET-ASSY,SIGNAL LAMP,FR | 23008 | 23008-1464 | 2 | ||
LAMP-SIGNAL,RR | 23040 | 23040-1116 | 2 | ||
LAMP-SIGNAL,FR,LH | 23040A | 23040-1213 | 1 | ||
LAMP-SIGNAL,FR,RH | 23040B | 23040-1214 | 1 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1054 | 2 | ||
BRACKET-SIGNAL LAMP,RR | 23051 | 23051-1168 | 2 | ||
BRACKET-SIGNAL LAMP,RR,LH | 23051A | 23051-1211 | 1 | ||
BRACKET-SIGNAL LAMP,RR,RH | 23051B | 23051-1212 | 1 | ||
BOLT,TAPPING,5X16 | 92002 | 92002-1472 | 2 | ||
SCREW,TAPPING,3X16 | 92009 | 92009-1115 | 4 | ||
SCREW,TAPPING,4X20 | 92009A | 92009-1304 | 2 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1237 | 6 | ||
WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 4 | ||
WASHER,SIGNAL LAMP | 92022A | 92022-1672 | 2 | ||
BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 4 |
GASKET,SIGNAL LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SOCKET-ASSY,SIGNAL LAMP,FR | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-SIGNAL,RR | |
REF # | 23040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-SIGNAL,FR,LH | |
REF # | 23040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-SIGNAL,FR,RH | |
REF # | 23040B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-SIGNAL LAMP,RR | |
REF # | 23051 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-SIGNAL LAMP,RR,LH | |
REF # | 23051A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-SIGNAL LAMP,RR,RH | |
REF # | 23051B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,TAPPING,5X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,3X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X20 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,6.5X20X1.6,BLACK | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,SIGNAL LAMP | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 32CP(23W) | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 32/3CP(23/8W) | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,SIGNAL LAMP | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16,BLACK | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
