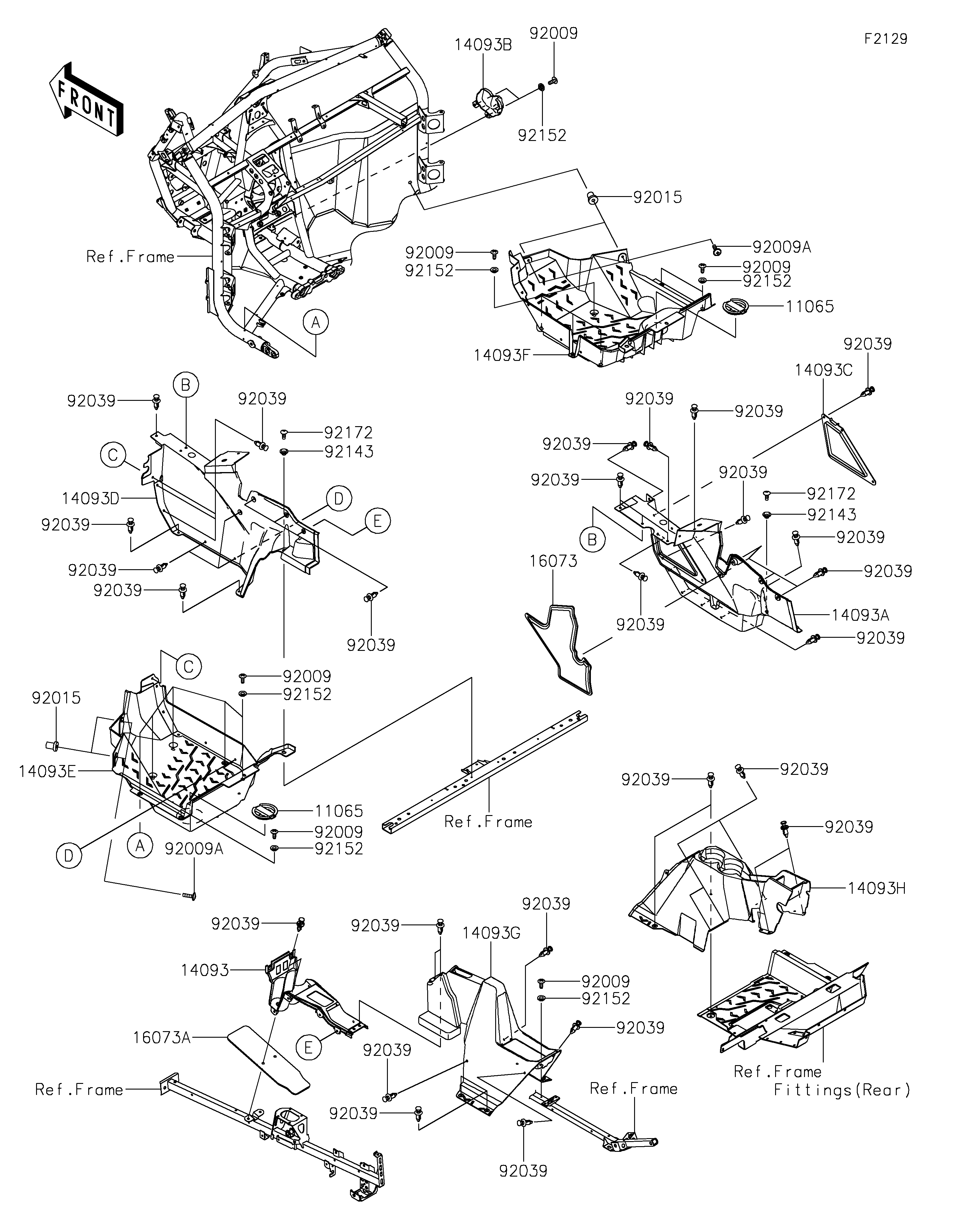

2023 TERYX® KRX4™ 1000 SE - Frame Fittings(Front)
11065
11065
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
14093H
16073
16073A
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92143
92143
92152
92152
92152
92152
92152
92152
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FLOOR | 11065 | 11065-1423 | 2 | ||
| COVER,CENTER CONSOLE,FR | 14093 | 14093-0833 | 1 | ||
| COVER,FLOOR,CNT,RH | 14093A | 14093-0838 | 1 | ||
| COVER,FR GEAR,SIDE | 14093B | 14093-0839 | 1 | ||
| COVER,MAINTENANCE | 14093C | 14093-0850 | 1 | ||
| COVER,FLOOR,CNT,LH | 14093D | 14093-1161 | 1 | ||
| COVER,FLOOR,LH | 14093E | 14093-1208 | 1 | ||
| COVER,FLOOR,RH | 14093F | 14093-1209 | 1 | ||
| COVER,CENTER CONSOLE,CNT | 14093G | 14093-1225 | 1 | ||
| COVER,CENTER CONSOLE,RR | 14093H | 14093-1226 | 1 | ||
| INSULATOR | 16073 | 16073-0898 | 1 | ||
| INSULATOR | 16073A | 16073-0940 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 15 | ||
| SCREW,6X22,BLACK | 92009A | 92009-1256 | 4 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 4 | ||
| RIVET | 92039 | 92039-0776 | 55 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 15 | ||
| SCREW,TAPPING,6X16 | 92172 | 92172-0739 | 2 |
| CAP,FLOOR | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER CONSOLE,FR | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,CNT,RH | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR GEAR,SIDE | |
| REF # | 14093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MAINTENANCE | |
| REF # | 14093C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,CNT,LH | |
| REF # | 14093D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,LH | |
| REF # | 14093E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,RH | |
| REF # | 14093F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER CONSOLE,CNT | |
| REF # | 14093G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTER CONSOLE,RR | |
| REF # | 14093H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,RUBBER,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 55 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X9.5X4.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
