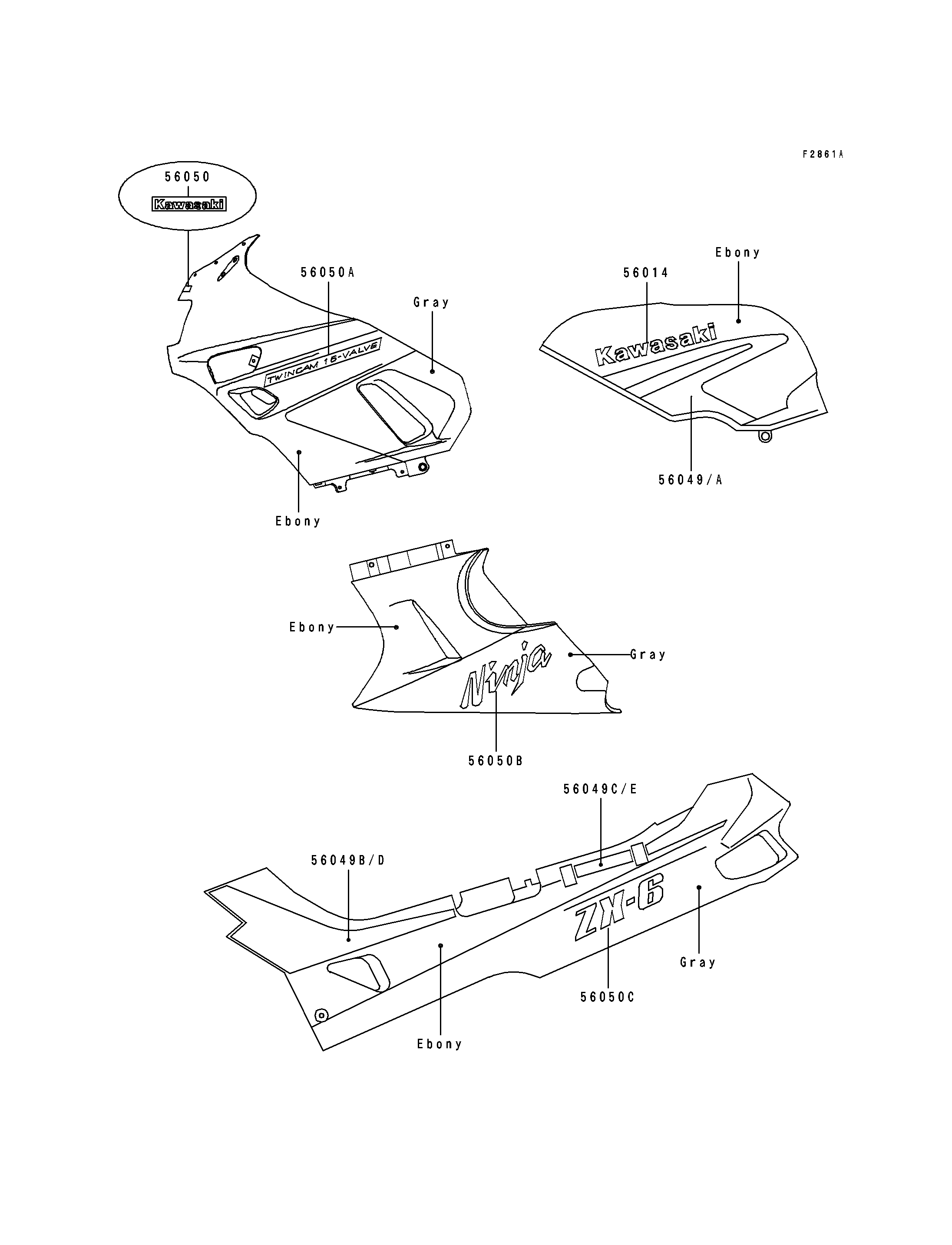

1991 Ninja® ZX-6 - Decal(Ebony/Gray)(ZX600-D2)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,KAWASAKI 56014 56014-1253 2
PATTERN,FUEL TANK,LH 56049 56049-1643 1
PATTERN,FUEL TANK,RH 56049A 56049-1644 1
PATTERN,SIDE COVER,FR,LH 56049B 56049-1645 1
PATTERN,SIDE COVER,RR,LH 56049C 56049-1646 1
PATTERN,SIDE COVER,FR,RH 56049D 56049-1647 1
PATTERN,SIDE COVER,RR,RH 56049E 56049-1648 1
MARK,KAWASAKI 56050 56050-1503 1
MARK,TWIN CAM 16-VALVE 56050A 56050-1506 2
MARK,NINJA 56050B 56050-1587 2
MARK,ZX-6 56050C 56050-1588 2
