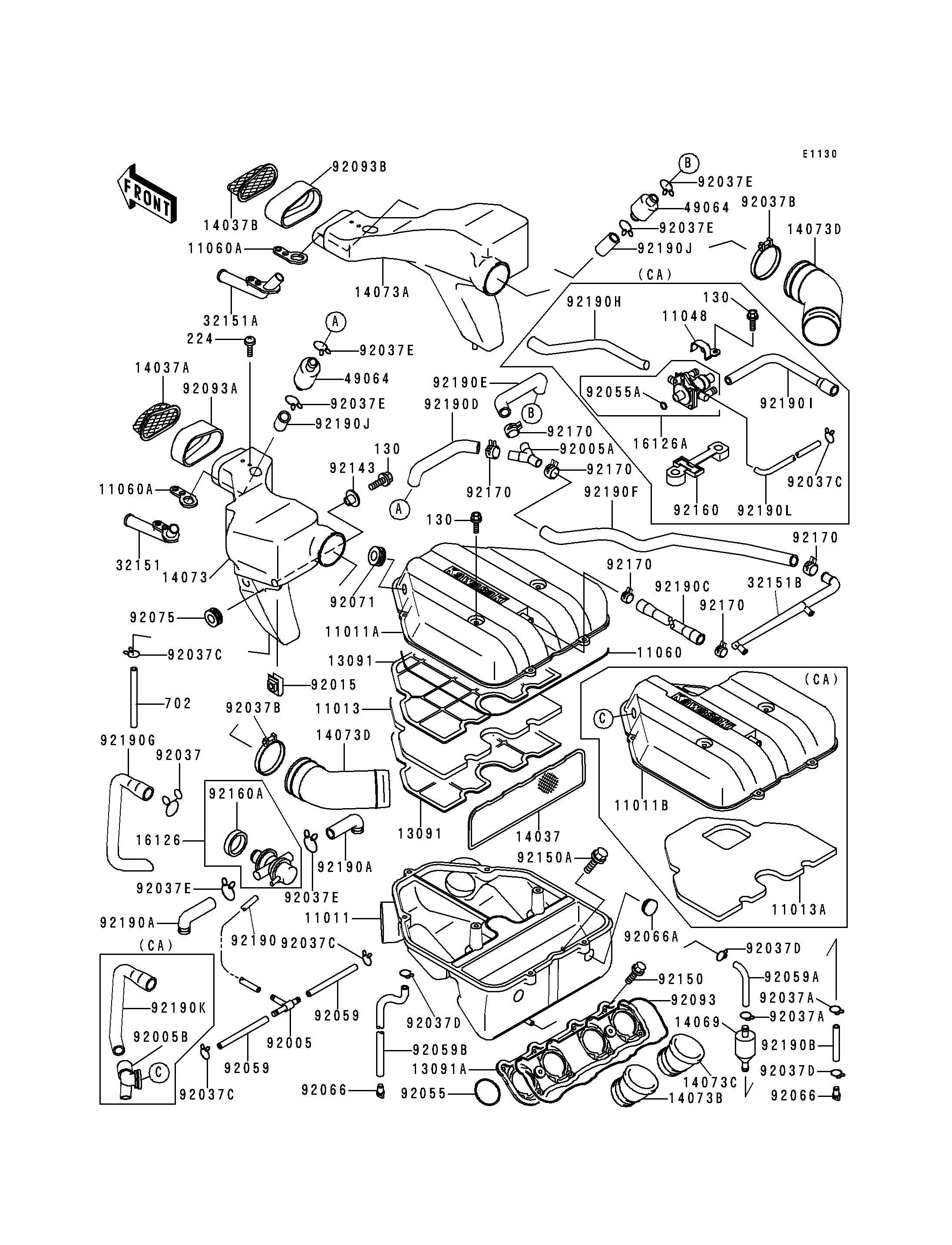

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER,LWR | 11011 | 11011-1394 | 1 | ||
| GASKET,AIR FILTER CASE | 11060 | 11060-1317 | 1 | ||
| GASKET | 11060A | 11060-1343 | 2 | ||
| HOLDER,ELEMENT | 13091 | 13091-1815 | 2 | ||
| HOLDER,DUCT | 13091A | 13091-1816 | 1 | ||
| SCREEN,AIR FILTER | 14037 | 14037-1165 | 1 | ||
| SCREEN,AIR DUCT,LH | 14037A | 14037-1166 | 1 | ||
| SCREEN,AIR DUCT,RH | 14037B | 14037-1167 | 1 | ||
| BREATHER | 14069 | 14069-1051 | 1 | ||
| DUCT,AIR INTAKE,LH | 14073 | 14073-1549 | 1 | ||
| DUCT,AIR INTAKE,RH | 14073A | 14073-1550 | 1 | ||
| DUCT,CARBURETOR,#1 | 14073B | 14073-1562 | 2 | ||
| DUCT,CARBURETOR,#3 | 14073C | 14073-1563 | 2 | ||
| DUCT,DUCT-AIR FILTER | 14073D | 14073-1574 | 2 | ||
| VALVE,AIR SWITCH | 16126 | 16126-1144 | 1 | ||
| PIPE,LH | 32151 | 32151-1462 | 1 | ||
| PIPE,RH | 32151A | 32151-1463 | 1 | ||
| PIPE | 32151B | 32151-1540 | 1 | ||
| FILTER-AIR | 49064 | 49064-1055 | 2 | ||
| FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | ||
| FITTING,Y-TIPE | 92005A | 92005-1250 | 1 | ||
| NUT,6MM | 92015 | 92015-1602 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-1076 | 1 | ||
| CLAMP,FUEL TUBE | 92037A | 92037-1271 | 2 | ||
| CLAMP,AIR FILTER | 92037B | 92037-1409 | 2 | ||
| CLAMP,TUBE | 92037D | 92037-1972 | 4 | ||
| CLAMP,TUBE | 92037E | 92037-213 | 6 | ||
| RING-O,67.7X3.1 | 92055 | 92055-1434 | 4 | ||
| TUBE,4X9X80 | 92059 | 92059-1365 | 2 | ||
| TUBE,7X12X230 | 92059A | 92059-1750 | 1 | ||
| TUBE,7X12X435,GREEN | 92059B | 92059-1761 | 2 | ||
| PLUG,DRAIN | 92066 | 92066-1211 | 3 | ||
| PLUG | 92066A | 92066-1389 | 2 | ||
| DAMPER | 92075 | 92075-1634 | 2 | ||
| SEAL,DUCT HOLDER | 92093 | 92093-1346 | 1 | ||
| SEAL,LH | 92093A | 92093-1347 | 1 | ||
| SEAL,RH | 92093B | 92093-1348 | 1 | ||
| COLLAR,L=9.6 | 92143 | 92143-1016 | 2 | ||
| BOLT,5X12 | 92150 | 92150-1661 | 8 | ||
| BOLT,6X20 | 92150A | 92150-1662 | 2 | ||
| DAMPER,VALVE | 92160A | 92160-1454 | 1 | ||
| CLAMP | 92170 | 92170-1060 | 6 | ||
| TUBE,4X9X220 | 92190 | 92190-1091 | 1 | ||
| TUBE,AIR SWITCH VALVE | 92190A | 92190-1168 | 2 | ||
| TUBE,7X12X45 | 92190B | 92190-1200 | 1 | ||
| TUBE,BREATHER | 92190C | 92190-1346 | 1 | ||
| TUBE,14X20X158,LH | 92190D | 92190-1413 | 1 | ||
| TUBE,14X20X158,RH | 92190E | 92190-1414 | 1 | ||
| TUBE,14X20X28 | 92190J | 92190-1429 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130H0625 | 9 | ||
| SCREW-PAN-WP-CROS,5X12 | 224 | 224C0512 | 4 | ||
| TUBE-RUBBER,7X10X120 | 702 | 702A07120 | 2 | ||
| CASE-AIR FILTER,UPP | 11011A | 11011-1395 | 1 | CNUS | |
| CASE-AIR FILTER,UPP | 11011B | 11011-1412 | 1 | CA | |
| ELEMENT-AIR FILTER | 11013 | 11013-1226 | 1 | CNUS | |
| ELEMENT-AIR FILTER | 11013A | 11013-1230 | 1 | CA | |
| BRACKET,VALVE | 11048 | 11048-1179 | 1 | CA | |
| VALVE,CANISTER | 16126A | 16126-1274 | 1 | CA | |
| FITTING,CANISTER | 92005B | 92005-1253 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 4 | CNUS | |
| CLAMP | 92037C | 92037-1712 | 5 | CA | |
| RING-O | 92055A | 92055-1524 | 1 | CA | |
| GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | CNUS | |
| DAMPER | 92160 | 92160-1431 | 1 | CA | |
| TUBE,14X20X525 | 92190F | 92190-1415 | 1 | CNUS | |
| TUBE,VALVE-AIR FILTER | 92190G | 92190-1416 | 1 | CNUS | |
| TUBE,VALVE-FITTING | 92190H | 92190-1422 | 1 | CA | |
| TUBE,VALVE-FITTING | 92190I | 92190-1423 | 1 | CA | |
| TUBE,AIR SWITCH-FITTING | 92190K | 92190-1435 | 1 | CA | |
| TUBE,4X9X276 | 92190L | 92190-1444 | 1 | CA |
