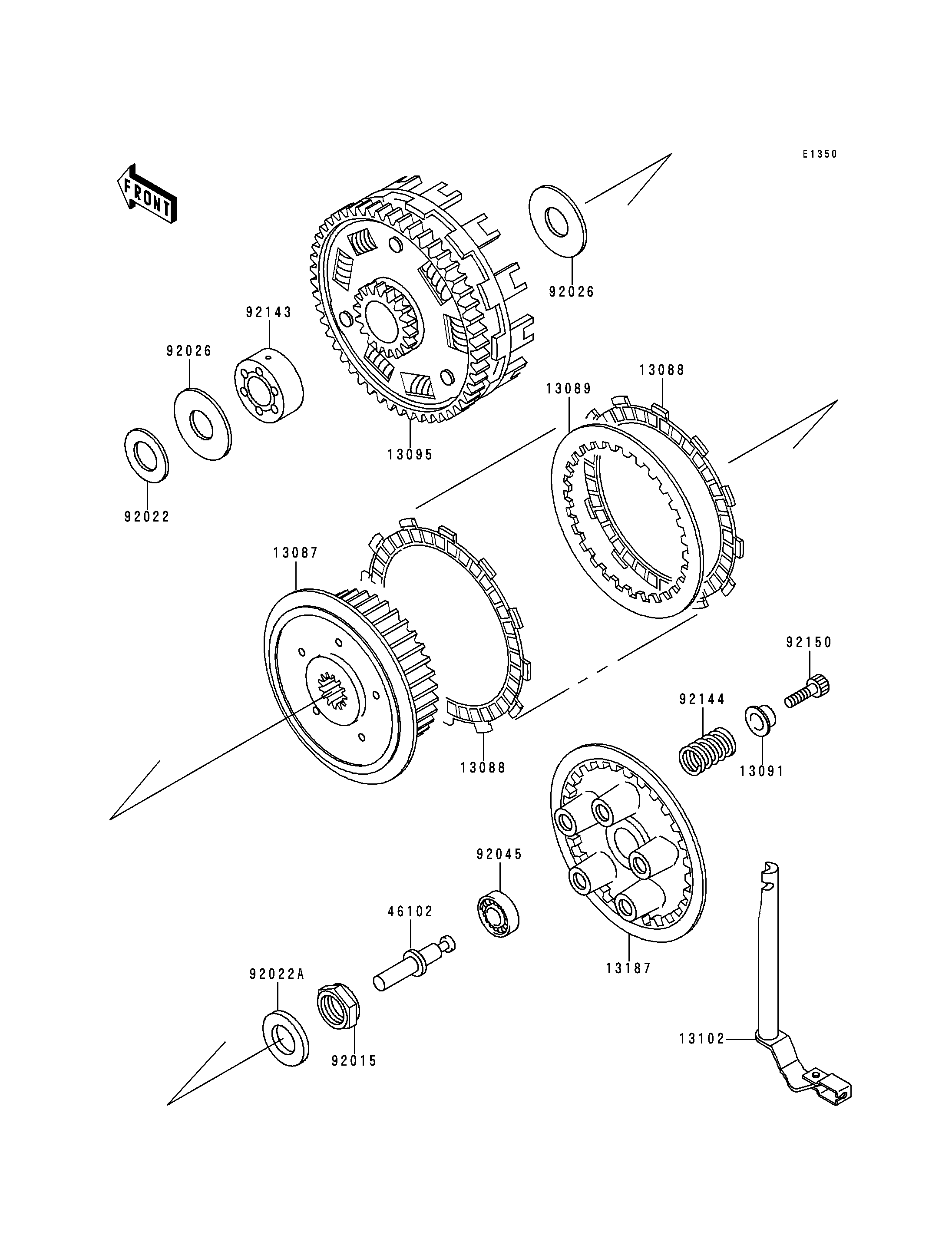

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-042 1
PLATE-FRICTION 13088 13088-1087 7
PLATE-CLUTCH,T=2.3 13089 13089-1004 6
HOLDER,CLUTCH SPRING 13091 13091-1840 5
HOUSING-COMP-CLUTCH 13095 13095-1304 1
RELEASE-COMP-CLUTCH 13102 13102-1123 1
PLATE-CLUTCH OPERATING 13187 13187-1006 1
ROD,CLUTCH 46102 46102-1030 1
NUT,20MM 92015 92015-1555 1
WASHER,25.5X38X1 92022 92022-145 1
WASHER 92022A 92022-1868 1
SPACER,25X66X2.0 92026 92026-1383 2
BEARING-BALL,6001C3ML01 92045 92045-1235 1
COLLAR 92143 92143-1387 1
SPRING,CLUTCH 92144 92144-1731 5
BOLT,SOCKET,6X35 92150 92150-1713 5
