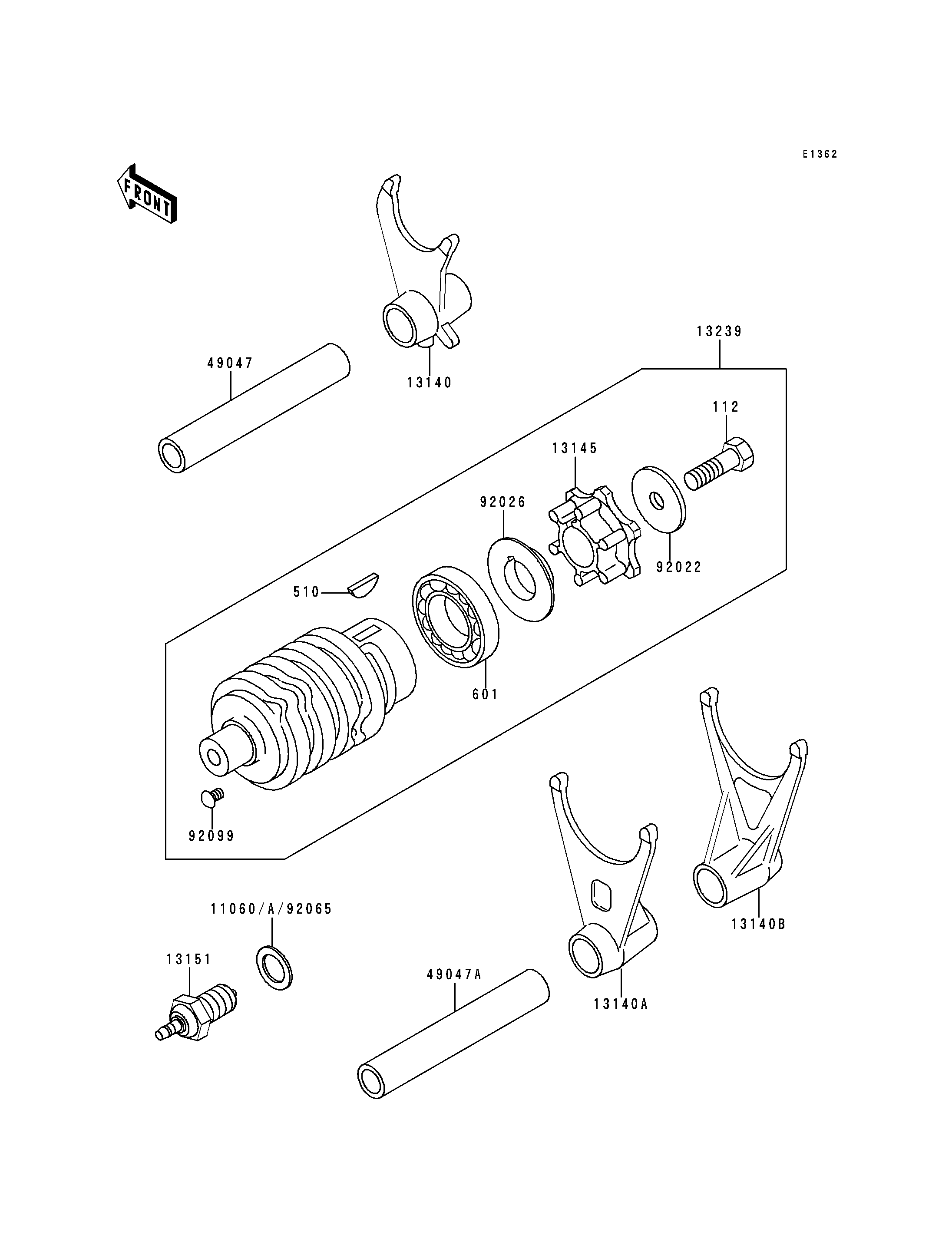

1994 Ninja® ZX-6 - Gear Change Drum/Shift Fork(s)

112
510
601
11060
11060A
13140
13140A
13140B
13145
13151
13239
49047
49047A
92022
92026
92065
92099
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112P0620 1
KEY-WOODRUFF 510 510A3200 1
BEARING-BALL 601 601A6005 1
GASKET,10.5X16X1.5 11060 11060-1676 AR
GASKET,10.5X16X1.2 11060A 11060-1684 AR
FORK-SHIFT,INPUT 13140 13140-1153 1
FORK-SHIFT,OUTPUT 13140A 13140-1154 1
FORK-SHIFT,OUTPUT 13140B 13140-1191 1
CAM-CHANGE DRUM 13145 13145-1074 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
DRUM-ASSY-CHANGE 13239 13239-1176 1
ROD-SHIFT 49047 49047-1070 1
ROD-SHIFT 49047A 49047-1076 1
WASHER,6.5X24X2 92022 92022-1690 1
SPACER,CHANGE DRUM 92026 92026-1380 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
RIVET 92099 92099-001 1
