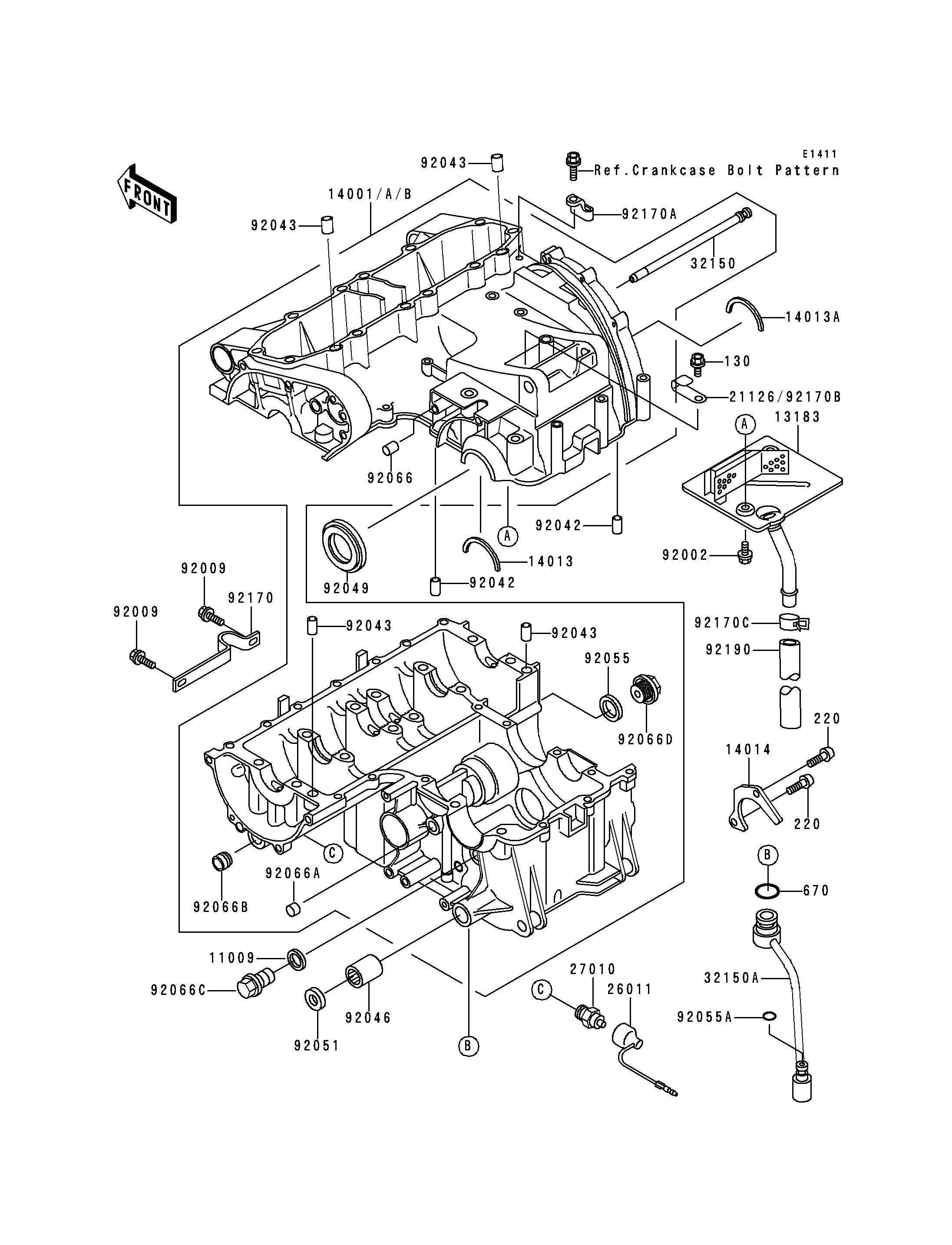

1994 Ninja® ZX™-6 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
220
220
670
11009
13183
14001
14001B
14013
14013A
14014
21126
26011
27010
32150
32150A
92002
92009
92009
92042
92042
92043
92043
92043
92043
92046
92049
92051
92055
92055A
92066
92066A
92066B
92066C
92066D
92170
92170A
92170C
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130V0610 1
SCREW-PAN-CROS,6X14 220 220B0614 2
O RING,14MM 670 670B2014 1
GASKET,14.3X20X1 11009 11009-1238 1
PLATE,BREATHER 13183 13183-1531 1
SET-CRANKCASE 14001 14001-5291 1 ( - ZX600DE061254)
SET-CRANKCASE 14001B 14001-5333 1 ( ZX600DE061255 - )
RING-POSITION 14013 14013-004 1
RING-POSITION,T=1.98 14013A 14013-1004 1
PLATE-POSITION 14014 14014-1102 1
CLAMP,WIRING HARNESS 21126 21126-008 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL 32150 32150-1619 1
PIPE,OIL 32150A 32150-1620 1
BOLT,6X10 92002 92002-1449 2
SCREW,TAPPING,5X8 92009 92009-1603 2
PIN,DOWEL,6X16 92042 92042-016 2
PIN,8.2X10X14 92043 92043-1264 4
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,TC32528 92049 92049-1307 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-1146 1
RING-O,5.5X1.5 92055A 92055-1343 1
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
PLUG 92066A 92066-1110 1
PLUG 92066B 92066-1252 1
PLUG,14X8 92066C 92066-1273 1
PLUG 92066D 92066-1394 1
CLAMP,OIL TUBE 92170 92170-1468 1
CLAMP 92170A 92170-1471 1
CLAMP 92170C 92170-2043 1
TUBE,L=127 92190 92190-1107 1
