Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13168
13168
13169
13169
13183
13183
13183A
13183A
16021
16021
92001
92001
92001
92001
92001
92001
92005
92005
92005
92005
92005A
92005A
92005A
92005A
92005B
92005B
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
220
220
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055
92055
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92059
92059
92059A
92059A
92059A
92059A
92081
92081
92081
92081
92081
92081
92081A
92081A
92081A
92081A
92081A
92081A
92081B
92081B
92081B
92081B
92143
92143
92143A
92143A
92144
92144
92150
92150
92170
92170
92170
92170

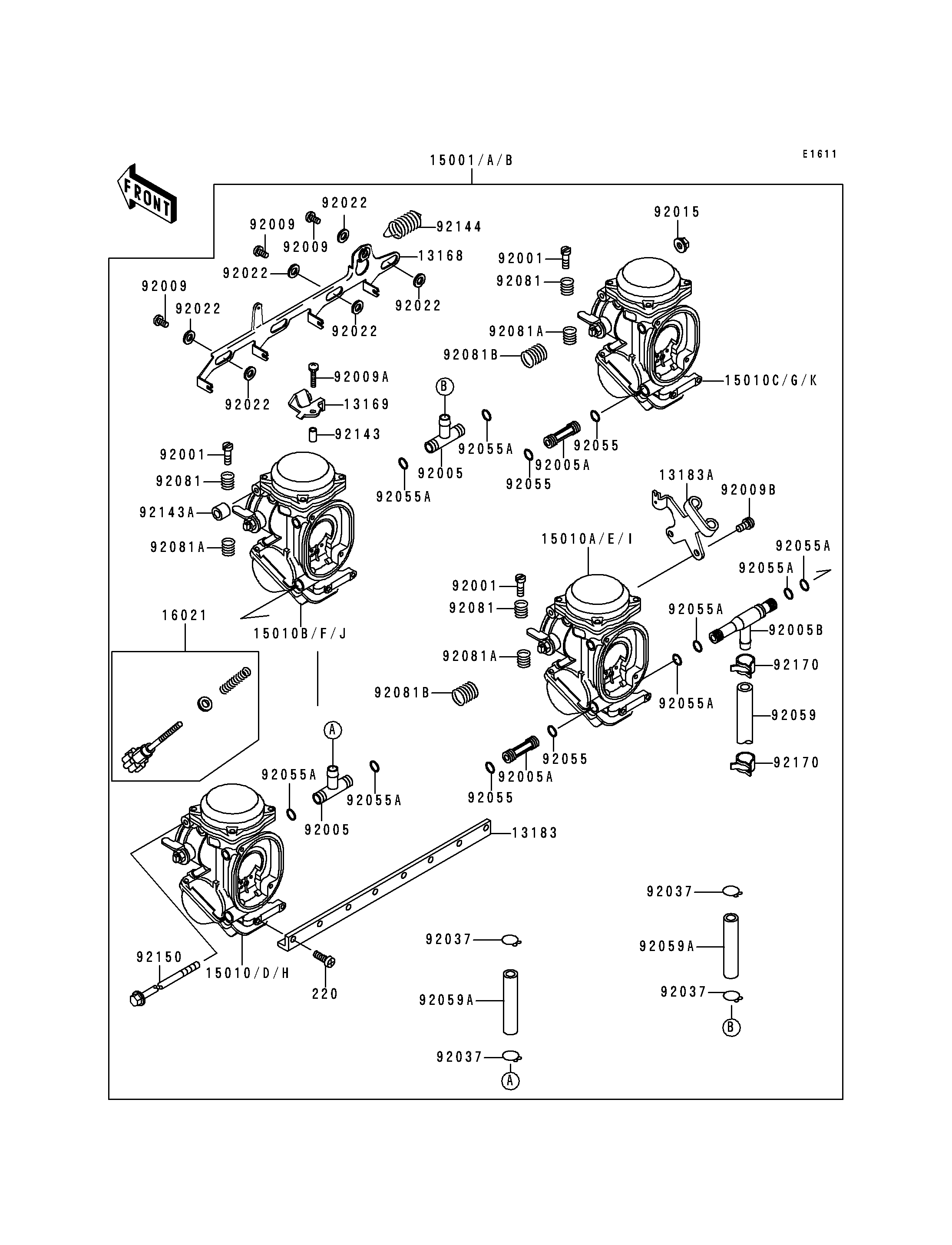

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,STARTER | 13168 | 13168-1462 | 1 | ||
| PLATE,STARTER CABLE | 13169 | 13169-1965 | 1 | ||
| PLATE,CARBURETOR STAY | 13183 | 13183-1608 | 1 | ||
| PLATE,THROTTLE CABLE | 13183A | 13183-1610 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1160 | 1 | ||
| BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
| FITTING,T-TYPE | 92005 | 92005-1125 | 2 | ||
| FITTING | 92005A | 92005-1157 | 2 | ||
| FITTING,T-TYPE | 92005B | 92005-1214 | 1 | ||
| SCREW | 92009 | 92009-1262 | 3 | ||
| SCREW,4X18 | 92009A | 92009-1446 | 1 | ||
| SCREW | 92009B | 92009-1597 | 1 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
| WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
| CLAMP,TUBE | 92037 | 92037-1531 | 4 | ||
| RING-O | 92055 | 92055-1004 | 4 | ||
| RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | ||
| TUBE,7.3X12.5X240 | 92059 | 92059-1487 | 1 | ||
| TUBE,7X11X45 | 92059A | 92059-1738 | 2 | ||
| SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 3 | ||
| SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 3 | ||
| SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 2 | ||
| COLLAR,4X5.2X9.6 | 92143 | 92143-1265 | 1 | ||
| COLLAR | 92143A | 92143-1438 | 1 | ||
| SPRING,STATER LEVER | 92144 | 92144-1540 | 1 | ||
| BOLT | 92150 | 92150-1416 | 1 | ||
| CLAMP,TUBE | 92170 | 92170-1051 | 2 | ||
| CARBURETOR-ASSY | 15001 | 15001-1797 | 1 | US | |
| CARBURETOR-ASSY | 15001A | 15001-1821 | 1 | CN | |
| CARBURETOR-ASSY | 15001B | 15001-1823 | 1 | CA | |
| CARBURETOR,LH,OUTSIDE | 15010 | 15010-1537 | 1 | US | |
| CARBURETOR,LH,INSIDE | 15010A | 15010-1538 | 1 | US | |
| CARBURETOR,RH,INSIDE | 15010B | 15010-1539 | 1 | US | |
| CARBURETOR,RH,OUTSIDE | 15010C | 15010-1540 | 1 | US | |
| CARBURETOR,LH,OUTSIDE | 15010D | 15010-1549 | 1 | CN | |
| CARBURETOR,LH,INSIDE | 15010E | 15010-1550 | 1 | CN | |
| CARBURETOR,RH,INSIDE | 15010F | 15010-1551 | 1 | CN | |
| CARBURETOR,RH,OUTSIDE | 15010G | 15010-1552 | 1 | CN | |
| CARBURETOR,LH,OUTSIDE | 15010H | 15010-1557 | 1 | CA | |
| CARBURETOR,LH,INSIDE | 15010I | 15010-1558 | 1 | CA | |
| CARBURETOR,RH,INSIDE | 15010J | 15010-1559 | 1 | CA | |
| CARBURETOR,RH,OUTSIDE | 15010K | 15010-1560 | 1 | CA |
| LEVER,STARTER | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,STARTER CABLE | |
| REF # | 13169 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR STAY | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,THROTTLE CABLE | |
| REF # | 13183A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,THROTTLE ADJUST | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X18 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X11X0.8,POLYACETAL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O,FUEL FITTING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| TUBE,7.3X12.5X240 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,7X11X45 | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST UPP | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST LWR | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST CNT | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,4X5.2X9.6 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,STATER LEVER | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15010B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15010C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15010D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15010E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15010F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15010G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15010H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15010I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15010J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15010K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
