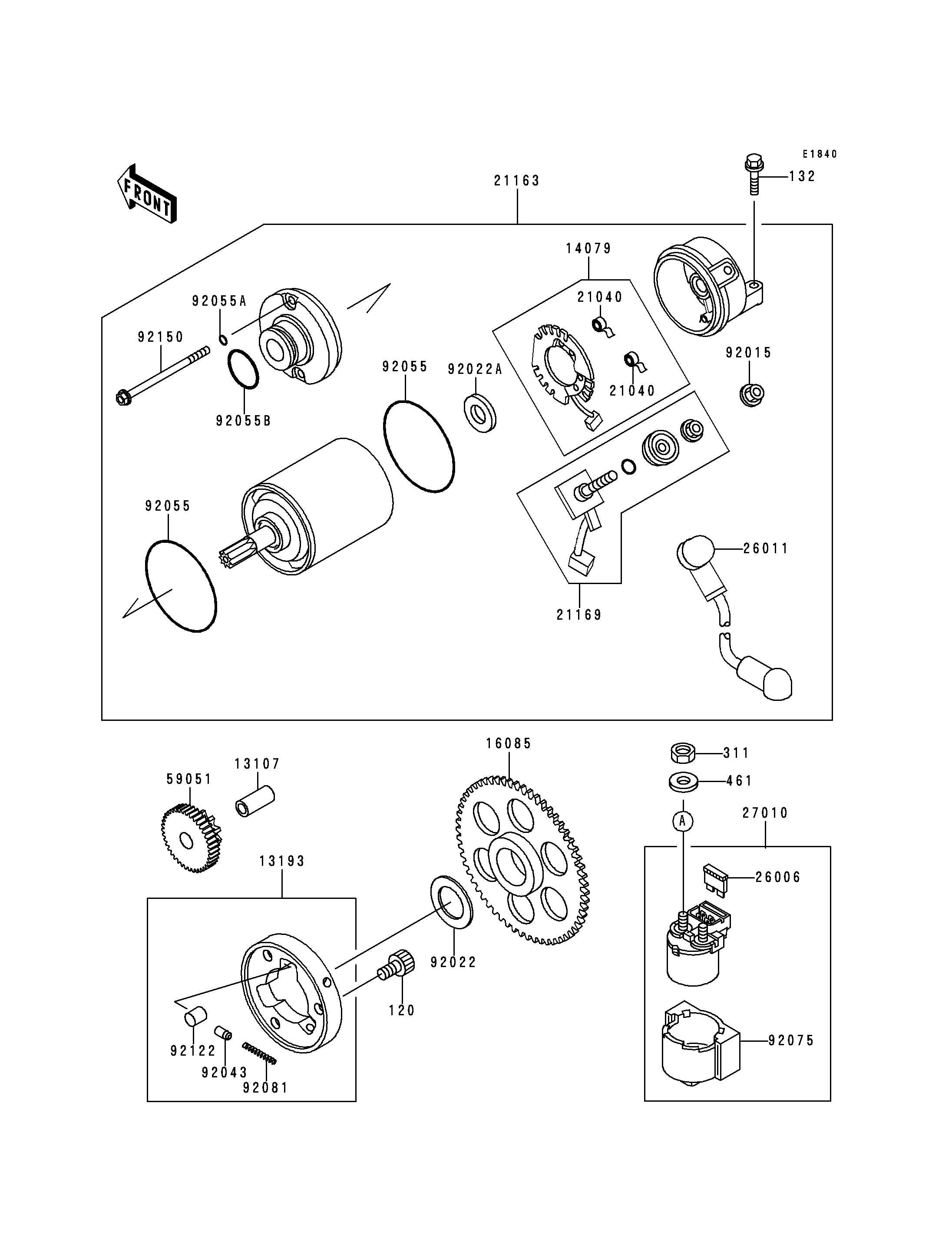

1994 Ninja® ZX™-6 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
120
132
311
461
13107
13193
14079
16085
21040
21040
21163
21169
26006
26011
27010
59051
92015
92022
92022A
92043
92055
92055
92055A
92055B
92075
92081
92122
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X14 120 120P0814 3
BOLT-FLANGED-SMALL,6X25 132 132H0625 2
NUT-HEX 311 311H0600 2
WASHER-SPRING 461 461L0600 2
SHAFT,7.8X12X26.5 13107 13107-1176 1
CLUTCH-ASSY-ONEWAY 13193 13193-1002 1
HOLDER-ASSY,CARBON BRUSH 14079 14079-1082 1
GEAR,ONEWAY CLUTCH 16085 16085-1224 1
SPRING-BRUSH 21040 21040-1051 2
STARTER-ELECTRIC 21163 21163-1211 1
TERMINAL,STARTER 21169 21169-1058 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1576 1
SWITCH,MAGNETIC 27010 27010-1213 1
GEAR-SPUR,IDLE 59051 59051-1232 1
NUT 92015 92015-1623 1
WASHER,25.5X38X1 92022 92022-145 1
WASHER 92022A 92022-2200 1
PIN 92043 92043-132 3
RING-O,62MM 92055 92055-1260 2
RING-O,4.5MM 92055A 92055-1261 2
RING-O,24.4MM 92055B 92055-1262 1
DAMPER,MAGNETIC SWITCH 92075 92075-1863 1
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
BOLT 92150 92150-1237 2
