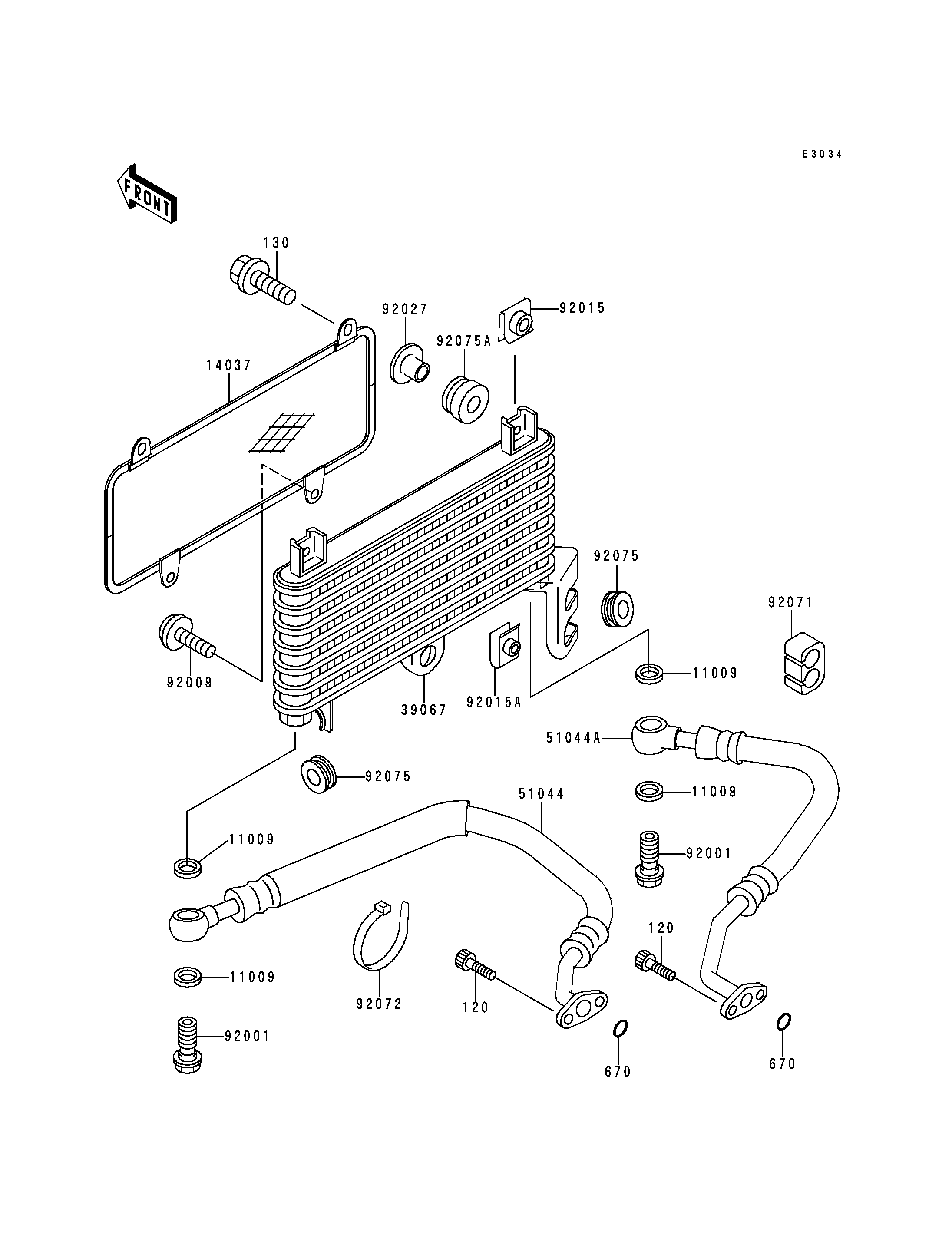

1994 Ninja® ZX™-6 - Oil Cooler

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
670
670
11009
11009
11009
11009
14037
39067
51044
51044A
92001
92001
92009
92015
92015A
92027
92071
92072
92075
92075
92075A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16,BLACK 120 120S0616 4
BOLT-FLANGED,6X25 130 130J0625 3
O RING,10MM 670 670B2010 2
GASKET,14X19.5X1.4 11009 11009-1461 4
SCREEN,OIL COOLER 14037 14037-1174 1
COOLER-OIL 39067 39067-1061 1
TUBE-ASSY,LH 51044 51044-1157 1
TUBE-ASSY,RH 51044A 51044-1158 1
BOLT,14X28.5 92001 92001-1930 2
SCREW,TAPPING,6MM 92009 92009-1261 2
NUT 92015 92015-1487 2
NUT,6MM 92015A 92015-1758 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 3
GROMMET 92071 92071-1216 1
BAND,L=185 92072 92072-1195 1
DAMPER,OIL COOLER 92075 92075-1942 2
DAMPER 92075A 92075-277 3
