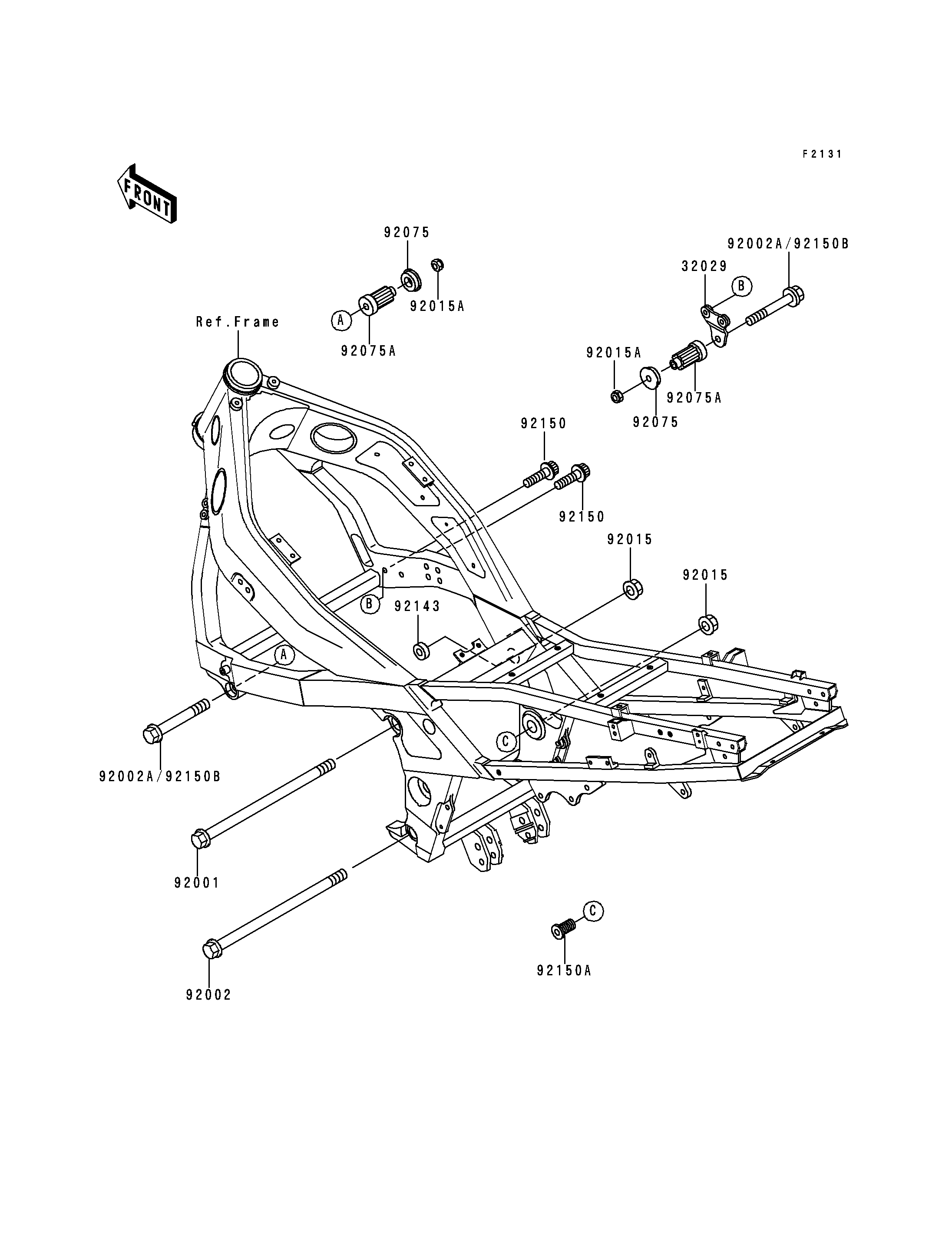

1994 Ninja® ZX™-6 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
32029
92001
92002
92015
92015
92015A
92015A
92075
92075
92075A
92075A
92143
92150
92150
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,FR,RH 32029 32029-1888 1
BOLT,FLANGED,10X145 92001 92001-1835 1
BOLT,FLANGED,10X220 92002 92002-1197 1
NUT,FLANGED,10MM 92015 92015-1180 2
NUT,LOCK,10MM,BLACK 92015A 92015-1189 2
DAMPER,ENGINE MOUNT,SIDE 92075 92075-1274 2
DAMPER,ENGINE MOUNT,MAIN 92075A 92075-1739 2
COLLAR,ENGINE MOUNT 92143 92143-1664 1
BOLT,SOCKET,8X20 92150 92150-1155 2
BOLT,20X30 92150A 92150-1264 1
BOLT,FLANGED,10X87 92150B 92150-1804 2
