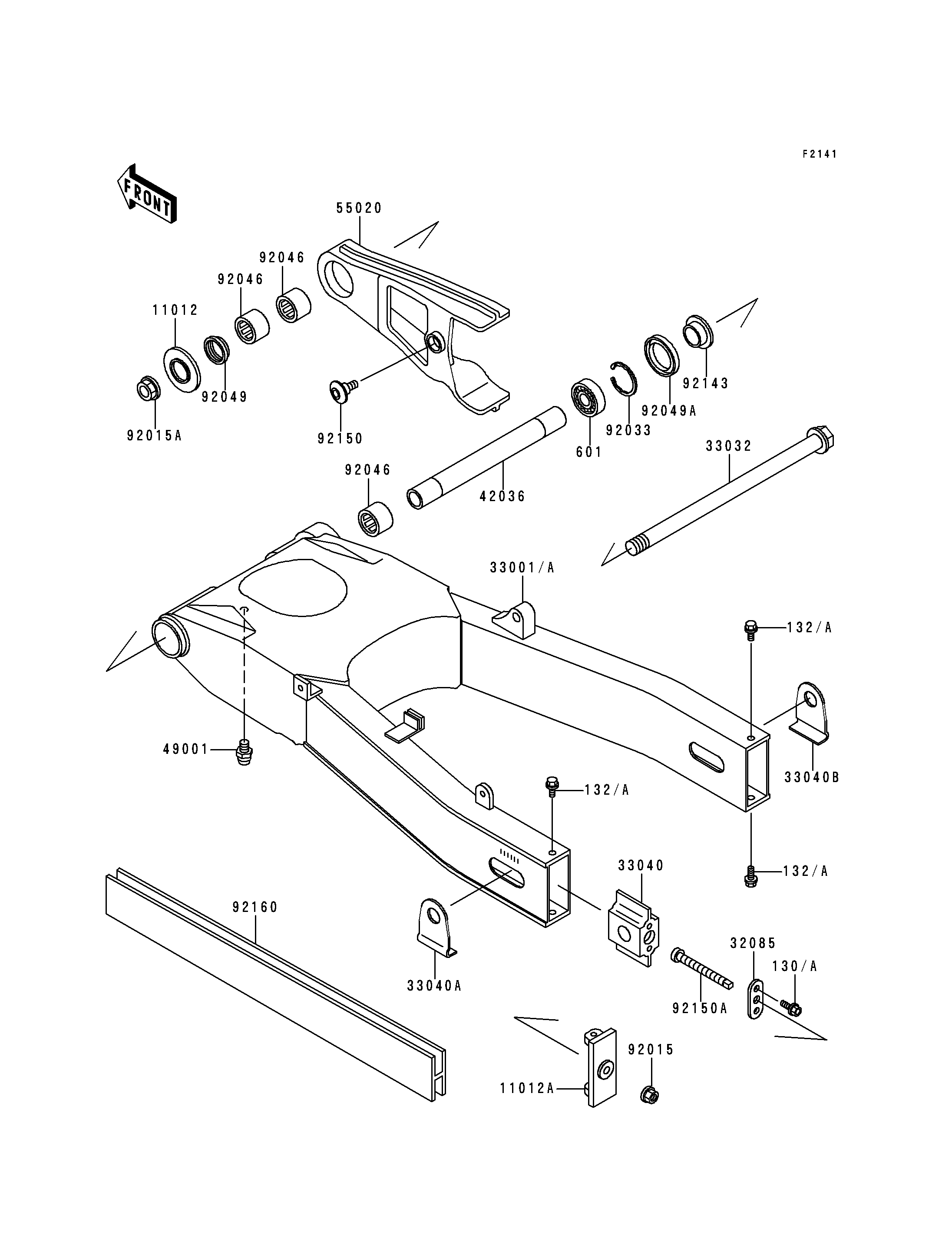

1994 Ninja® ZX™-6 - Swingarm(ZX600-E1/E2)

DOWNLOAD PDF
SELECT A NEW PART
130A
132
132
132
601
11012
11012A
32085
33032
33040
33040A
33040B
42036
49001
55020
92015
92015A
92033
92046
92046
92046
92049
92049A
92143
92150
92150A
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130A 130H0614 4
BOLT-FLANGED-SMALL 132 132E0612 4
BEARING-BALL,#6004 601 601A6004 1
CAP 11012 11012-1658 1
CAP,CHAIN ADJUSTER 11012A 11012-1704 2
STOPPER,CHAIN ADJUSTER 32085 32085-1351 2
SHAFT-SWING ARM 33032 33032-1165 1
ADJUSTER-CHAIN,INSIDE 33040 33040-1133 2
ADJUSTER-CHAIN,OUTSIDE,LH 33040A 33040-1134 1
ADJUSTER-CHAIN,OUTSIDE,RH 33040B 33040-1135 1
SLEEVE,SWING ARM,L=213 42036 42036-1283 1
NIPPLE-GREASE 49001 49001-1051 1
GUARD,CHAIN 55020 55020-1461 1
NUT,8MM 92015 92015-1143 2
NUT,FLANGED,20MM 92015A 92015-1724 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-NEEDLE,BM2817 92046 92046-1111 3
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,MHSA25 42 6 92049A 92049-1314 1
COLLAR,SWING ARM,L=12.5 92143 92143-1227 1
BOLT,SOCKET,6MM 92150 92150-1154 1
BOLT,CHAIN ADJUSTER 92150A 92150-1285 2
DAMPER,SWING ARM 92160 92160-1442 2
ARM-COMP-SWING,SILVER NO.35 33001 33001-1418-TX 1 CN
ARM-COMP-SWING,SILVER NO.35 33001A 33001-1418-VZ 1 CAUS
