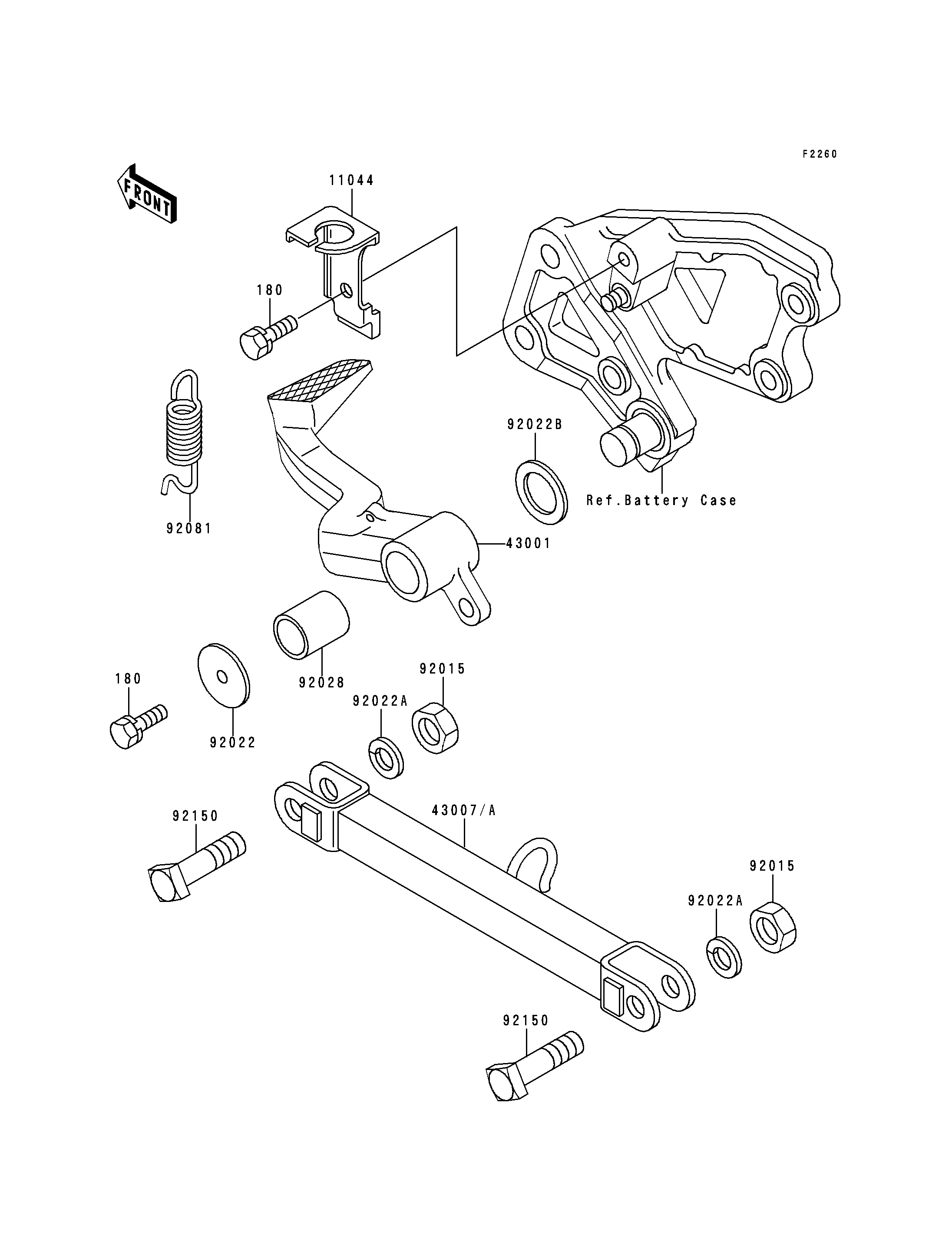

1994 Ninja® ZX-6 - Brake Pedal/Torque Link

180
180
11044
43001
92015
92015
92022
92022A
92022A
92022B
92028
92081
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180H0614 2
BRACKET,RR BRAKE SWITCH 11044 11044-1107 1
LEVER-BRAKE,PEDAL 43001 43001-1224 1
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,7X28X1.6 92022 92022-1282 1
WASHER,SPRING,10MM 92022A 92022-1540 2
WASHER,15.3X24X1 92022B 92022-326 1
BUSHING,BRAKE PEDAL 92028 92028-1282 1
SPRING,BRAKE PEDAL 92081 92081-1833 1
BOLT,10X37 92150 92150-1901 2
ROD-TORQUE,SILVER NO.35 43007 43007-1170-TX 1 CN
ROD-TORQUE,SILVER NO.35 43007A 43007-1170-VZ 1 CAUS
