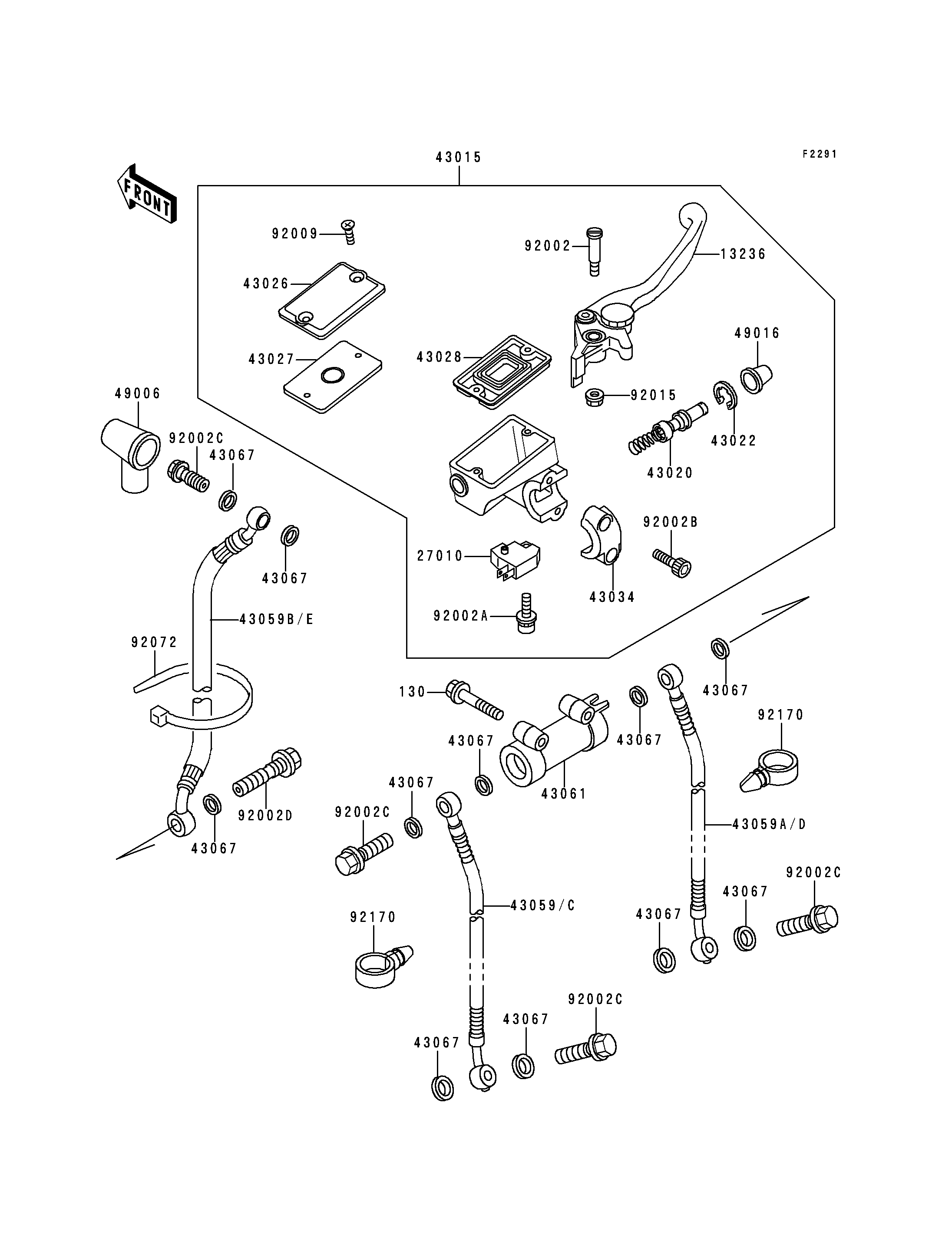

1994 Ninja® ZX™-6 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
13236
27010
43015
43020
43022
43026
43027
43028
43034
43059C
43059D
43059E
43061
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
43067
49006
49016
92002
92002A
92002B
92002C
92002C
92002C
92002C
92002D
92009
92015
92072
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X35 130 130J0635 2
LEVER-COMP,FRONT BRAKE 13236 13236-1185 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1500 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1076 1
PLATE-DIAPHRAGM 43027 43027-1055 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1058 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1053 1
HOSE-BRAKE,FR 43059C 43059-1820 1
HOSE-BRAKE,FR 43059D 43059-1821 1
HOSE-BRAKE,FR 43059E 43059-1822 1
JOINT-BRAKE 43061 43061-1002 1
WASHER,10.5X15X1.5 43067 43067-001 11
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,SOCKET,6X20,BLACK 92002B 92002-1324 2
BOLT,OIL,L=23 92002C 92002-1888 4
BOLT,OIL,L=37 92002D 92002-1909 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BAND,L=250 92072 92072-1237 2
CLAMP 92170 92170-1067 2
