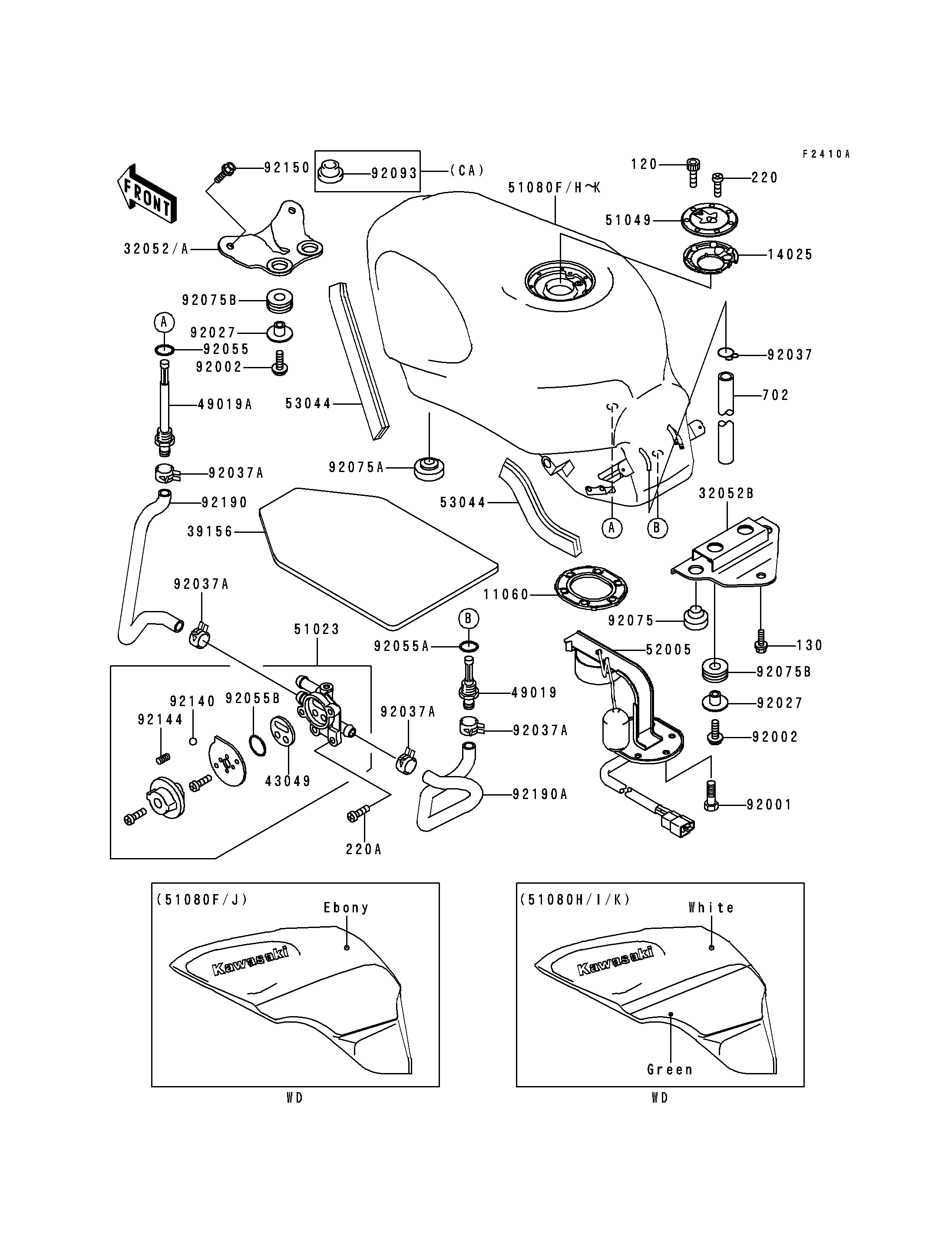

1994 Ninja® ZX™-6 - Fuel Tank(ZX600-E2)
11060
11060
11060
14025
14025
14025
32052B
32052B
32052B
39156
39156
39156
43049
43049
43049
49019
49019
49019
49019A
49019A
49019A
51023
51023
51023
51049
51049
51049
52005
52005
52005
53044
53044
53044
53044
53044
53044
92001
92001
92001
120
120
120
130
130
130
220
220
220
220A
220A
220A
702
702
702
92002
92002
92002
92002
92002
92002
92027
92027
92027
92027
92027
92027
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92075B
92075B
92075B
92140
92140
92140
92144
92144
92144
92150
92150
92150
92190
92190
92190
92190A
92190A
92190A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL GAUGE | 11060 | 11060-1337 | 1 | ||
| COVER,TANK CAP | 14025 | 14025-1913 | 1 | ||
| BRACKET-TANK,RR | 32052B | 32052-1363 | 1 | ||
| PAD,FUEL TANK | 39156 | 39156-1361 | 1 | ||
| PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1070 | 1 | ||
| FILTER-FUEL,"ON" | 49019A | 49019-1071 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1192 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1091 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1105 | 1 | ||
| TRIM | 53044 | 53044-1137 | 3 | ||
| BOLT,FUEL GAUGE | 92001 | 92001-1069 | 6 | ||
| BOLT-SOCKET | 120 | 120S0512 | 7 | ||
| BOLT-FLANGED,8X20 | 130 | 130J0820 | 1 | ||
| SCREW-PAN-CROS | 220 | 220C0508 | 1 | ||
| SCREW-PAN-CROS,6X8 | 220A | 220C0608 | 2 | ||
| TUBE-RUBBER,7X10X600 | 702 | 702A07600 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 4 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
| CLAMP | 92037A | 92037-1181 | 4 | ||
| RING-O,ID=9.5 | 92055 | 92055-1386 | 1 | ||
| RING-O,11.5X1.5 | 92055A | 92055-1387 | 1 | ||
| RING-O,TAP LEVER | 92055B | 92055-1419 | 1 | ||
| DAMPER | 92075 | 92075-015 | 2 | ||
| DAMPER,SIDE STAND | 92075A | 92075-157 | 2 | ||
| DAMPER | 92075B | 92075-1690 | 4 | ||
| BALL,STAINLESS,5/32" | 92140 | 92140-1051 | 1 | ||
| SPRING,FUEL TAP KNOB | 92144 | 92144-1212 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 2 | ||
| TUBE,TAP-FILTER | 92190 | 92190-1332 | 1 | ||
| TUBE,FUEL,RES | 92190A | 92190-1333 | 1 | ||
| BRACKET-TANK,FR,SILVER NO.35 | 32052 | 32052-1362-TX | 1 | CN | |
| BRACKET-TANK,FR,SILVER NO.35 | 32052A | 32052-1362-VZ | 1 | CAUS | |
| TANK-COMP-FUEL,EBONY | 51080F | 51080-5068-H8 | 1 | CNUS | |
| TANK-COMP-FUEL,GREEN/WHITE | 51080H | 51080-5070-CK | 1 | CN | |
| TANK-COMP-FUEL,GREEN/WHITE | 51080I | 51080-5070-87 | 1 | US | |
| TANK-COMP-FUEL,EBONY | 51080J | 51080-5073-H8 | 1 | CA | |
| TANK-COMP-FUEL,GREEN/WHITE | 51080K | 51080-5074-87 | 1 | CA | |
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA |
